Diamond Grinding Wheel for PCB Micro Tools Precision Grinding

Grinding type: slotting, step grinding, cylindrical grinding, end grinding

Bond: vitrified bond, resin bond

Wheel shape: 1A1, 3A1, 14A1, 1V1, 11V9, 12V9, 4B1

Abrasive types: diamond, CBN

Supporting grinder: Makino CNC grinder

Provide PCB micro-drill diamond grinding wheel sharpening and shaping


Product Details

PCB micro drill

There are many products have an extremely high demand for drilling micro holes , such as fuel injection nozzles, cameras, mobile phones, medical instruments, micro dies and molds, computers, watches, bearings, especially printed circuit boards (PCB). So micro drill bit with higher accuracy,the flute of drill plays a significant role in its cutting performance.

PCB micro drill are used primarily in CNC machines for drilling small precision holes for printed circuit boards, medical and aerospace,etc industries.

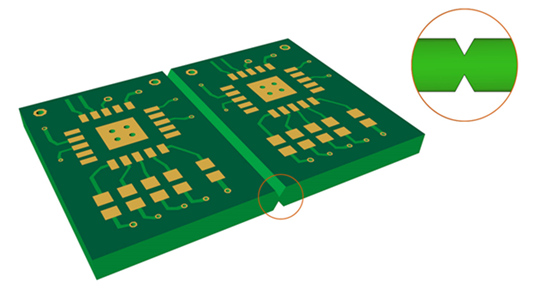

PCB

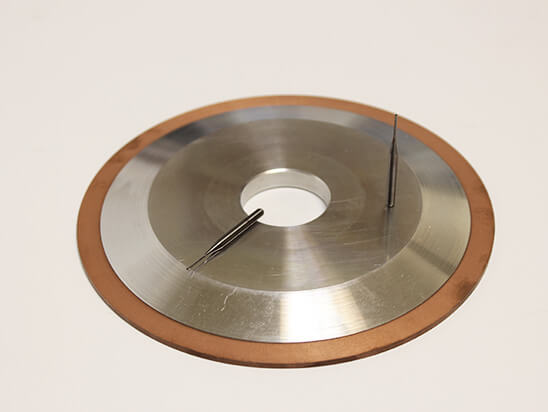

Application of diamond grinding wheel for micro drills grinding
PCB micro dril grinding wheel is mainly used for small diameter tungsten, stainless steel or hss drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.
Processing objects: solid carbide, stainless steel welding type PCB processing micro-milling cutters, drills grinding.

* Moresuperhard can provide diamond tools for PCB micro drill such as diamond cut off wheel (for cutting bar material),cylindrical grinding bar(rough grinding wheel), peel grinding wheel and diamond fluting wheel for slotting PCB micro drill.

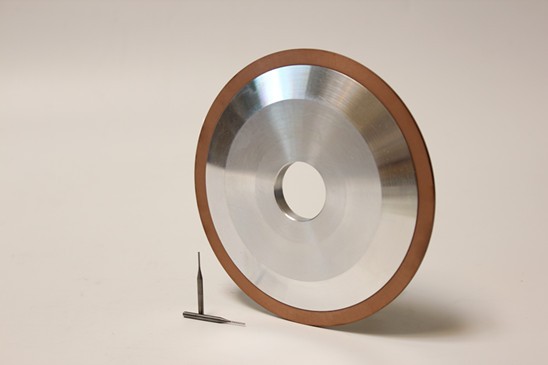

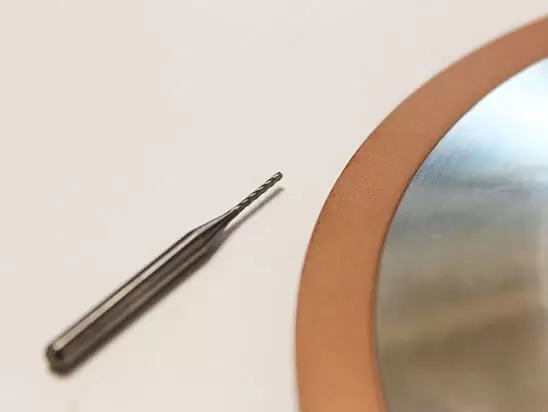

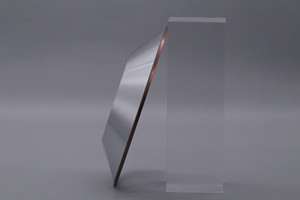

PCB micro drill grinding wheel PCB micro drill grinding wheel

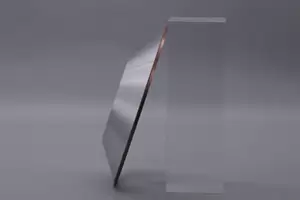

 grinding wheel for PCB micro drill

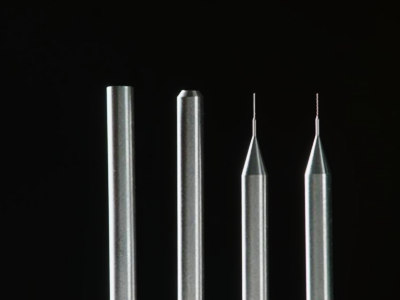

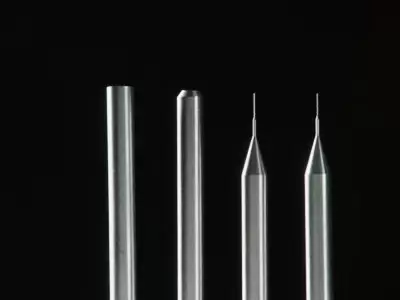

PCB micro drill manufacture process:

1. Cut off of Bar
2. First step:Rough grinding
3. Second step: Peel grinding
4. Third step: Slotting

PCB micro drill

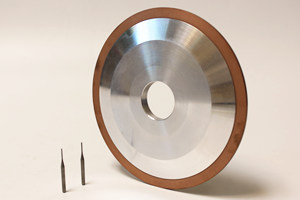

Advantages of resin diamond wheel for micro drills
1. Good edge stability
2. High cutting efficiency
3. Minimal reject-part rates
4. Good round tool quality

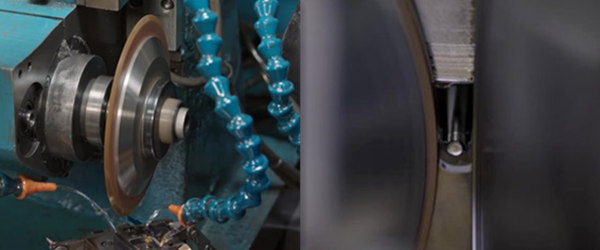

Suitable Grinding Machine:
Startech, Kimer K360, Rollomatic, SAACKE, HAWEMA, Walter Helitronic, ANCA, Schneeberger Norma, DMG MORI, WALTER, EWAG and other all CNC tool grinding machines.

Grinding Wheel dressing
General sharpening: use white corundum
General shaping: use green silicon carbide
Drawing&Specification
Type D(mm) T(mm) H(mm) W(mm) X(mm)

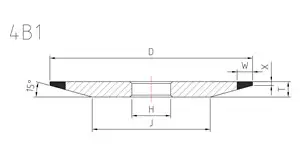

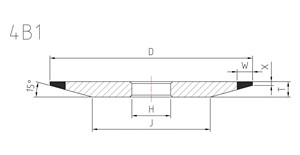

4b1 grinding wheel

150



24



20,31.75



4,6



2,3



200



20



20,31.75



6



3,6



250



20



20,31.75



8



6,8

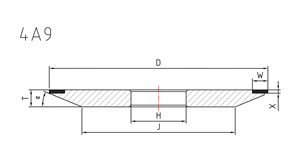

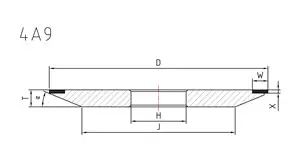

4a9 grinding wheel 80 6 20,25,

31.75,40

10 6
100 8 20,31.75 10 6
150 8 20,31.75 10 6

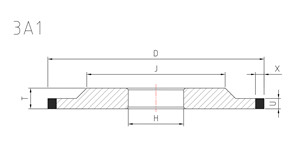

Type D(mm) T(mm) H(mm) X(mm) U(mm)

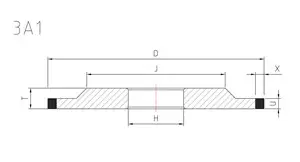

3a1 grinding wheel 100 6 20,31.75 6 1,4
125 8 20,31.75 6,8 4,1.5
150 6,8 20,31.75 6,8 4,2
Other sizes can be customized.
