CBN Wheel for Woodturner
cbn wheel factory

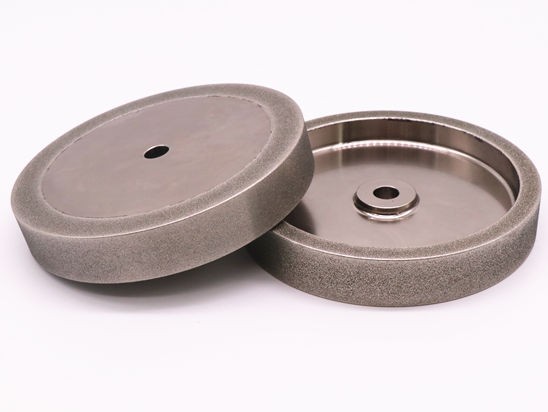

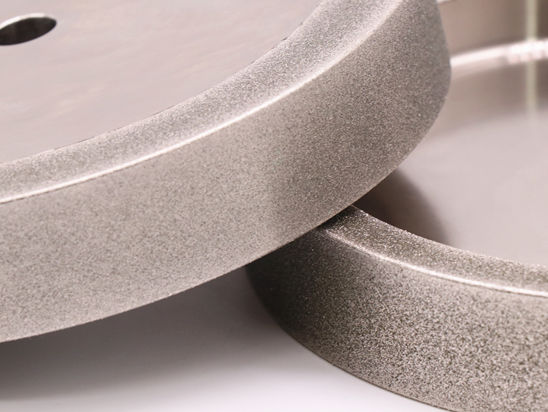

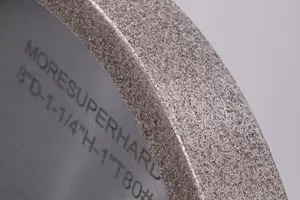

Aluminum Core CBN Wheel for Woodturner

Applications of cbn wheel bench grinder: mainly used for sharpening woodturning tools (high speed steel HSS)

Advantages of woodturner CBN wheel
1. The weigh lighter than steel body
2. Fast and cool cutting action without coolant
3. Aluminum suitable for polishing
4. No need dressing or turning


Product Details

Applications of CBN Bench Grinder Wheel: CBN (cubic boron nitride) grinding wheels are used for sharpening woodturning tools (high speed steel HSS).The cbn grinding wheels are installed on bench grinder

* Note: the small MOQ (2 pieces) and fast delivery time (5- 12 days). There will be a big discount for large orders

cbn wheel for woodturner cbn wheel for woodturner

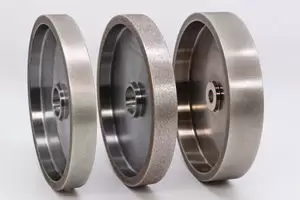

Body type and introduction of CBN bench grinder wheel:

Body Type Introduction
Steel Body

steel body cbn wheel



1. Steel body has the best rigidity.

2. Steel has a higher melting point than aluminum and is used for dry grinding.

3. The weight is the heaviest of the three.

Aluminum Body

aluminum body cbn wheel

1. The weigh lighter than steel body.

2. Aluminum has a low melting point, so need to be grinding with water

3. Aluminum suitable for polishing.

Plastic Body

plastic body cbn wheels



1. The weight is the lightest of the three. And the freight is relatively low.

2. The rotational speed should be faster than the steel body when use.

3. Plastic body has the advantages of light weight and low price.

Drawing&Specification

Size of Steel body and aluminum body electroplated CBN grinding wheel:

Diameter (inch) Arbor Hole (inch) Thickness(inch) Grit Radius Edge
6 inch 1 / 2 inch 1 inch 80#, 100#, 180#, 220#, 240#, 300#, 350#, 400#, 600#, 800#, 1200#, 1600# etc.
6 inch 1 / 2 inch 1.5 inch
6 inch 5 / 8 inch 1.5 inch
8 inch 5 / 8 inch 1 inch
8 inch 5 / 8 inch 1.5 inch
8 inch 1-1 / 4 inch 1 inch
8 inch 1-1 / 4 inch 1.5 inch
* Other sizes can be made according to customers’ requirement. Email: info@moresuperhard.com
