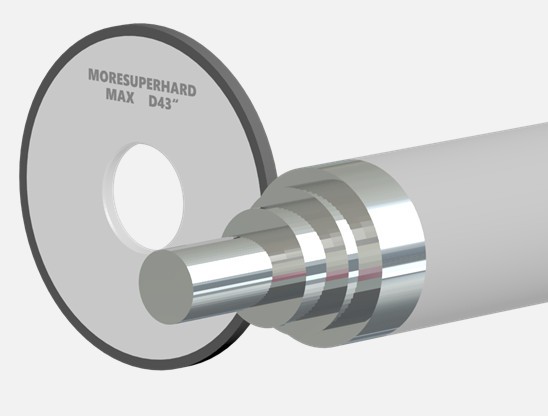

External Grinding Carbide Roll, Resin diamond grinding wheel for HVOF carbide coating
For grinding and finishing carbide roll in thermal spray coatings
Suitable for high efficiency, precision grinding of workpieces
High roundness&cylindricity of workpiece
Good consistency of dimension
Good surface finish
Product Details
Applications of OD resin bond diamond grinding wheel

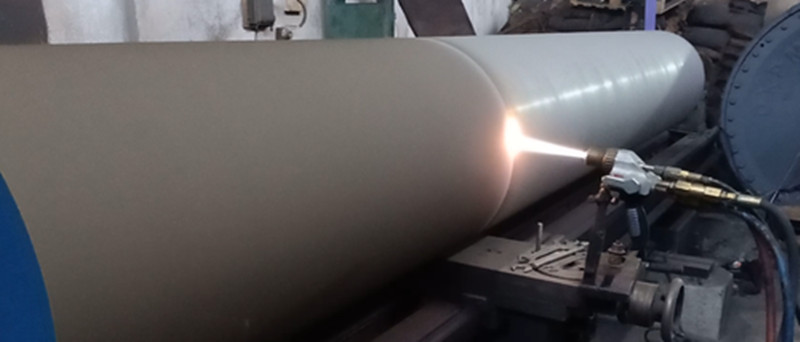

For grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.
Advantages: of resin diamond grinding wheel for carbide roll
1.Suitable for high efficiency& precision grinding of workpieces
2.High roundness&cylindricity of workpiece
3.Good consistency of dimension
4.Good surface finish

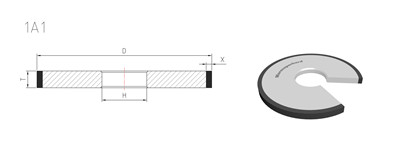

Drawing&Specification
| Type | Diameter(inches) | D(mm) | H(mm) | X(mm) | T(mm) | U(mm) |
| 1A1 | 4”
|
100 | 20 | 6 | 12 | |
| 1A1 | 100 | 20 | 10 | 10 | ||
| 1A1 | 100 | 20 | 10 | 12 | ||
| 1A1 | 100 | 25.4 | 10 | 20 | ||
| 1A1 | 8” | 200 | 76.2 | 10 | 25 | |
| 1A1 | 12”
|
300 | 76.2 | 10 | 25 | |
| 1A1 | 300 | 127 | 10 | 25,30,40 | ||
| 1A1 | 300 | 127 | 25 | 50 | ||
| 14A1 | 300 | 127 | 6,10 | 40 | 10 | |
| 14A1 | 300 | 127 | 10 | 40 | 15 | |
| 1A1 | 16”
|
400 | 127 | 10,25 | 25 | |
| 1A1 | 400 | 127 | 10 | 30,40,50 | ||
| 1A1 | 20”
|
500 | 203 | 10 | 15,20 | |
| 1A1 | 500 | 254 | 38 | 25,50 | ||
| 1A1 | 24”
|
600 | 254 | 25 | 25 | |
| 1A1 | 600 | 304.8 | 5 | 40 | ||
| 1A1 | 600 | 203 | 25 | 50 | ||
| 1A1 | 600 | 304.8 | 10 | 50 | ||
| 1A1 | 30” | 750 | 304.8 | 10 | 40,50 | |
| 1A1 | 35.4” | 900 | 304.8,305 | 10 | 50,75 | |
| 1A1 | 36” | 914.4 | 304.8,305 | 10 | 50.8 | |
| 1A1 | 43” | 1100 | 304.8 | 10 | 50 | |
| We can also customized according to your requirements. | ||||||
