Super Hard Abrasive–Diamond

2020-10-08

MORESUPERHARD is a professional manufacturer that processes the world’s hardest material-diamond into tools. Products (mainly used for drilling, grinding, polishing, cutting, etc.) are used in many fields such as automobiles, electronics, semiconductors, conveying machinery, machinery, bearings, knives, molds, glass, ceramics, civil engineering, mining, stone, construction, etc. Is widely used. We produce comprehensive professional tools for most diamond and CBN (boron nitride) products, such as grinding wheels, dressers, blades, band saw blades,drills, etc.

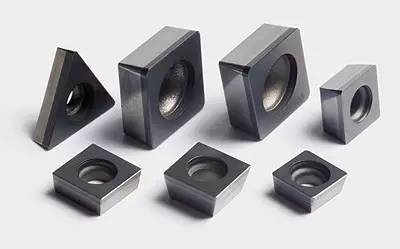

cutting tools cutting tools

Diamond is the hardest material on the earth today. Alumina has the longest history in the grinding industry. Its good dressability can greatly increase its life and productivity by one hundred times that of alumina abrasives.





Characteristic:

application Mainly for grinding high hardness and non-ferrous materials (such as: cemented carbide, ceramics, etc.)
hardness KNOOP HARDNESS 7000
Thermal sensitivity 600°C
Reactivity Ferrous metals
Be applicable: Grinding polycrystalline blades and cemented carbide, etc.

Grinding of ceramic crystals, non-ferrous materials, etc.



TOUGHNESS TYPE GRAINRANEN FEATURE
  high MDZ 60~400 Highest strength, suitable for poor equipment (metal connecting abrasive tools)
MDY

MDP



60~12000

60~1000

Neutral stroke, suitable for grinding ceramics, glass, etc. (MDP is used in electric grinding tools)
 low MD

MDC

BZC

60~12000

60~3000

60~2200

High resistance, suitable for grinding cemented carbide, etc. (MDC is plated)



Sand mesh

In addition to the standard, according to the American standard, the grit size ranges from 60 to 325, and the fine powder grade ranges from 400 to 14000. Please refer to the following table.



number 60 80 100 120 140 170 200 230 270 375
Sand mesh 60/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400
Average (μm) 250 177 149 125 105 88 74 63 50 44

Micronized powder level:

number 400 500 600 800 1000 1200 1400 2200 3000 5000 8000 12000 14000
Average (μm) 40-60 38-54 22-36 20-30 15-25 10-20 10-15 5-10 4-8 3-6 2-4 1-3 0-2
