CBN Wheel For Internal Grinding
Application of CBN Internal Grinding Wheel: used for internal grinding of hydraulic tappets, universal joint, stator and rotor .
Body Type: ID Wheel with Shank, ID Wheel without Shank
Model Type: 1A8, 1A1W, 1A1
Moresuperhard can offer: abrasive internal grinding wheel (PA, SG), CBN internal grinding wheel, Diamond internal grinding wheel
High precision grinding, long life , good consistency of workpiece size
Product Details
Applications of CBN Internal Grinding Wheel
Grinding of con-rods ends in the auto industry
Grinding of hydraulic and pneumatic cylinders
CVJ ball-cage, inner and outer raceway
Hydraulic tappet of automobile motor
Grinding of bores of inner rings
Grinding of gears bores, collects
Pump stator of automobile, grinding of gun barrels
Roller, cylinder, flange cover of air-condition compressor
Grinding of inner and outer faces of ball & roller bearings
Two types of CBN wheel for inner grinding: ID Wheel with Shank, ID Wheel without Shank

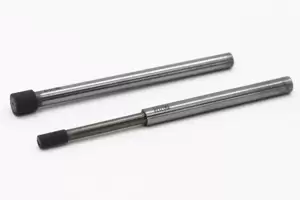

With Shank

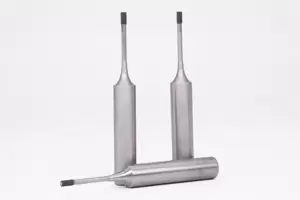

Without Shank
Features of CBN internal grinding wheel:
* High grinding efficiency
* High grinding precision
* Good consistency of workpiece size
* Long service life of grinding wheel
Drawing&Specification
| Model | Diameter (mm) | Bore Diameter (mm) | Height (mm) |
| 1A8 | 4 | 1.5 | 5 |
| 1A8 | 6 | 2 | 8 |
| 1A8 | 12 | 4 | 8 |
| 1A8 | 20 | 6 8 | 10 |
| 1A8 | 25 | 8 13 | 20 |
| 1A8 | 30 | 10 | 15 |
| 1A8 | 35 | 12 15 | 12 |
| 1A8 | 40 | 15 | 15 |
| 1A8 | 40 | 15 | 25 |
| 1A8 | 45 | 30 | 50 |
| 1A1W | 17.5 | 11 | 5.5 |
| * Other size can be made according to customers requirements. | |||
