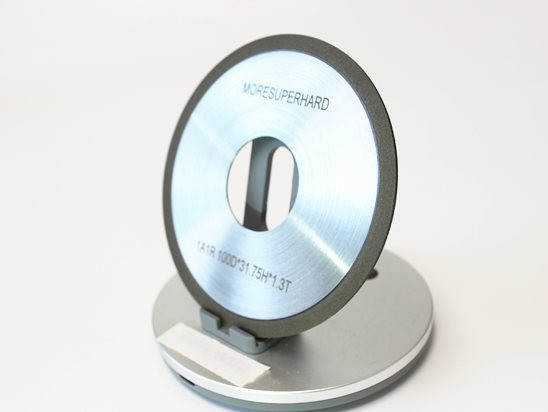

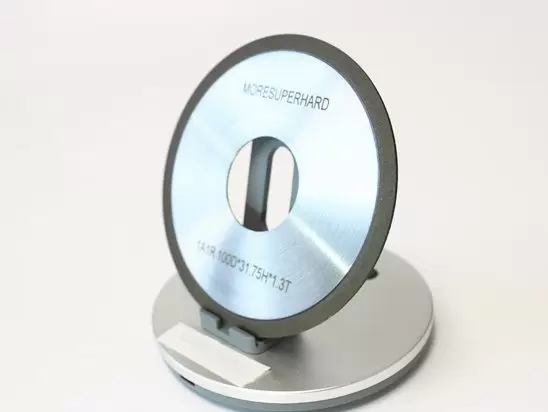

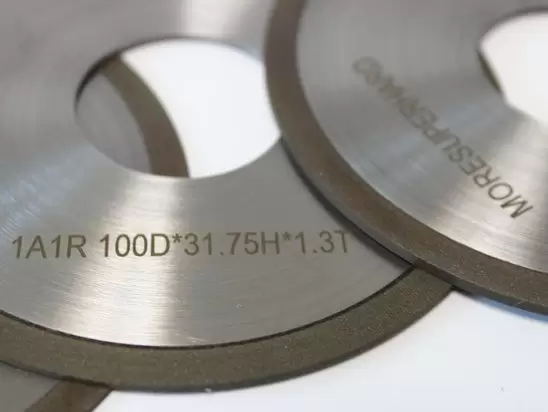

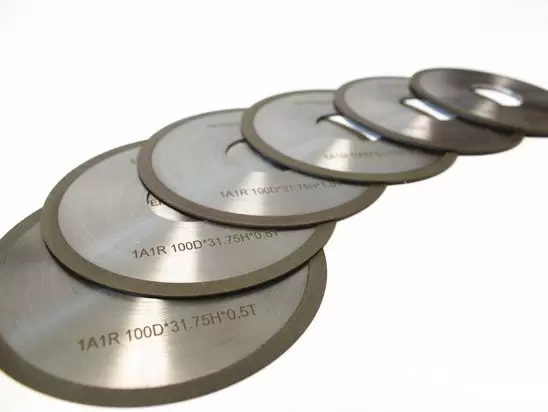

Diamond Cut-off Grinding Wheels for Tungsten Carbide

Diamond Cut-Off Wheels are for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass etc.


CBN Cut-Off Wheels are for cutting HSS, Hardened Steel and other ferrous material.

The models of cutting wheels with steel plate divide into 1A1 type and 1A1R type.

Product Details

Description:

Resin cutoff wheels can self-sharpen and cut sharply.The work quality can be improved due to the elastic resin bond.  The spec and dimension of the high precision cutting wheels with steel plate

The models of cutting wheels with steel plate divide into 1A1 type and 1A1R type.

Application:

Diamond Cut-Off Wheels are for cutting tungsten carbide, alloys, quartz, ceramics, glass, carbon fibre composites, fiber glass etc.
CBN Cut-Off Wheels are for cutting HSS, Hardened Steel and other ferrous material.

Drawing&Specification

1A1 cutting wheel1A1R cutting wheel

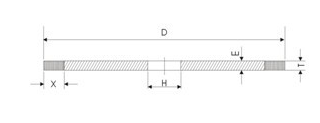

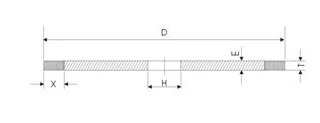

Cutting wheels of 1A1 type:

The thickness of work layer is as same as steel plate. They are mainly used for precise grooving and cutting.

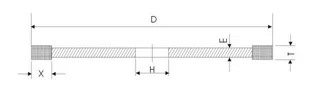

Cutting wheels of 1A1R type

The thickness of work layer is higher than the steel plate. They have advantages for removing chips and cooling.

They are mainly used for deep cutting and grooving of component.

Shape

Diameter(mm)

Thickness(mm)

H(mm)

1A1

20.0≤D≤152.4

0.08≤D≤2.0

4.0≤D≤114.3

1A1R

30.0≤D≤400.0

0.2≤D≤2.0

4.0≤D≤127.0
