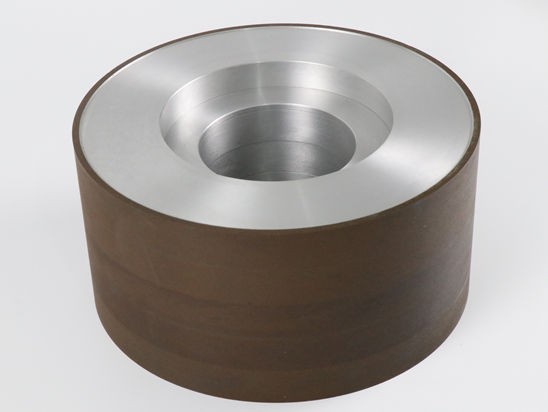

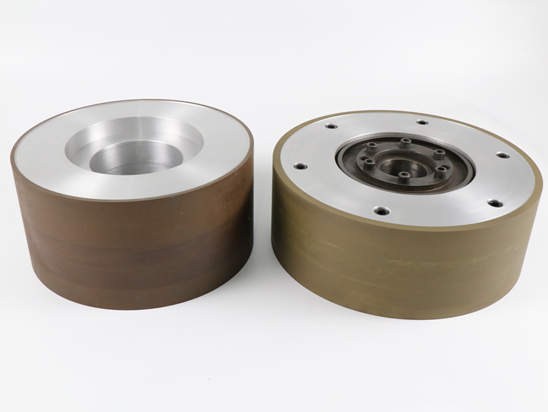

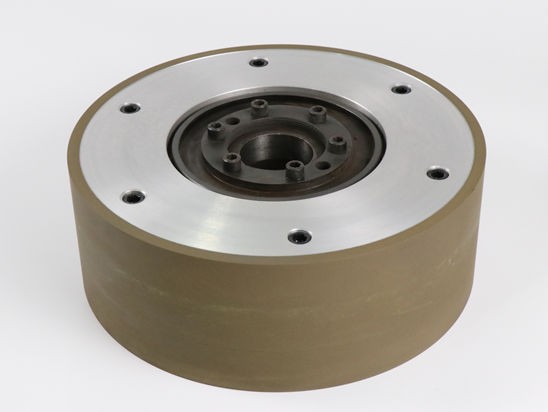

Resin bond diamond centerless grinding wheels
Diamond Centerless Grinding Wheel is used for grinding carbide, ceramics, magnetic material, stainless steel bar, PCD&PCBN compositives.
Model: 1A1 , 6A1, 9A1
Bonded Type: Resin bond, Metal bond
Round run-out of grinding wheel ≤0.02mm
Straightness ≤ 0.02 mm
Centerless Grinder Machine: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV
Product Details
Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel
Applications of resin bond diamond centerless grinding wheel
Mainly used for grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives
Advantages of resin bond diamond centerless grinding wheel
* Efficient batch external grinding
* High roundness and cylindricity of workpiece and good consistency of dimension
* Good surface finish after fine grinding
* Used for rough grinding, semi-fine grinding and fine grinding
Drawing&Specification
| Model | Profile Sketches | Universally Spec. | |
| 1A1 |  |
1A1 D*T*H*X | |
| D | 125~600 | ||
| T | 50~350 | ||
| H | 75, 127, 203 | ||
| X | 5, 10 | ||
| 6A1 |  |
6A1 D*T*H*X | |
| D | 125~600 | ||
| T | 50~350 | ||
| H | 75,127,203 | ||
| X | 5, 10 | ||
| 9A1 |  |
9A1 D*T*H*X | |
| D | 125~600 | ||
| T | 50~350 | ||
| H | 75,127,203 | ||
| X | 5, 10 | ||
| Note:We can design and produce according to customers’ requirement. | |||
