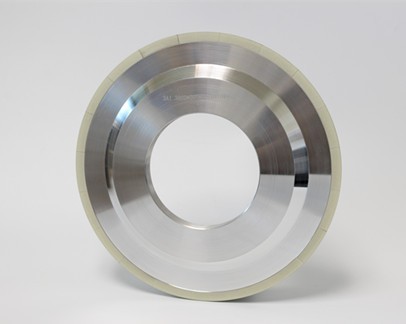

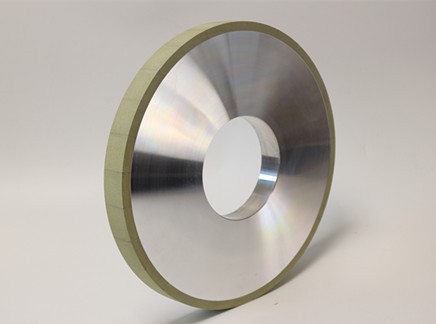

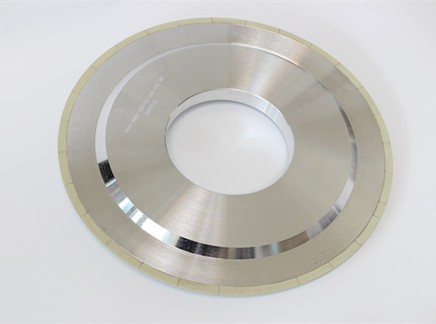

Vitrified Cylindrical Diamond Grinding Wheel for PDC Cutter
” It was very similar to 3M’s grinding wheel but our price is a little better so it makes better sense”. —–from UK client
High efficiency
Good self-sharpening
Excellent surface finish
Long service life
Product Details
Diamond cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved.

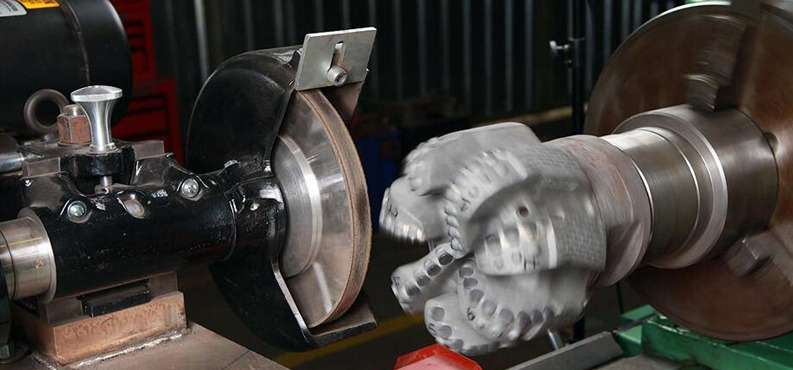

“Good news the third trial wheel performed successfully we completed four blocks with 2.5mm removal of Diamond cutters, eight grinding passes in total, the operator was more than happy with the quality of the finish”. —–from UK client
Drawing&Specification
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 |
350 | 40 | 127 | 10 |
| 400 | 40 50 | 203 | 10 | |
| 400 | 40 50 | 305 | 10 |
