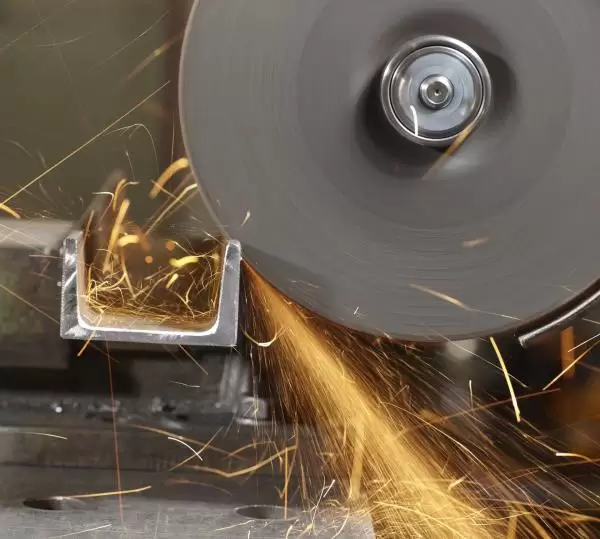

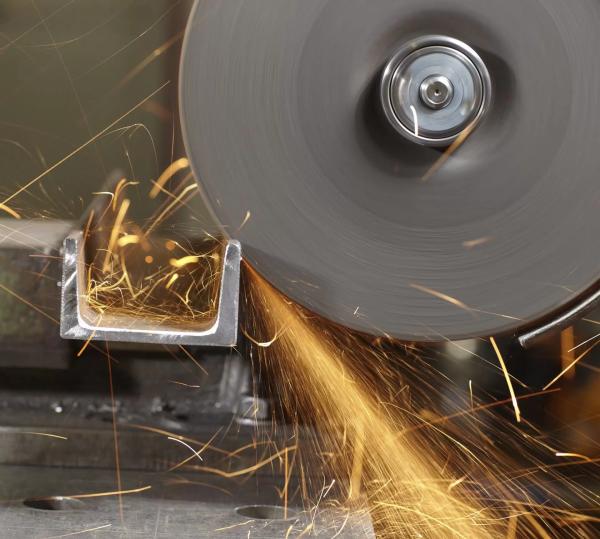

Cut-Off Grinding, Slitting Saw Blade
Diamond cutting wheels are suitable for the cutting of tungsten carbide, Quartz, Glass, LED, ceramic, etc. with the characteristics of free cutting and high efficiency.
CBN cutting wheels are suitable for the cutting of HSS, Alloy steel, Composite materials, etc. with the characteristics of high strength, good rigidity and long life.
Application fields of diamond & CBN cutting wheel
(1) Materials: brittle metal materials, glass materials, ceramic materials, metal materials, semiconductor materials, abrasive materials, magnetic materials, etc.;
(2) Industry: tools, molds, precision ceramics, electronic optics, jewelry, knives, etc.
(3) Workpiece: cemented carbide (tungsten steel YG8) round rod, strip, plate; sapphire; alumina/zirconia/black ceramic/silicon oxide/glass product/ceramic tube; glass (such as glass tube cut); quartz Crucible; Printed Circuit Board
What types of diamond & cbn cutting wheels are available?

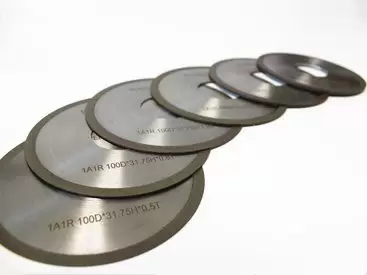

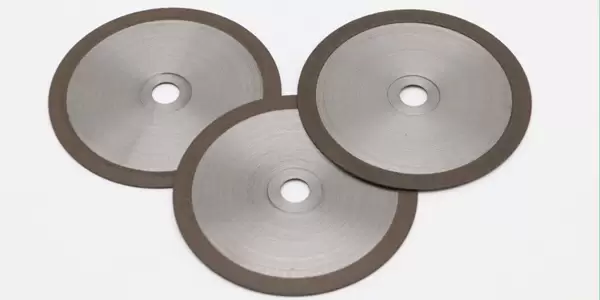

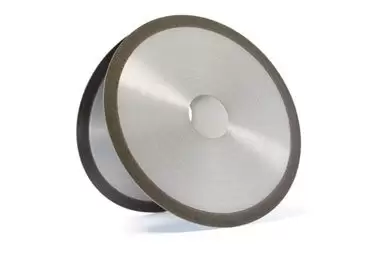

– Resin diamond cutoff wheels for cutting tungsten carbide
Types:1A8, 1A1R.
Abrasives:diamond or CBN.
Speifications:O.D: 10 ~ 500 mm , Rim depth: 2 ~ 15 mm Thickness:0.3 ~ 4.0 mm.
Applications:suitable for the cutting of tungsten carbide, Quartz,mould steel, etc.

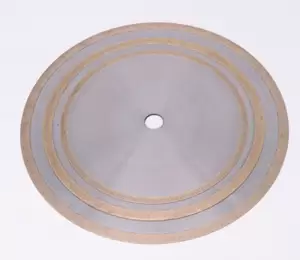

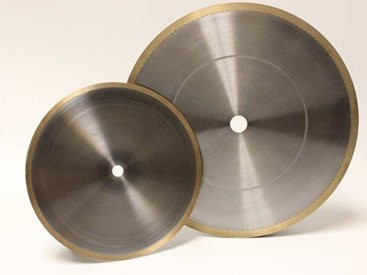

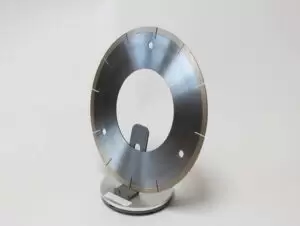

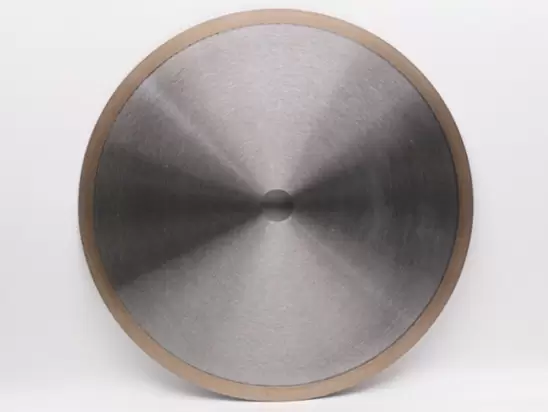

Metal diamond cutting wheels for glass cutting
Types:1A8, 1A1R.
Abrasives:diamond or CBN.
Speifications:O.D: 10 ~ 500 mm , Rim depth: 2 ~ 15 mm Thickness:0.3 ~ 4.0 mm
Applications:suitable for the cutting of tungsten carbide, Quartz,mould steel, etc.

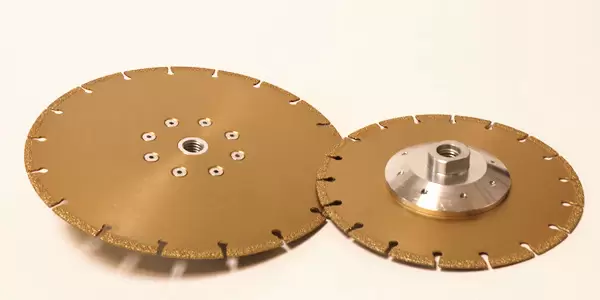

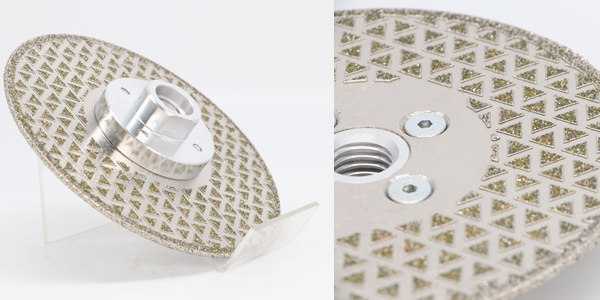

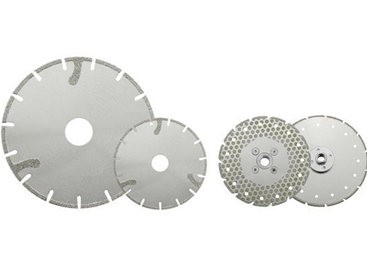

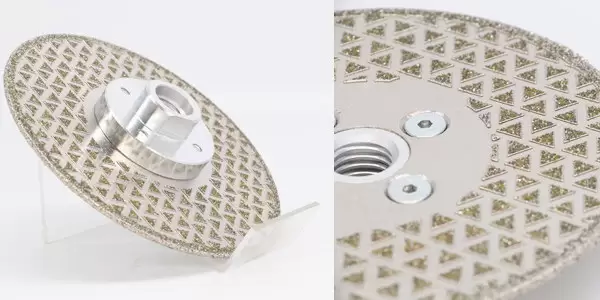

Electroplated diamond cutting disc for marble, stone cutting
Vacuum brazed diamond cutting disc for cast iron cutting

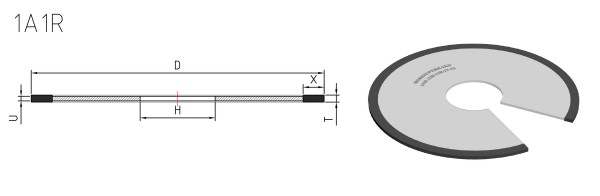

The specifications of diamond & CBN cutting wheels
| D(mm) | T(mm) | U(mm) | H(mm) | X(mm) |
| 4” /100 | 1 | 0.8 | 31.75 | 10 |
| 5”/ 125 | 1 | 0.8 | 31.75 | 10 |
| 6”/ 150 | 0.8 / 1 | 0.6 / 0.8 | 31.75 | 10 |
| 8”/ 200 | 1 | 0.8 | 31.75 | 10 |
| 12”/ 300 | 1 / 1.5 | 1.3 | 31.75 | 10 |
| 16”/ 400 | 2 | 1.8 | 31.75 | 10 |
* Other size can be design according to your requirement.
-
