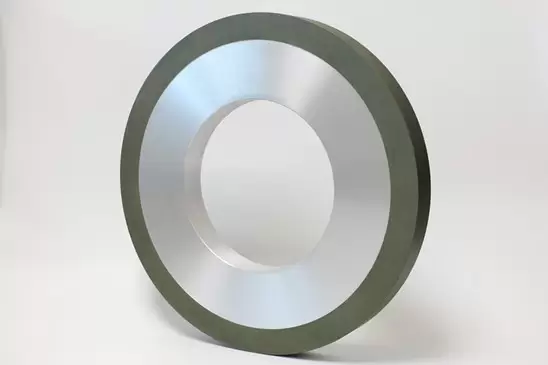

Diamond Cylindrical Grinding Wheel for HVOF Thermal Spraying Coatings
For Cylindrical grinding and finishing of HVOF thermal spray coatings
Excellent surface finish
Long lifespan
High wear resistance
Product Details
Resin diamond Grinding Wheels are designed for fast and cool cutting;perform well in both wet and dry grinding application.
Applications of diamond cylindrical grinding wheel

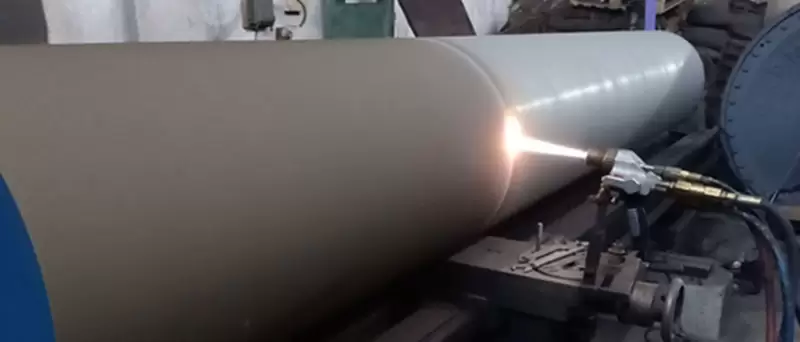

For grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials
Advantages of cylindrical diamond grinding wheel
1.Excellent surface finish
2.Long lifespan
3.High wear resistance

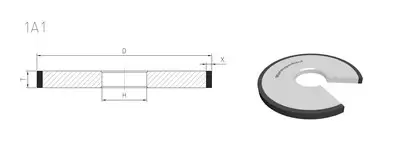

Drawing&Specification
| Type | Diameter | D(mm) | H(mm) | X(mm) | T(mm) | U(mm) |
| 1A1 | 4’’
|
100 | 20 | 6 | 12 | |
| 1A1 | 100 | 20 | 10 | 10 | ||
| 1A1 | 100 | 20 | 10 | 12 | ||
| 1A1 | 100 | 25.4 | 10 | 20 | ||
| 1A1 | 8’’ | 200 | 76.2 | 10 | 25 | |
| 1A1 | 12’’
|
300 | 76.2 | 10 | 25 | |
| 1A1 | 300 | 127 | 10 | 25,30,40 | ||
| 1A1 | 300 | 127 | 25 | 50 | ||
| 14A1 | 300 | 127 | 6,10 | 40 | 10 | |
| 14A1 | 300 | 127 | 10 | 40 | 15 | |
| 1A1 | 16’’
|
400 | 127 | 10,25 | 25 | |
| 1A1 | 400 | 127 | 10 | 30,40,50 | ||
| 1A1 | 20’’
|
500 | 203 | 10 | 15,20 | |
| 1A1 | 500 | 254 | 38 | 25,50 | ||
| 1A1 | 24’’
|
600 | 254 | 25 | 25 | |
| 1A1 | 600 | 304.8 | 5 | 40 | ||
| 1A1 | 600 | 203 | 25 | 50 | ||
| 1A1 | 600 | 304.8 | 10 | 50 | ||
| 1A1 | 30’’ | 750 | 304.8 | 10 | 40,50 | |
| 1A1 | 35.4’’ | 900 | 304.8,305 | 10 | 50,75 | |
| 1A1 | 36’’ | 914.4 | 304.8,305 | 10 | 50.8 | |
| 1A1 | 43’’ | 1100 | 304.8 | 10 | 50 | |
| We can also customized according to your requirements. | ||||||
