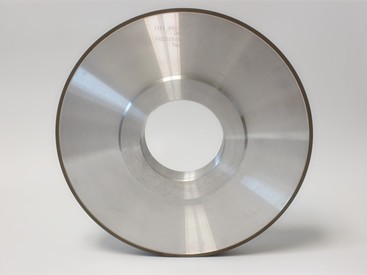

Diamond Face Grinding wheels for circular saw blades
Diamond face grinding wheel is widely used for for linear reciprocating motion grinding of the cutting face and of the back side of the circular saw blades.
Excellent performance ratio
High material removal rates
Long lifespan
Product Details
Moresuperhard provides Diamond and CBN surface grinding wheels to the saw blade industry. Widely used for for linear reciprocating motion grinding of the cutting face and of the back side of the circular saw blades.
Advantages of resin diamond face grinding wheel
1.Excellent performance ratio
2.High material removal rates
3.Long lifespan

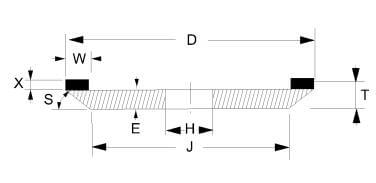

Drawing&Specification
| Shape | D (mm) | W (mm) | X
(mm) |
H
(mm) |
T
(mm) |
S |
 4A2 |
125 | 4 | 2 | 20 | 9 | 15° |
| 125 | 4 | 3 | 20 | 10 | 15° | |
| 125 | 4 | 4 | 20 | 11 | 15° | |
| 125 | 5 | 2 | 20 | 9 | 15° | |
| 125 | 5 | 3 | 20 | 10 | 15° | |
| 125 | 5 | 4 | 20 | 11 | 15° | |
| 150 | 4 | 2 | 20 | 11 | 15° | |
| 150 | 4 | 3 | 20 | 12 | 15° | |
| 150 | 4 | 4 | 20 | 13 | 15° | |
| 150 | 5 | 2 | 20 | 11 | 15° | |
| 150 | 5 | 3 | 20 | 12 | 15° | |
| 150 | 5 | 4 | 20 | 13 | 15° | |
| 200 | 4 | 1.5 | 20 | 15 | 15° | |
| 200 | 4 | 3 | 20 | 15 | 15° | |
| * other size can be customized | ||||||
