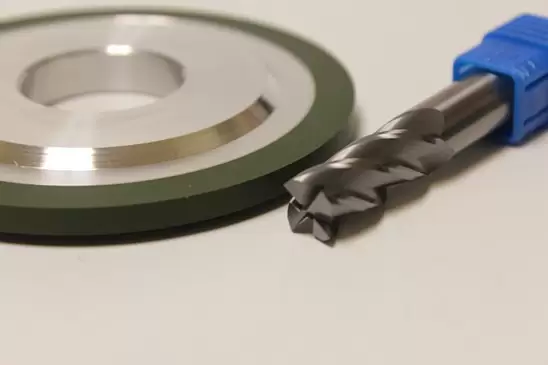

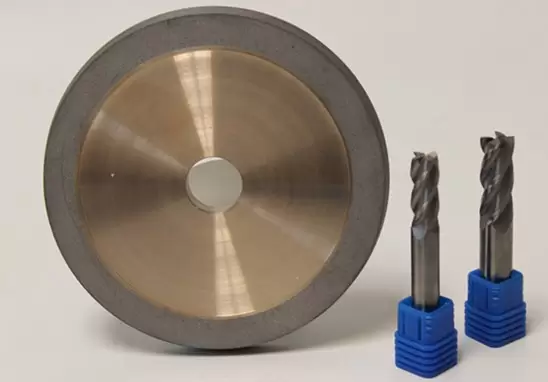

Flute Grinding Wheel for Carbide Round Tools on CNC Machine
Low cutting forces
High material removal rates
Low machine power consumption
Low frictional heat
Smooth surface finish and edge quality
Product Details

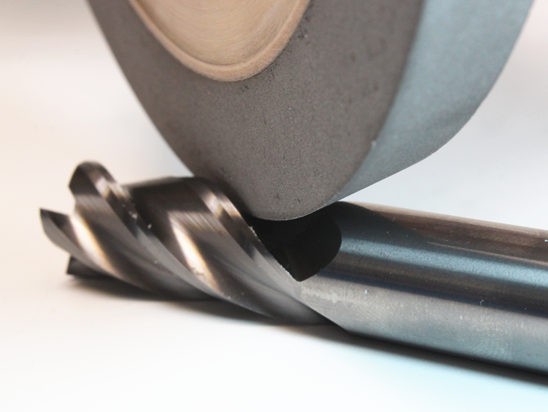

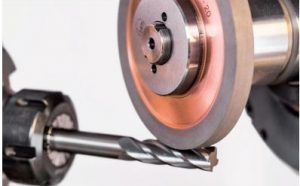

Due to the high material removal rates as well as high precision requirements, flute grinding is one of the most important and challenging steps when manufacturing drills and milling cutters. More Superhard has offered a series of flute grinding solution for every combination of machines and materials as well as for every grinding requirement.
Advantages of fluting grinding wheel on CNC machine
1.Low cutting forces
2.High material removal rates
3.Low machine power consumption
4.Low frictional heat
5.Smooth surface finish and edge quality

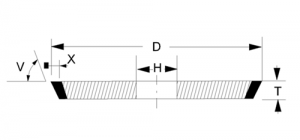

Drawing&Specification
| Fluting : Perfect flute surface quality, Extremely high stock removal, Very low energy consumption | |||||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | grit |
1A1 |
75 | 10 | 5 | 20 | D64 |
| 100 | 6, 10, 12 | 5, 10 | 20 | D46, D64 | |
| 125 | 10, 12, 16 | 10 | 20 | D46, D64 | |
| 150 | 12 | 10 | 20 | D64 | |
1V1 |
D (mm) | T (mm) | X (mm) | H (mm) | V° |
| 75 | 10 | 5 | 20 | 45 | |
| 100 | 10, 15 | 5 | 20 | 45 | |
| 125 | 6, 10, 15 | 5 | 20 | 45 | |
| 150 | 12 | 5 | 20 | 45 | |
14F1 ( flute for drill ) |
D (mm) | U (mm) | X (mm) | H (mm) | R |
| 100 | 4 | 6 | 20 | 2 | |
| 125 | 3 | 5 | 20 | 1.5 | |
| 150 | 1,5 | 5, 7 | 20 | 0.5 , 2.5 | |
| * Other specification can be made according to customers requirements. | |||||
