Home > Grinding Mode > Diamond Cylindrical Wheel for Precision Ceramic Grinding

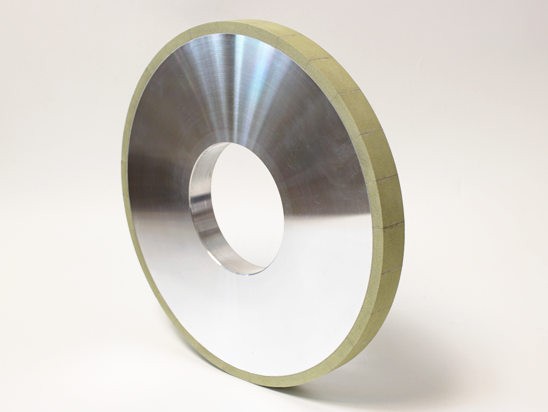

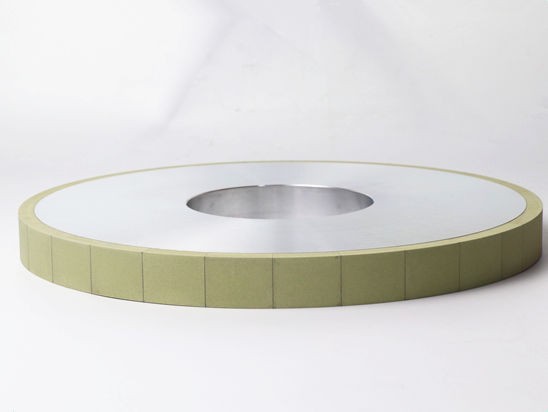

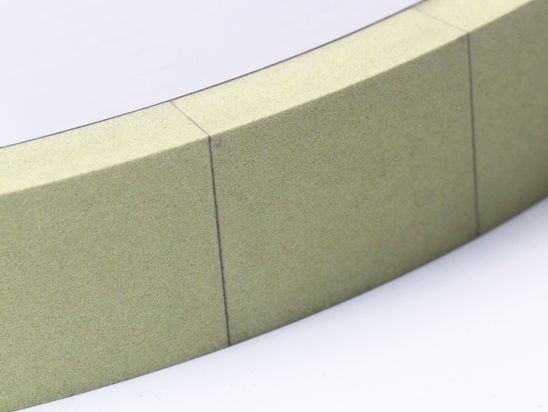

Diamond Wheel for Precision Ceramic Grinding

Diamond Wheel for Precision Ceramic Grinding

Diamond Wheel for Precision Ceramic Grinding

Diamond Wheel for Precision Ceramic Grinding

Diamond Wheel for Precision Ceramic Grinding

Diamond Wheel for Precision Ceramic Grinding

Diamond Cylindrical Wheel for Precision Ceramic Grinding

1A1 Diamond Wheel for grinding precision ceramic

Bonded: resin bond and vitrified bond

Correct choice of grain size and bonded:
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

Send E-mail Inquiry

Product Details

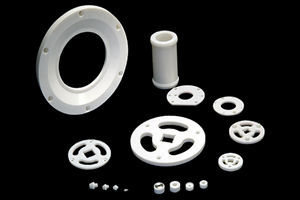

Cylindrical diamond wheels are widely used in grinding various ceramics such as aluminum oxide ceramics, zerconia ceramics, silicon carbide ceramics in engineering applications. Available in resin bond and vitrified

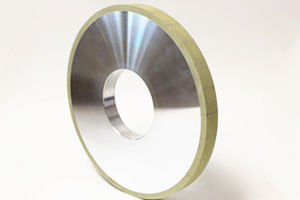

Diamond Wheel for Precision Ceramic Grinding

How to correct choice of grain size and bonded
* Usually rough grinding uses D126, D91 (Resin bond &Vitrified bond)
* Semi-rough grinding uses D76, D64, D54, D46 (Resin bond & Vitrified bond)
* Semi-finish grinding uses D25, D20 (Resin bond &Vitrified bond)
* Finishing grinding uses D15 (Resin bond)
* Super finishing uses D7, D1 (Resin bond)

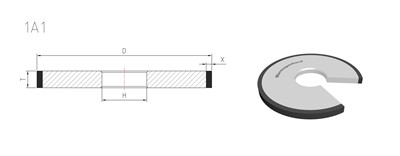

Drawing&Specification

1a1 grinding wheel

Model	D (mm)	T (mm)	H (mm)	X (mm)
1A1	350	30	127	10
	350	40	127	10
	350	50	127	10
	400	30	203	10
	400	40	203	10
	400	50	203	10
	500	30,40,50	305	5,10
	600	30.40,50	305	10
Other sizes can be customized according to your requirement
