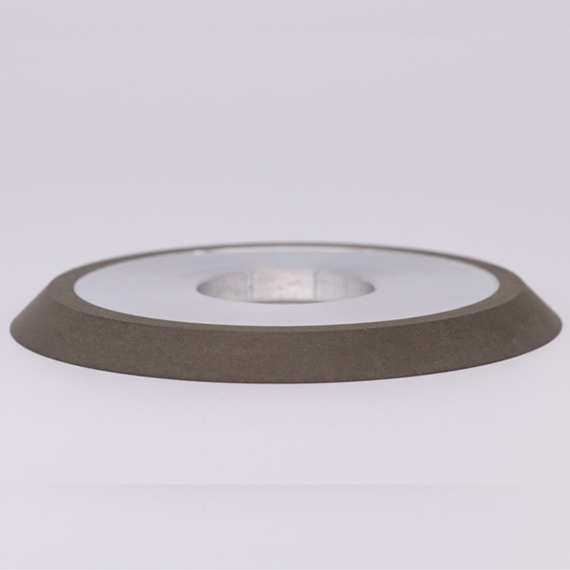

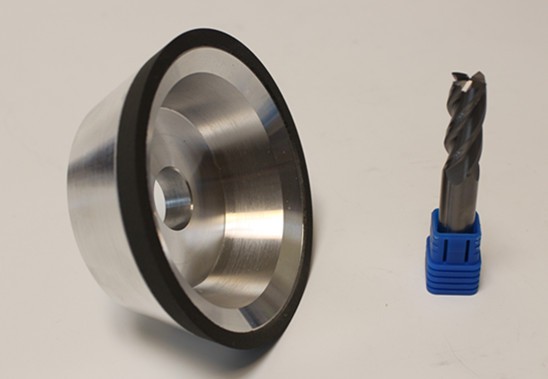

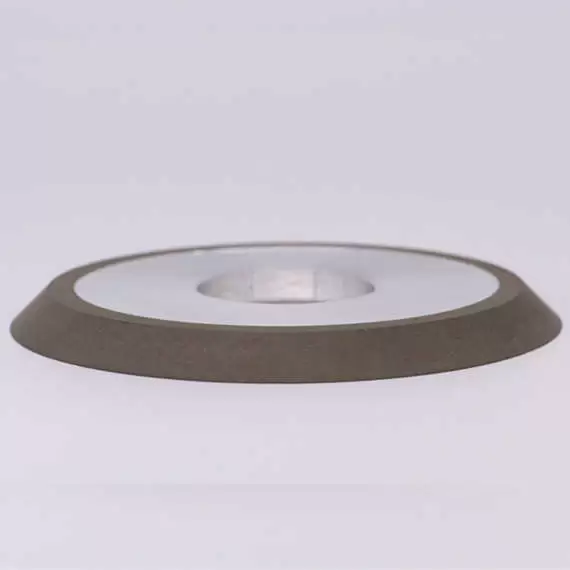

Gashing Grinding Wheel for Round Tools Grinding
Model: 1V1, 3V1, 12V9, 14V1

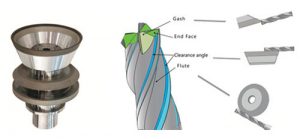

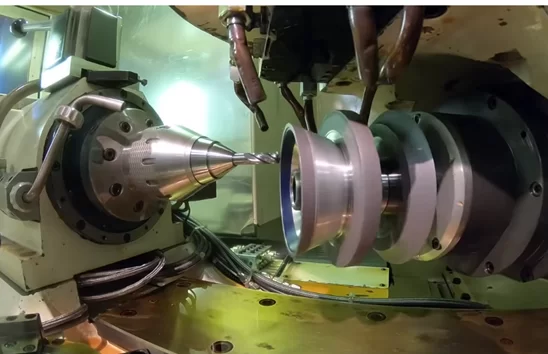

Gashing grinding wheels are widely used for grinding a slot or notch along the cutting face to allow for chip flow
Product Details
Gashing requires higher profile consistency (of the grinding wheel) in comparison to fluting, due to the high edge quality required of carbide tools.

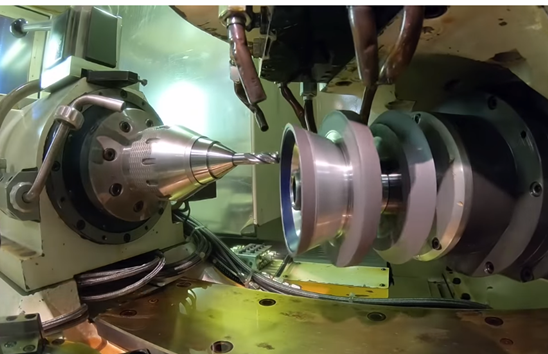

Widely used for grinding a slot or notch along the cutting face to allow for chip flow on tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.
Drawing&Specification
| Gashing Grinding: superior tool edge quality, High stock removal, Maintaining wheel profile | |||||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V° |
|

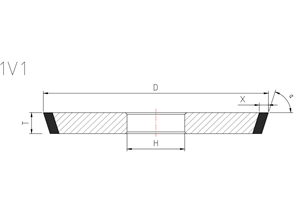

1V1 |
75 | 6,8,10,12,15 | 6,10 | 20 | 45 |
| 100 | 10, 15 | 5, 10 | 20 | 45 | |
| 125 | 4, 10, 15 | 5, 6, 10 | 20 | 45 | |
| 150 | 6,8,10,12,15 | 5,6,10 | 20 | 45 | |
|

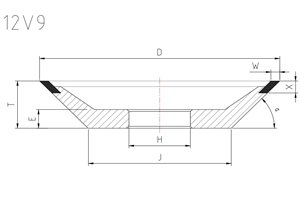

12V9 |
D (mm) | X (mm) | U (mm) | H (mm) | |
| 75 | 3 | 10 | 20 | ||
| 100 | 3 | 10 | 20 | ||
| 125 | 3 | 10 | 20 | ||
| 150 | 3 | 10 | 20 | ||
| * Other specification can be made according to customers requirements. | |||||
