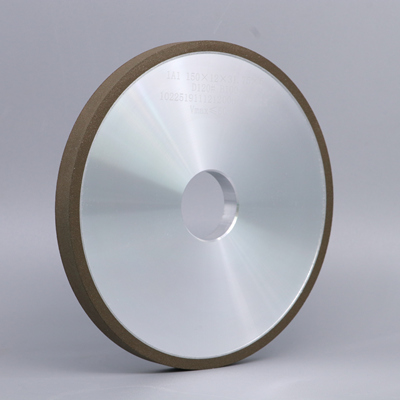

Resin bond Diamond Surface Grinding Wheel
The medium grade is our all purpose, most popular, diamond wheel and will put a great edge on a carbide graver as well as sharpen our carbide spade drills.
Applications of resin bond diamond grinding wheel for carbide coating
More Superhard resin bond diamond wheels on lathe or mounted separately for sharpening tungsten carbide coating, making your own spade drills, for resharpening tools.
The advantages of resin diamond grinding wheel for carbide coating
* The resin bonded diamond surface ensures that they are very hard wearing and leave a beautiful and accurate finish.
* A high concentration of diamond provides a quick cutting surface without vibration so you can spend more time working and less time sharpening.
* 3 grades (grain size ) of diamond wheels: coarse, medium and fine.
– The coarse grade is solely used for shaping hard materials and saves time when removing large stock amounts.
– The medium grade is our all purpose, most popular, diamond wheel and will put a great edge on a carbide graver as well as sharpen our carbide spade drills.
– Fine grade diamond wheel is used for finishing, this is not always necessary but the better the tool the better the finish on your work.

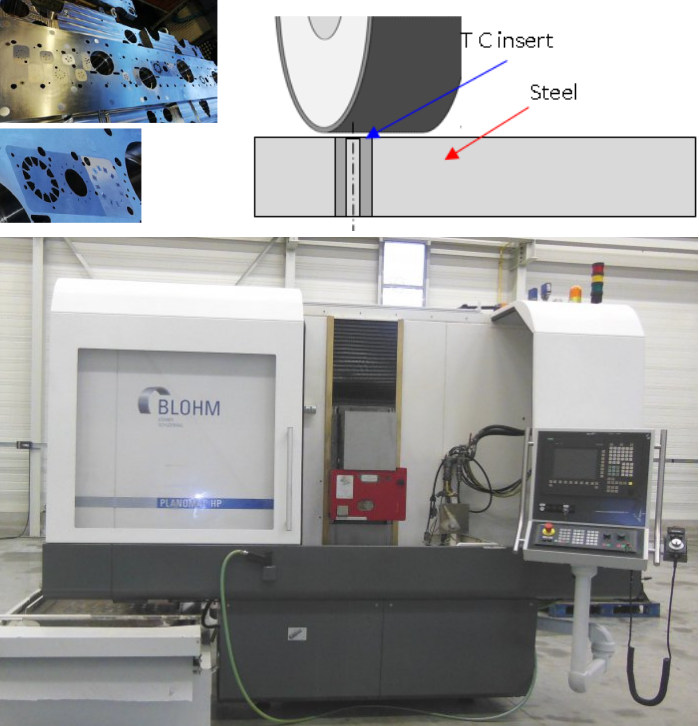

Case of resin diamond grinding wheel for tungsten carbide inserts face grinding
Machine | Blohm |
Coolant | oil emulsion |
Resin diamond grinding Wheel dimension | 1A1-D:400 T:40 X:5 H:76,2 |
Speed | 30m/S-60m/s |
Material | Steel 33, 33-50HRc with Tungsten carbide inserts |
Tungsten carbide inserts | H40S-Ceratezi |
The specifications of resin diamond grinding wheel for carbide coating
Type | Diameter (inches) | D(mm) | H(mm) | X(mm) | T(mm) | U(mm) |
1A1 | 4” | 100 | 20 | 6 | 12 | |
1A1 | 100 | 20 | 10 | 10 | ||
1A1 | 100 | 20 | 10 | 12 | ||
1A1 | 100 | 25.4 | 10 | 20 | ||
1A1 | 8” | 200 | 76.2 | 10 | 25 | |
1A1 | 12” | 300 | 76.2 | 10 | 25 | |
1A1 | 300 | 127 | 10 | 25,30,40 | ||
1A1 | 300 | 127 | 25 | 50 | ||
14A1 | 300 | 127 | 6,10 | 40 | 10 | |
14A1 | 300 | 127 | 10 | 40 | 15 | |
1A1 | 16” | 400 | 127 | 10,25 | 25 | |
1A1 | 400 | 127 | 10 | 30,40,50 | ||
1A1 | 20” | 500 | 203 | 10 | 15,20 | |
1A1 | 500 | 254 | 38 | 25,50 | ||
1A1 | 24” | 600 | 254 | 25 | 25 | |
1A1 | 600 | 304.8 | 5 | 40 | ||
1A1 | 600 | 203 | 25 | 50 | ||
1A1 | 600 | 304.8 | 10 | 50 | ||
1A1 | 30” | 750 | 304.8 | 10 | 40,50 | |
1A1 | 35.4” | 900 | 304.8,305 | 10 | 50,75 | |
1A1 | 36” | 914.4 | 304.8,305 | 10 | 50.8 | |
1A1 | 43” | 1100 | 304.8 | 10 | 50 | |
We can also customized according to your requirements. |
