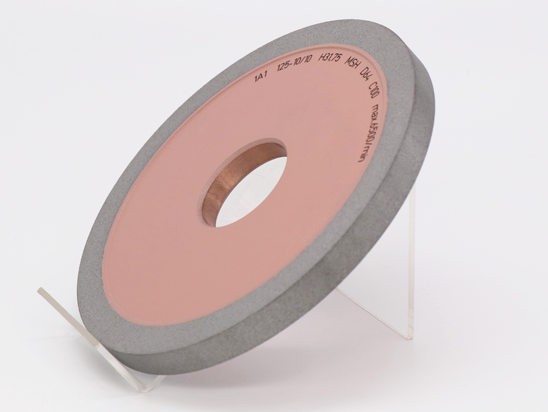

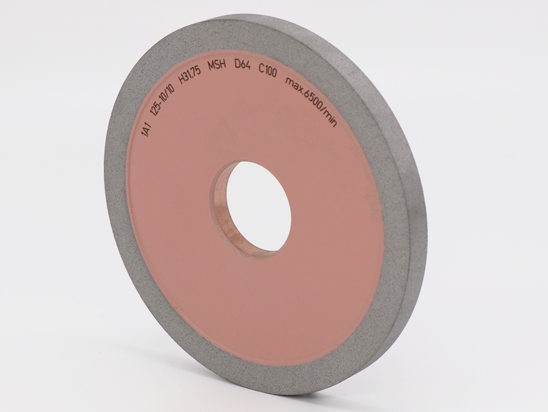

Diamond Flute Grinding Wheel for Carbide Tools
Online Truing and Dressing Capability Lower Tooling Cost
Better Edge Quality
Applicable CNC Grinder: Anca®, Makino®, Rollomatic®, Star®, Walter®, etc
Product Details

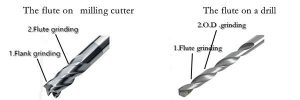

More Superhard offers the optimal product solution for every combination of machines and materials as well as for every grinding requirement. The Diamond flute grinding wheels are used for fluting milling cutter, drill.

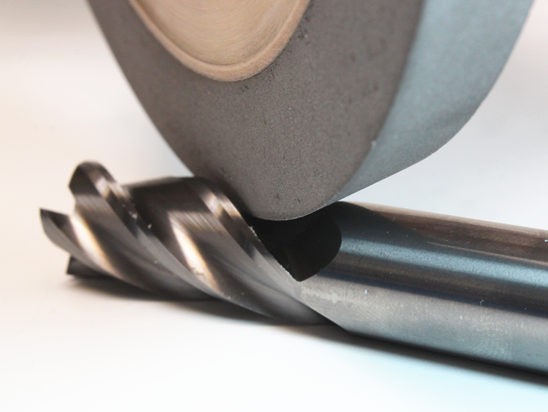

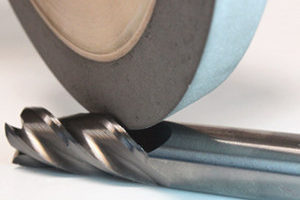

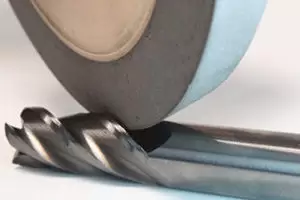

Application case of diamond flute grinding wheel
| Model | 1A1 Diamond flute grinding wheel |
| Workpiece Material | Crabide, ceramics |
| Workpiece | Flute milling cutter, drill |
| RPM (m/s) | 16 – 18 m/s |
| SFM | 3150 – 3540 |
| CNC Grinding Machine | Anca® |
| Coolant | Oil or water soluble |
Drawing&Specification
Specifications of diamond flute grinding wheel
| Model | D (inch/mm) | T (inch / mm) | X (inch / mm) | H (inch /mm) | ||||
| 1A1 | 4″ | 100 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
