6A2 Diamond Cup Wheel
Application of 6A2 diamond grinding wheel: grinding PCD and PCBN tools, glass, ceramics, quarts, semiconductors, and other non-metallic materials.
Bonded of 6a2 diamond wheel: vitrified bond, resin bond, metal bond
Types : 6a2, 6a2C, 6a2H grinding wheel
Product Details

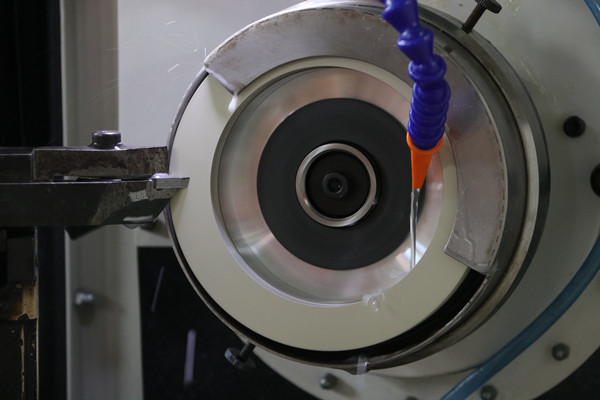

6A2 diamond cup grinding wheel is used for grinding PCD and PCBN tools, glass, ceramics, quarts, semi-conductors, and other non-metallic materials.

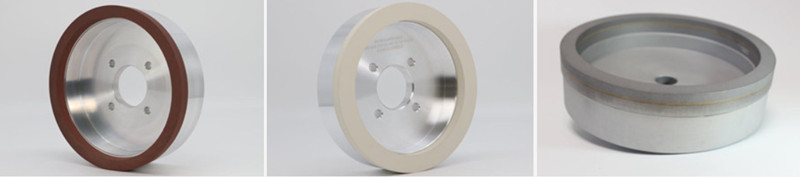

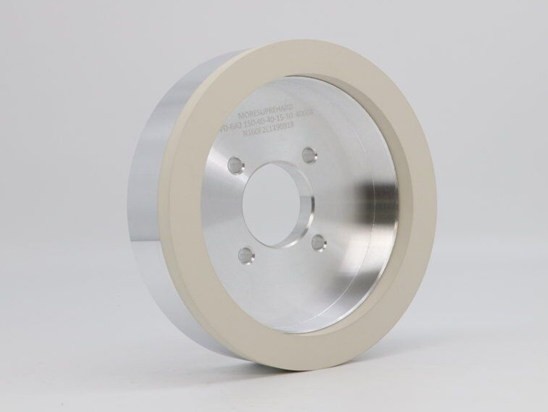

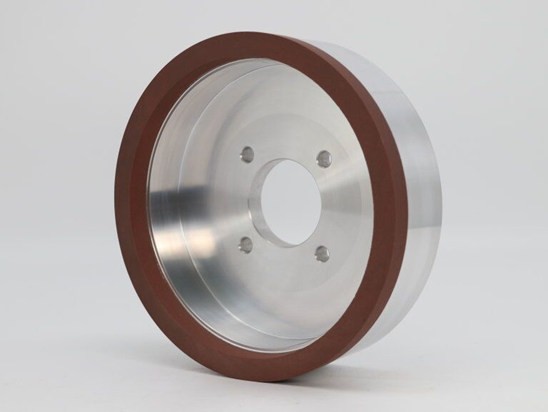

Products Show (special sizes and shape can be design according to your drawing)

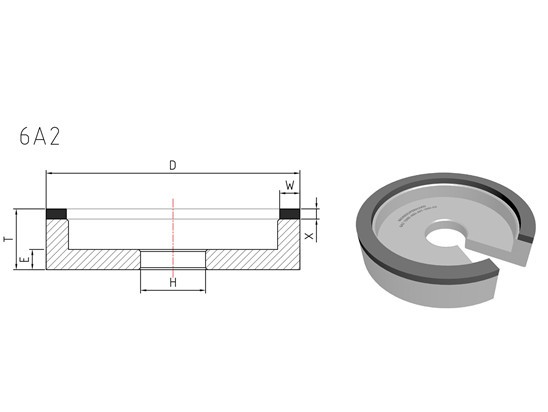

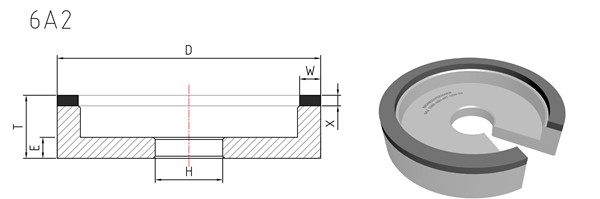

Drawing&Specification
| Model | D | T | X | H | W |
| 6A2 | 150 | 40 | 10 | 32 40 | 3 5 10 15 20 |
| 50 | 3 5 6 | 2 3 4 | |||
| 75 | 3 5 6 10 | 2 3 4 | |||
| 100 | 40 | 2 3 4 | 32 40 | 3 5 10 15 20 | |
| 125 | 40 | 2 3 4 | 32 40 | 3 5 10 15 20 | |
| 200 | 10 15 20 25 35 40 | 2 3 4 | 32 40 | 3 5 10 15 20 | |
| 300 | 10 25 | 2 3 4 | |||
| 350 | 6 10 25 | 2 3 4 | |||
| Other sizes can be made according to your requirement. info@moresuperhard.com | |||||
