Diamond Wheels for Silicon Ingot, Cylindrical Grinding/ OD Grinding
Peripheral grinding of silicon ingots, or processing the outer surface of silicon ingots and to make orientation flat
For semiconductors and electronics parts, automobiles and photovoltaic industies
Product Details

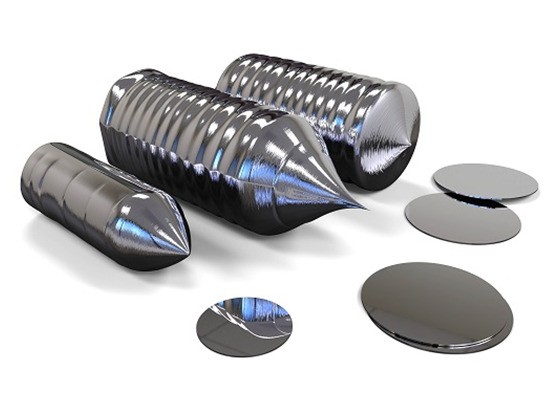

Cylindrical Grinding Silicon Ingots

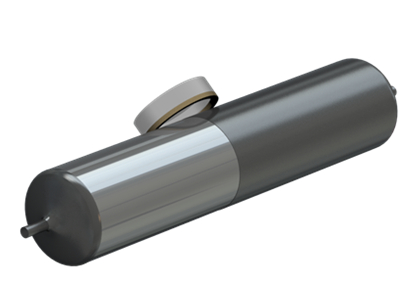

Peripheral grinding of silicon ingots, or processing the outer surface of silicon ingots and to make orientation flat.
Materials used in semiconductors and electronics parts, automobiles and photovoltaic industry. Types of these materials are varied including silicon, sapphire, and gallium arsenide (GaAs).
Features of cylindrical grinding wheel for silicon ingot
– Realizes a total-like cost cut by fast material removal
– Minimal influence on crystalline structure
– Low grinding load, good grinding performance and wear resistance
– Ingot surface with a high flat degree.
– Low dressing frequency
Drawing&Specification

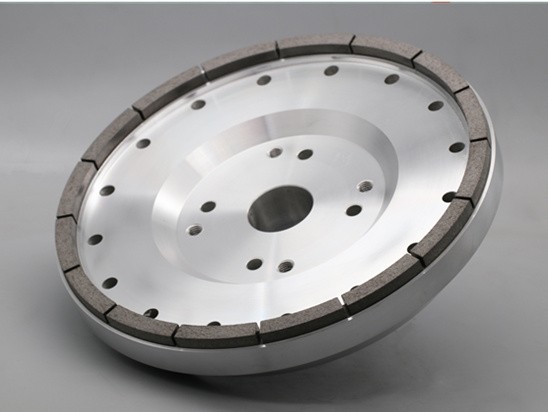

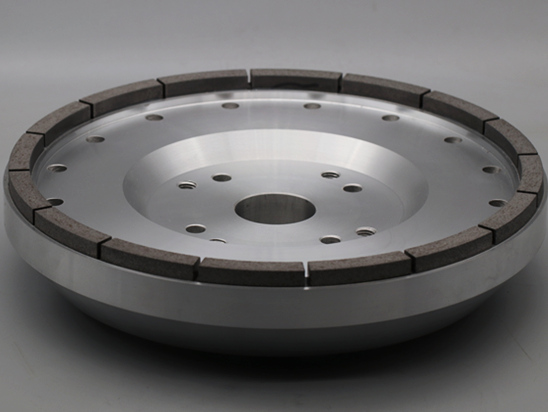

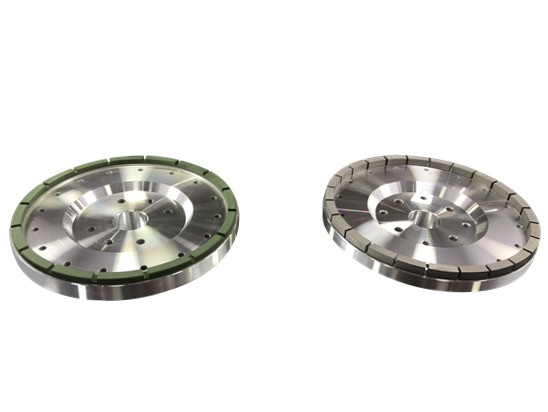

Specifications of 6A2 Diamond Wheel for Cylindrical Grinding Silicon Ingot
| D (mm) | T (mm) | H (mm) | W (mm) | X (mm) | Materials |
| 100 | 28 | 31.75 | 3, 5, 6, 9 | 3-8 | Silicon, sapphire, and gallium arsenide (GaAs) |
| 200 | 35, 50, 60 | 76, 80 | 3, 5, 6, 9 | ||
| 300 | 20, 30, 35 | 127 | 5, 7 | ||
| 350 | 40 | 5, 7 | |||
| Rough / Fine grinding ( 100 – 1000#) | |||||
| Other specifications can be custom according to the requirement | |||||
