Diamond Dressing Tools, Dressing Grinding Wheel

4 Types of Diamond Dressing Tools for Grinding Wheels

- Single point diamond dressers

- Multi point diamond dressers

- Forming diamond dressers

- Impregnated diamond dressers

 Diamonds: 0.5 ct, 0.65 ct, 1 ct, 1.5 ct, 2 ct, 2.5 ct, 3 ct, etc

Product Details

Why use the dressing tool to dress grinding wheel ?

In the grinding process, the sharpness of grinding wheel become rounded or dull, under the abrasive friction and extrusion effect, or grinding wheel surface often embedded in the pores of the grinding wheel surface clogging. These factors will make the grinding wheel cutting capacity loss.

Diamond Dressing tools, diamond dresser grinding wheels are made with natural diamond and synthetic materials. For truing and dressing of conventional abrasive grinding wheels.

diamond dressing tools diamond dresser

4 Types Of Diamond Dressing Tools, diamond dresser grinding wheel

* Single point diamond dressers

* Multi point diamond dressers

* Forming diamond dressers

* Impregnated diamond dressers

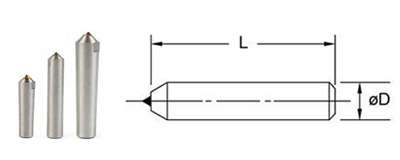

Single point diamond dressers / diamond turning dressing tools  (0.5 ct, 0.65 ct, 1 ct, 1.5 ct, 2 ct, 2.5 ct, 3 ct, etc)

Application: profile dressing straight type conventional abrasive wheels. Dressing ceramic abrasive SG grinding wheels ,simple profiles, thread and gear grinding

Using a single point of dressing tool, should be in 10° to 15° axis Angle contact grinding wheel diameter direction. This will lead to a single point of dressing tools in the regular rotation, produce a sharpening effect.

single point diamond dresser

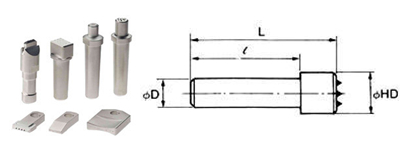

Multi point diamond dressers / diamond dressing for grinding wheel

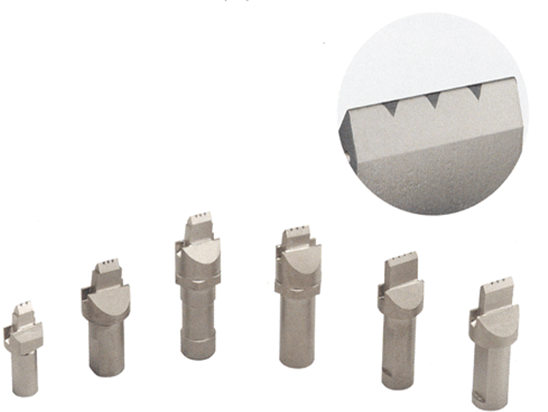

3 point diamond dresser

Application: large OD wheels, surface and centerless grinding wheels. It is used for auto parts, mould industry,and other precision machinery parts industry

Multi point dressing tools don't need to tilt the Angle. Instead of using dressing tool of the entire face and the grinding wheel surface.

multi point diamond dresser

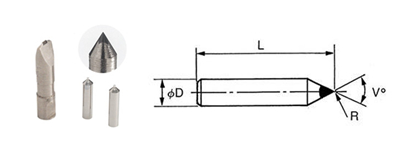

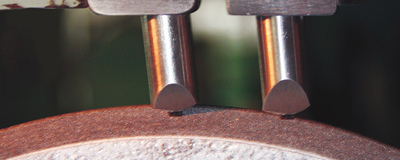

Forming diamond dressers

Application: dressing specific forms into conventional abrasive wheels(formingarc, angle, groove radius and other complex profiles) .

Two types of forming diamond dressers: chisel type and cone type.

form diamond dresser

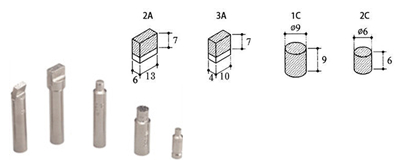

Impregnated diamond dressers

Application: centerless, cylindrical surface grinding. Diamond impregnated tool consists of a diamond powder bound in a sintered metal.

impregnated diamond dresser



What Is Wheel Truing and Dressing?

Drawing&Specification
