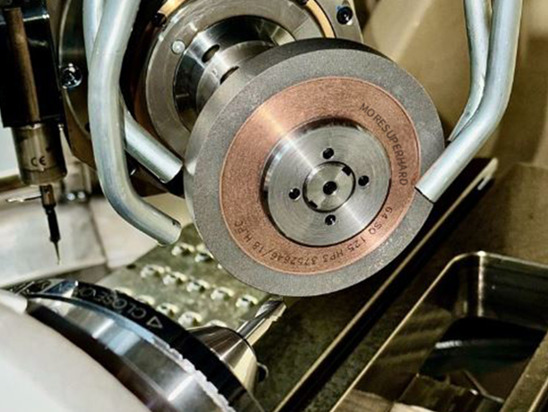

Superabrasive diamond grinding wheels for CNC tool grinder

Diamond and CBN wheels for grinding carbide and HSS. (such as drill, end mill, reamer)

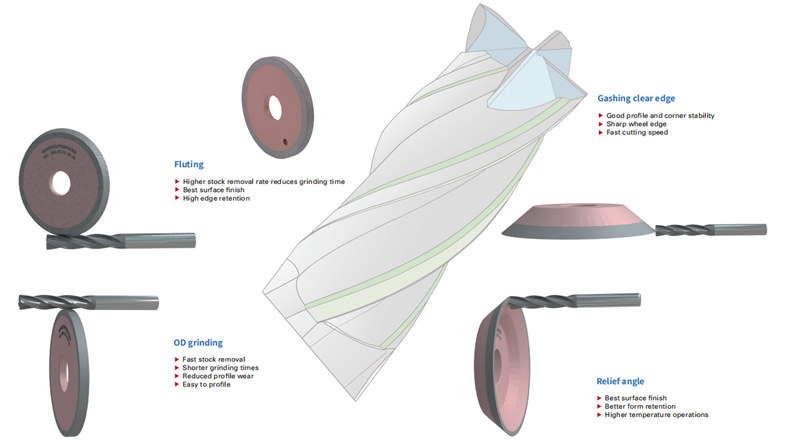

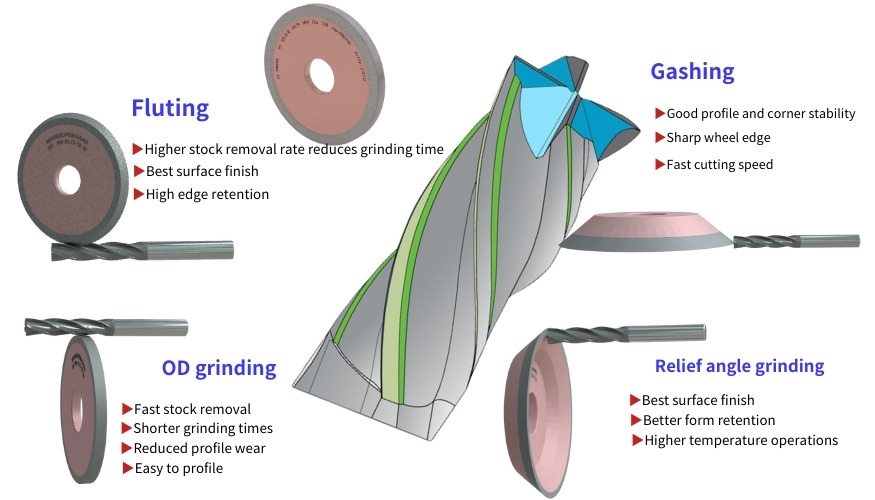

A complete solution for CNC tools manufacturing: fluting, gashing and Clear edge, relief angle grinding, OD grinding

Model: 1A1, 1V1, 11V9, 12V9, 14A1, 12V5, etc

Bonded: resin bond and hybrid bond

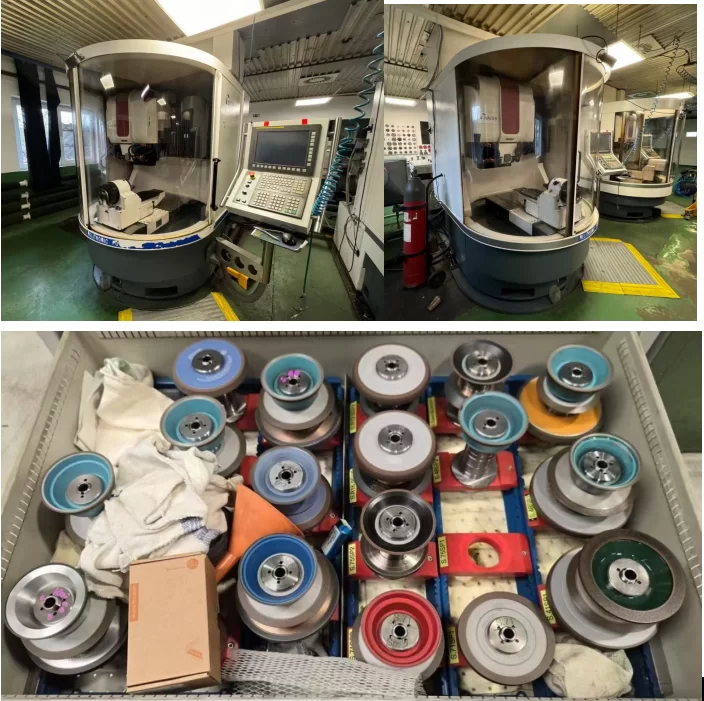

CNC Grinder: Walter, Anca, Ewag, Vollmer, Rollomatic, Schutte, Schneeberger, Makino, TG-5, Studer, Strausak, Cincinnati, Griffo, Huffman,Jungner.


Product Details

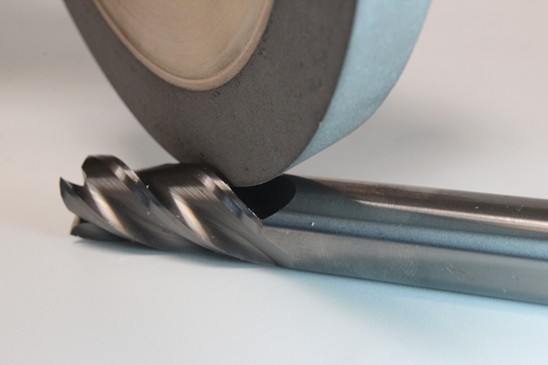

Resin diamond wheels for grinding tungsten carbide and HSS steel. Such as drills, end mills, reamers, micro drills, mini end mills and burrs, etc
Suitable CNC Grinding Machine: Walter, Anca, Ewag, Vollmer, Rollomatic, Schutte, Schneeberger, Makino, TG-5, Studer, Strausak, Cincinnati, Griffo, Huffman,Jungner.



Application of diamond grinding wheel for CNC tools
Mainly used for grinding digital controlled cutting tools such as tungsten carbide, high speed steel, stainless drill, mill and reamer

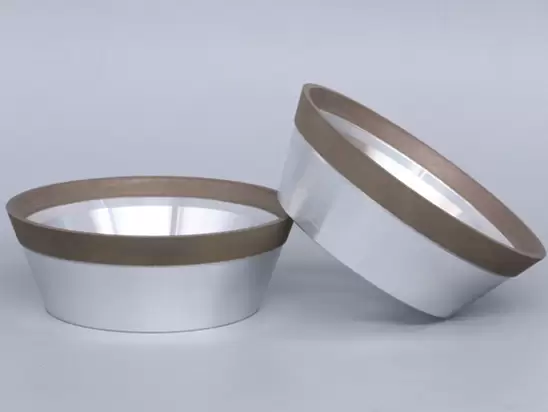

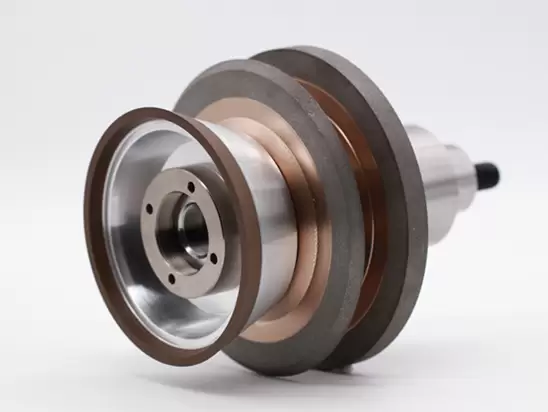

CNC diamond grinding wheel

Advantages of cnc grinding wheels
1.Perfect processing quality
2.High efficient grinding with fast feeding
3.Good wear resistance and shape keeping

Drawing&Specification

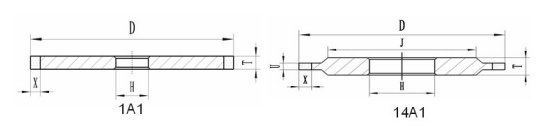

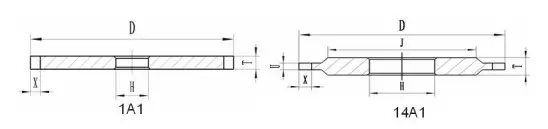

– 1A1/ 14A1 (Flute grinding, Relif grinding, OD grinding)

1a1 grinding wheel

Type D T/U X V Grit Size




1A1

14A1

mm Inch mm Inch mm Inch diamond CBN
75 3 1-12 1/25-1/2 3-10 1/8-2/5

90̊

D64  D54  D46 B126 B91 B76
100 4 1-16 1/25-2/3 3-10 1/8-2/5
125 5 1-16 1/25-2/3 6-10 1/4-2/5 polishing
150 6 2-16 1/12-2/3 6-15 1/4-3/5 D35,D25D20,D15 B54 B16

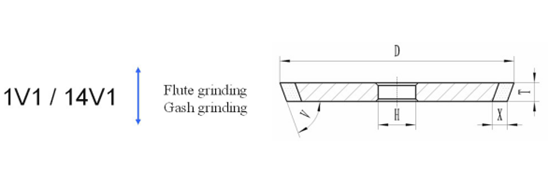

– 1V1/ 14V1 (Flute grinding, Gash grinding)

flute grinding wheel

Type D T X V Grit Size




1V1

14V1

mm Inch mm Inch mm Inch diamond CBN
75 3 1-12 1/25-1/2 3-10 1/8-2/5



45̊-85̊

D64  D54  D46 B126 B91 B76
100 4 1-16 1/25-2/3 3-10 1/8-2/5
125 5 1-16 1/25-2/3 6-10 1/4-2/5 polishing
150 6 2-16 1/12-2/3 6-15 1/4-3/5 D35,D25D20,D15 B54 B16

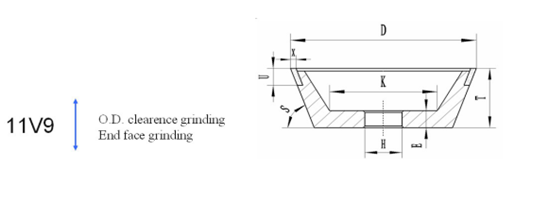

– 11V9 (OD clearence grinding, End face grinding)

11v9 grinding wheel

Type D T X S Grit Size




11V9

mm Inch mm Inch mm Inch diamond CBN
75 3 25-40 1-8/5 3-10 1/8-2/5

70̊

45̊

D126  D64  D46  D35 B126 B91 B76 B64
100 4 25-40 1-8/5 3-10 1/8-2/5
125 5 25-40 1-8/5 3-10 1/8-2/5

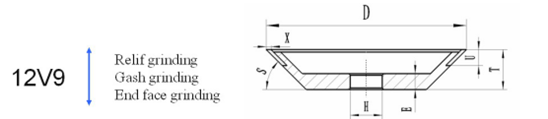

– 12V9 (Relif grinding, Gash grinding, End face grinding)

12v9 grinding wheel

Type D T X S Grit Size




12V9

mm Inch mm Inch mm Inch diamond CBN
75 3 20-30 4/5-6/5 3-5 1/8-1/5

45̊

D126 D91  D64  D46  D35 B126 B91 B76 B64 B46
100 4 20-30 4/5-6/5 3-5 1/8-1/5
125 5 20-30 4/5-6/5 3-5 1/8-1/5
150 6 20-30 4/5-6/5 3-5 1/8-1/5

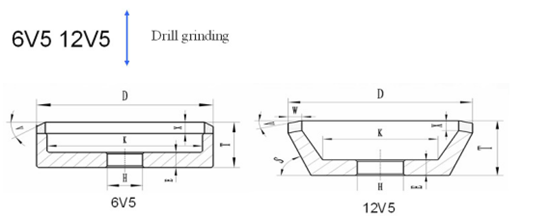

– 6V5/12V5 (Drill grinding)

6v5 grinding wheel

Type D T/U X S Grit Size


6V5



12V5

mm Inch mm Inch mm Inch diamond CBN
75 3 6-10 1/4-3/8 3-10 1/8-3/8

30̊

45̊



D76  D64  D46  D35  D25



B91 B76 B64 B46 B30

100 4 6-12 1/4-1/2 3-10 1/8-3/8
125 5 6-12 1/4-1/2 6-10 1/4-3/8
150 6 8-12 1/3-1/2 6-15 1/4-3/5
200 8 10-20 3/8-3/4 6-15 1/4-3/5
