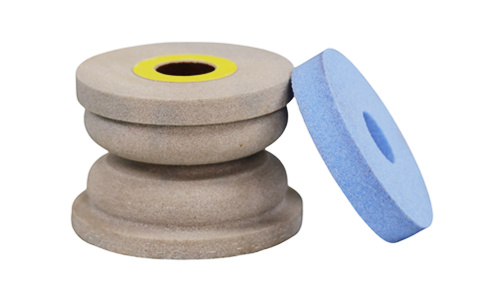

Conventional abrasive grinding wheel for bearing

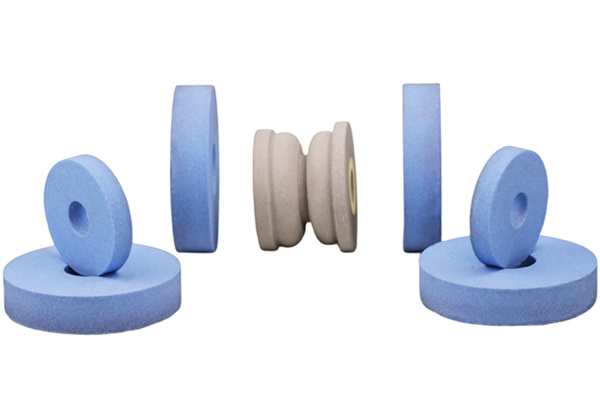

Raceway grinding wheel

Bearing raceway grinding wheel is used for grinding bearing raceways through the process of plunge grinding.

Bearing raceway grinding process has a large influence on the work quality and the rotate accuracy of the bearing raceway surface quality.. Surface roughness and heat affected layer have strong relationship with grinding process quality.

Moresuperhard raceway grinding wheel can ensure the dimensional accuracy, roundness and groove curvature of the grinding workpiece.

Application of Raceway grinding wheel

Used for grinding inner and outer ring raceway of rolling ball bearings.

Performance characteristics

1. Fast cutting, exceptional form holding for precise part geometry and good durability.

2. Outstanding raceway profile retention.

3. Dressing frenquency≥10pcs/time; cut rate: 1piece/min.

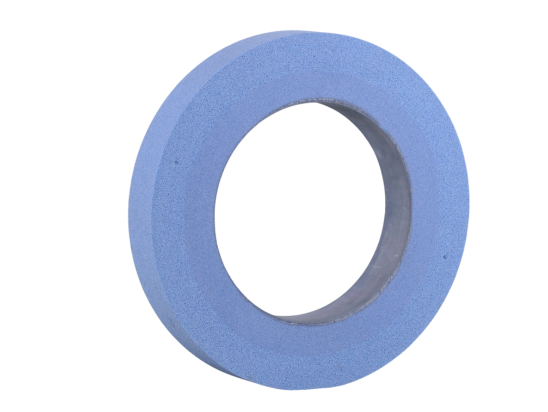

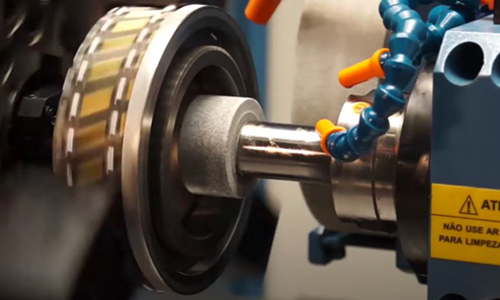

Internal grinding wheel

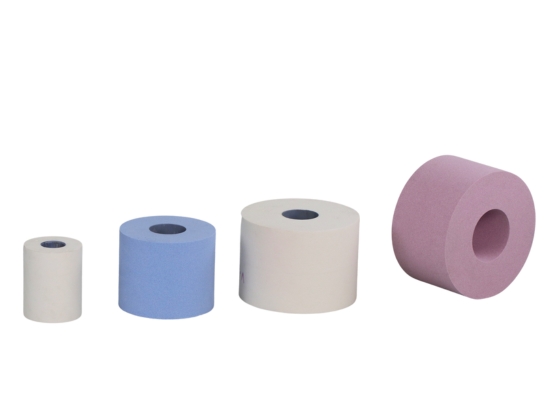

Internal grinding wheels are used for grinding inner diameter of bearings, gears & automobile components to an accurate size & desired finish.

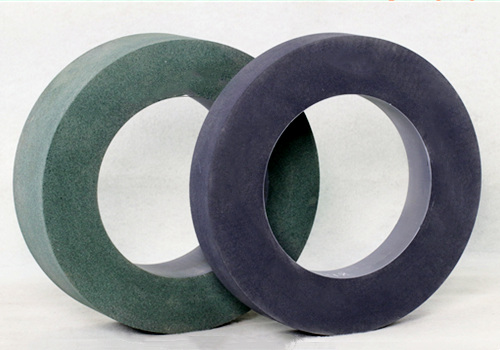

Centerless grinding wheeel

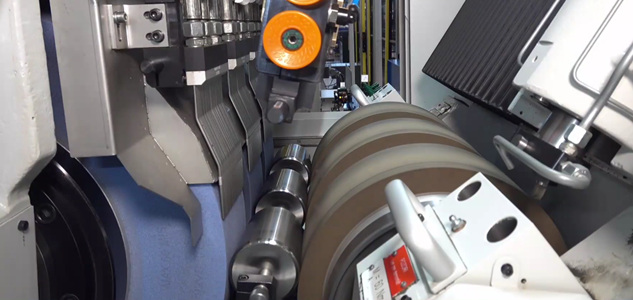

When grinding with a centerless grinder, there are two grinding wheels: a guide wheel and a grinding wheel. The guide wheel drives the cylindrical workpiece to rotate on the pad, and the grinding wheel plays a grinding role on the workpiece.

By correctly setting the angles of the grinding point, the support point of the supporting plate and the supporting point of the guide wheel, the grinding surface is supported for processing. When starting processing, the accuracy of rough grinding is achieved, and the outer diameter roundness of the outer ring is gradually corrected, finally ensuring sufficient roundness of the outer ring.

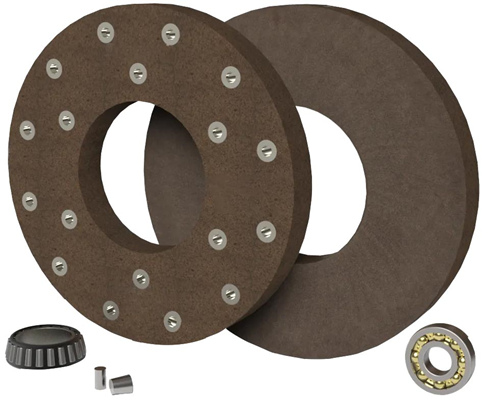

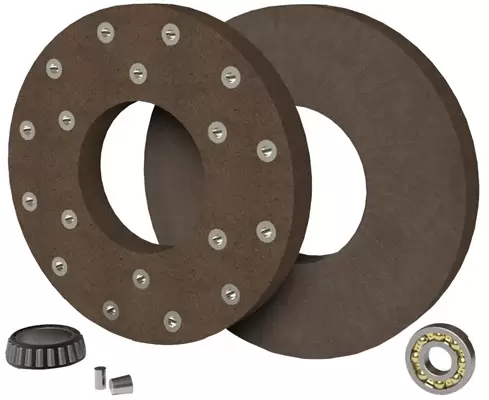

Bearing ring face grinding wheel

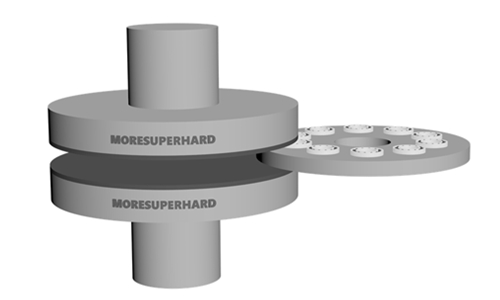

Moresuperhard resin double-faced grinding wheels have a wide range of versatility.  The resin double-end grinding wheel has a complex mounting bolt-hole distribution surface.

At the same time, the Moresuperhard resin double-end grinding wheel has a good balance level, which can avoid vibration during the grinding process, thereby obtaining better surface quality and processing accuracy.

Grit: P36-P400

Diameter: 457-915mm

Application of resin double-faced grinding wheels :

Mainly used for large-scale surface processing of small and medium-sized parts, such as:

* bearings

* Automotive parts (piston rings, connecting rods, clutch discs)

* Springs

* electronic molds (mobile phone parts) and castings.
