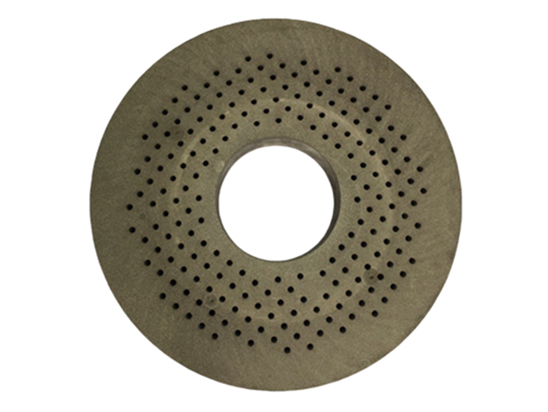

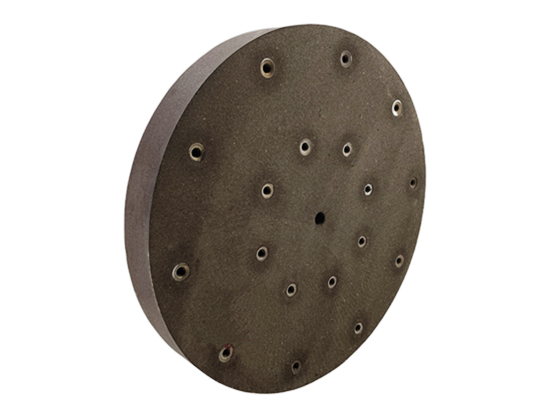

Nut Inserted Disc Wheels
Diameter:12 inches – 72 inches
Abrasive: WA,BA,GC
Bond: resin
Product Details
Moresuperhard manufactures nut inserted disc wheels in sizes ranging from 305 mm – 1830 mm in diameter.
Suitable for machines: Gardner, Besley, Diskus, Foldage, Nippie, Modular, Parivartan, OMD, Bennet, Rolland etc.
Application of Nut-inserted disc wheels :
* Bearing rings * Piston pins * Details of diesel pumps * Disc clutch pumps
* Conn rod * Piston rings * Disc breaks * Transmission gears
* Washers * Motor Valves * Bushing of trucks * Compressor plates / components
* Chains * Magnets * Washers and spacer rings * Cutting tools
* Parts of hydraulic pumps
Nut-inserted disc wheels are widely used in grinding of bearing rings and roller end faces, sealing valve plates, automobile friction plates, double end faces and four sides of engine cylinders, etc. Nut-inserted disc wheels have high grinding efficiency and high grinding precision.
Drawing&Specification
| Diameter | Hole | Thickness |
| 350 | 25.4 | 65 |
| 355 | 110 | 52 |
| 450 | 150 | 65 |
| 450 | 15 | 80 |
| 450 | 40 | 80 |
| 500 | 300 | 300 |
| 585 | 19.05 | 65 |
| 585 | 250 | 65 |
| 585 | 195 | 75 |
| 600 | 300 | 65 |
| 600 | 20 | 80 |
| 660 | 12.7 | 76.2 |
| 660 | 300 | 90 |
