Home > Products > Cylindrical Diamond Wheel for PCD Reamer Grinding

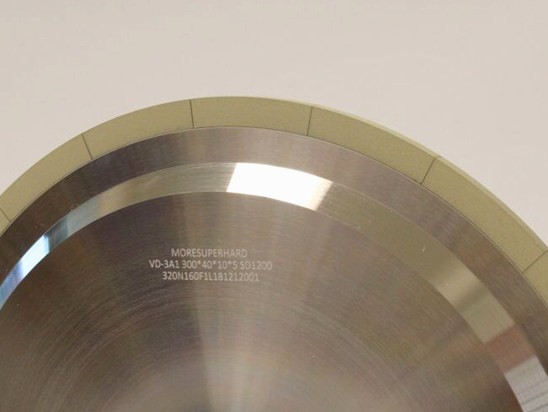

grinding wheel for pcd reamer

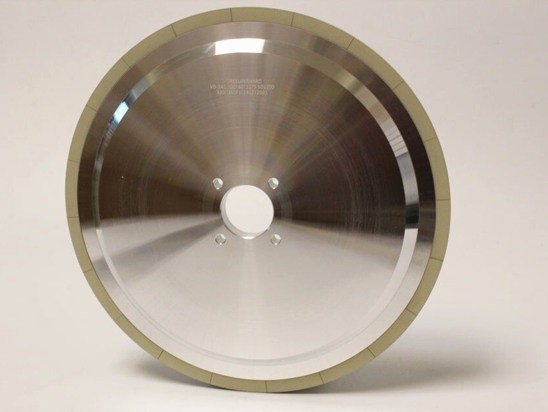

vitrified diamond grinding wheel
pcd reamer grinding wheel
grinding wheel for pcd reamer
vitrified diamond grinding wheel
pcd reamer grinding wheel

Cylindrical Diamond Wheel for PCD Reamer Grinding

Cylindrical diamond wheel for grinding PCD reamer

Type: 3A1, 14A1

Advantages Of Cylindrical Diamond Wheels
Enjoys strong sharpness, high self-sharpening good surface finish after grinding.
High efficiency,Less dressing time,Long service life and stable quality

Send E-mail Inquiry

Product DetailsDrawing&SpecificationRelated ProductsInquiry
Product Details

Cylindrical vitrified diamond grinding wheel is used for PCD tools grinding with large cylindrical grinding machines. The PCD tools in automotive industry include PCD profile cutters, PCD reamers and PCD milling cutters.

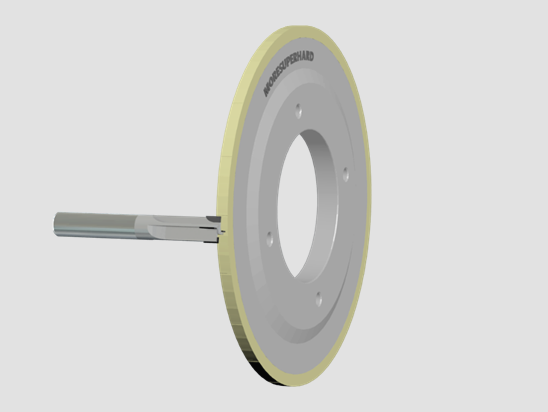

cylindrical diamond grinding wheel

Advantages Of Cylindrical Diamond Wheels
* Enjoys strong sharpness, high self-sharpening good surface finish after grinding.
* High efficiency,Less dressing time,Long service life and stable quality

Application examples of precision measurement of PCD cutting edges
The precision machining process of grinding machines is often required to achieve very precise dimensional tolerances, geometric tolerances and extremely high surface quality. The cutting edge of the PCD tool is repeatedly measured, ground, measured, etc. The diameter tolerance can reach +/-1.5 microns, a very good result.

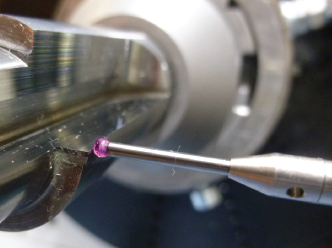

precision measurement of PCD edge



Drawing&Specification

Specifications Of  Cylindrical Diamond Wheels

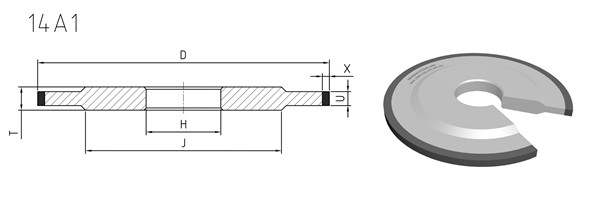

14a1 diamond grinding wheel

Model D (mm) T (mm) H (mm) X (mm) U (mm)
3A1 & 14A1 300 20 127 10 10
350 20 127 10 6
400 35 152.4 10 7
Other specification can be made according to customers requirement. info@moresuperhard.com
