Diamond and CBN mounted pins for drawing die

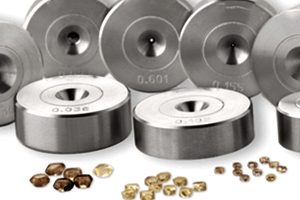

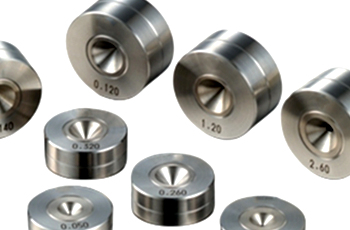

SSCD drawing die

SSCD dies are an excellent option for manufacturing fine and ultra-fine wires. Single crystal diamond dies provide superior quality, hardness, accuracy and a long service life for each die. SSCD dies with an excellent surface finish, enabling high drawing performance and low power usage due to low friction.

ND drawing die

ND dies are similar to SSCD and are an excellent option for manufacturing fine and ultra-fine wires. Natural diamond dies provide superior quality, hardness, accuracy and a long service life for each die. Produce precision wire withND drawing die can achieve an excellent surface finish, enabling high drawing performance and low power usage due to low friction.

PCD drawing die

PCD dies are ideal for long production runs and for drawing abrasive wire materials as they outlast TC, SSCD and ND dies. Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions.

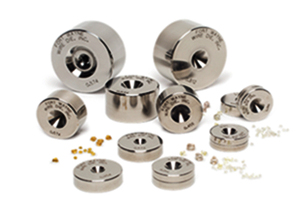

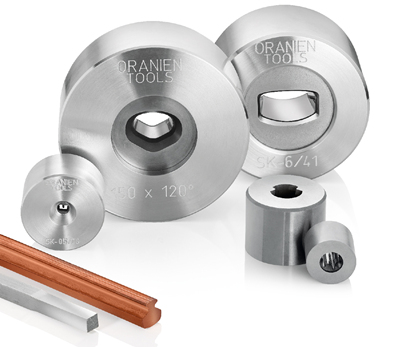

Tungsten carbide drawing die

TC drawing dies are an excellent option for manufacturing ferrous rod-size wires, and for relatively short production and trial runs. Tungsten carbide blanks have extreme density, hardness, and strength. Drawing dies are available in round sizes 0.1 mm (.004″) and larger.

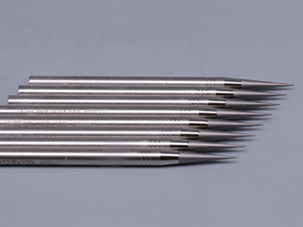

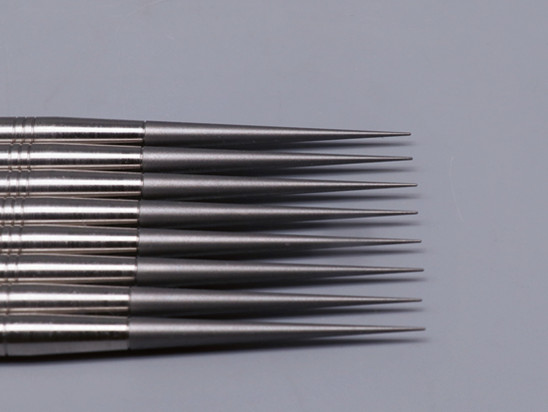

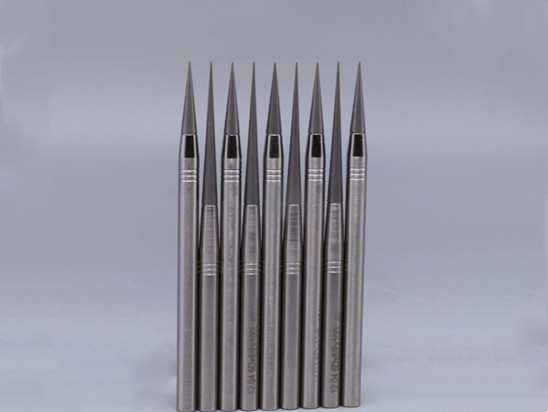

Diamond and CBN Grinding Pins for  Drawing Dies

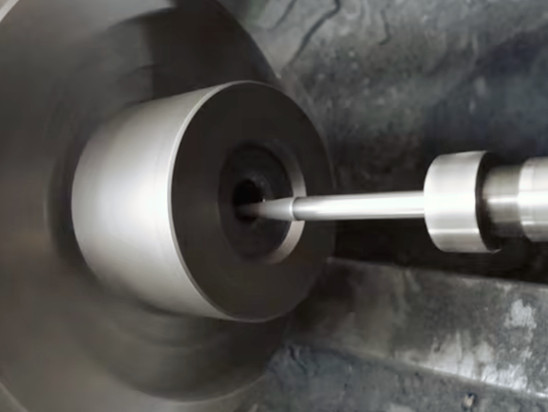

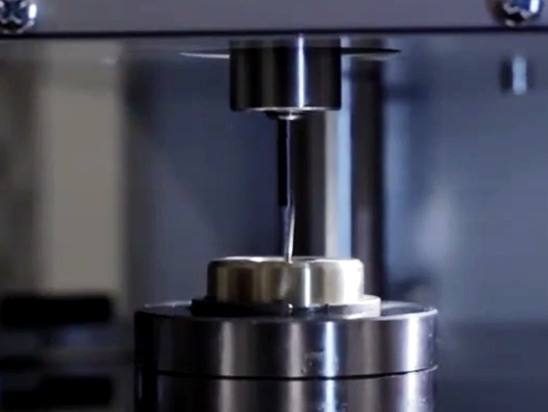

Diamond plated taper pins are ideal for grinding or ripping inner hole of tungsten carbide drawing dies for the wire and tube industries, and for cold heading dies. Grinding pins with big angle are used for basic grinding and grinding pins with small pins are used for fine processing. The smaller the cone angle is, the sharper the pin is. You get fast, efficient and precise grinding, with long wear.

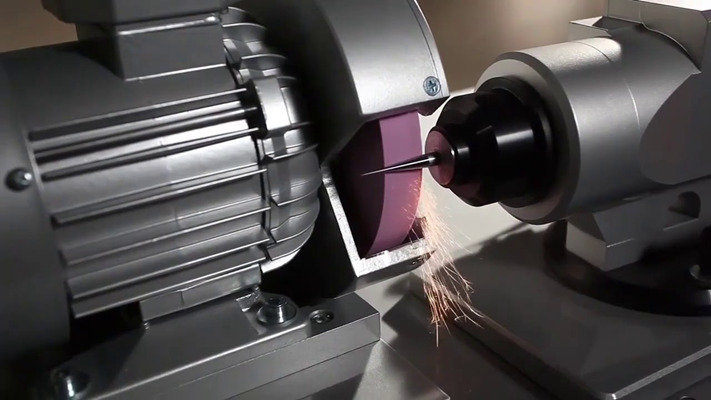

Dressing wire industry drawing die

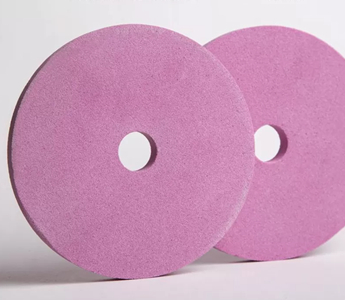

Moresuperhard can make SSDC/ND/PCD/TC drawing die, also can provide grinding and dressing tools for wire drawing die. After a period of time usage, the mounted pins will wear so  it need to be dressing, Moresuperhard chrome corundum grinding wheel can dressing diamond /CBN mounted pins to mantain high precision, all sizes can be customized.
