Cylindrical grinding wheel for piston shaft

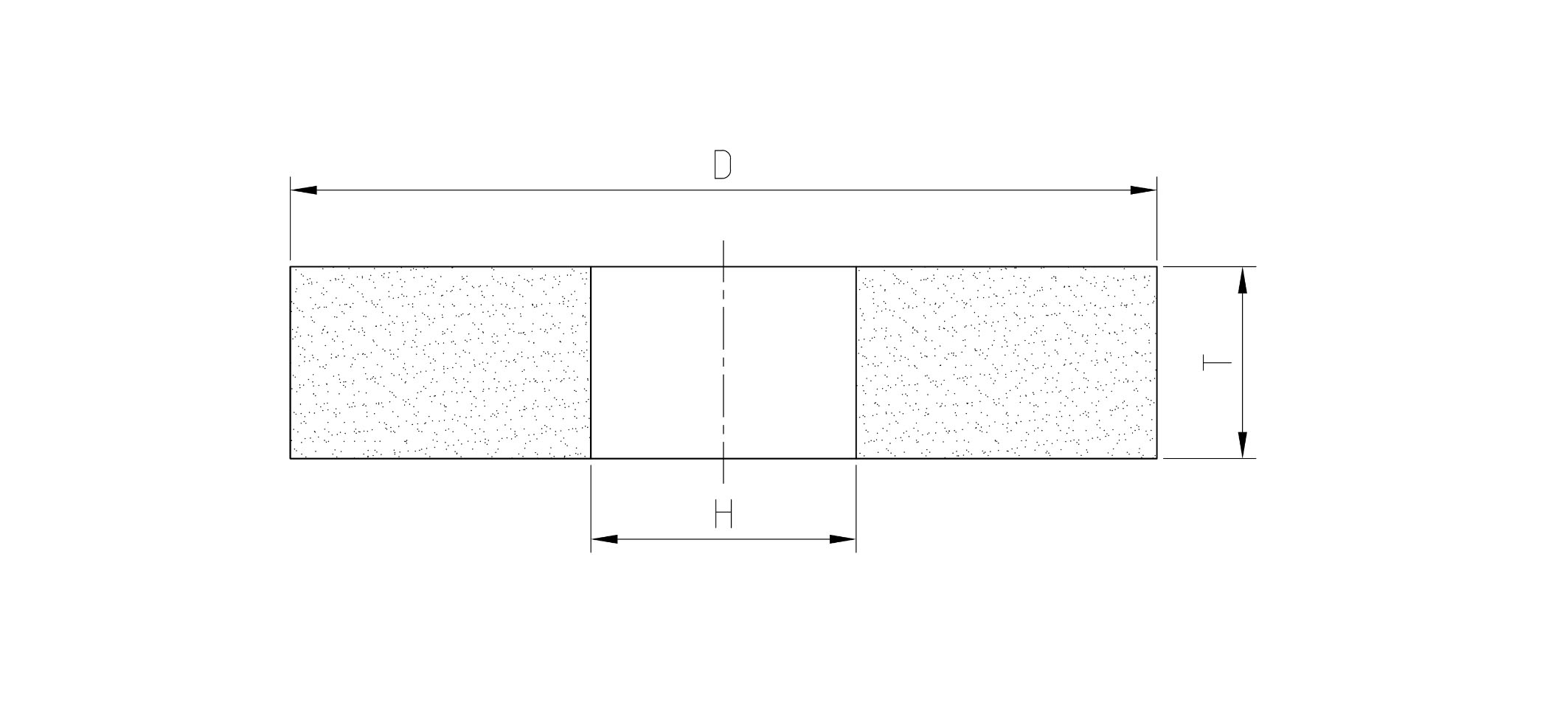

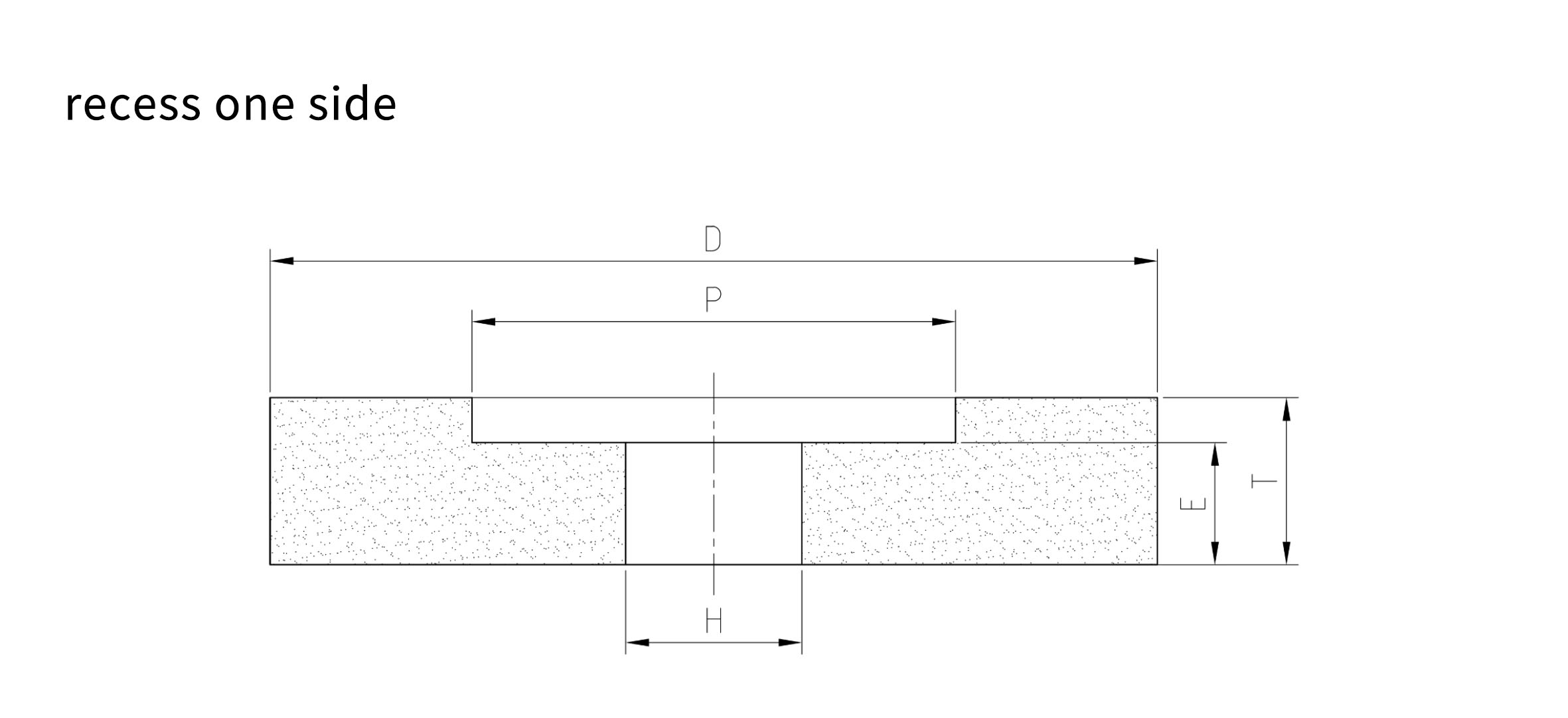

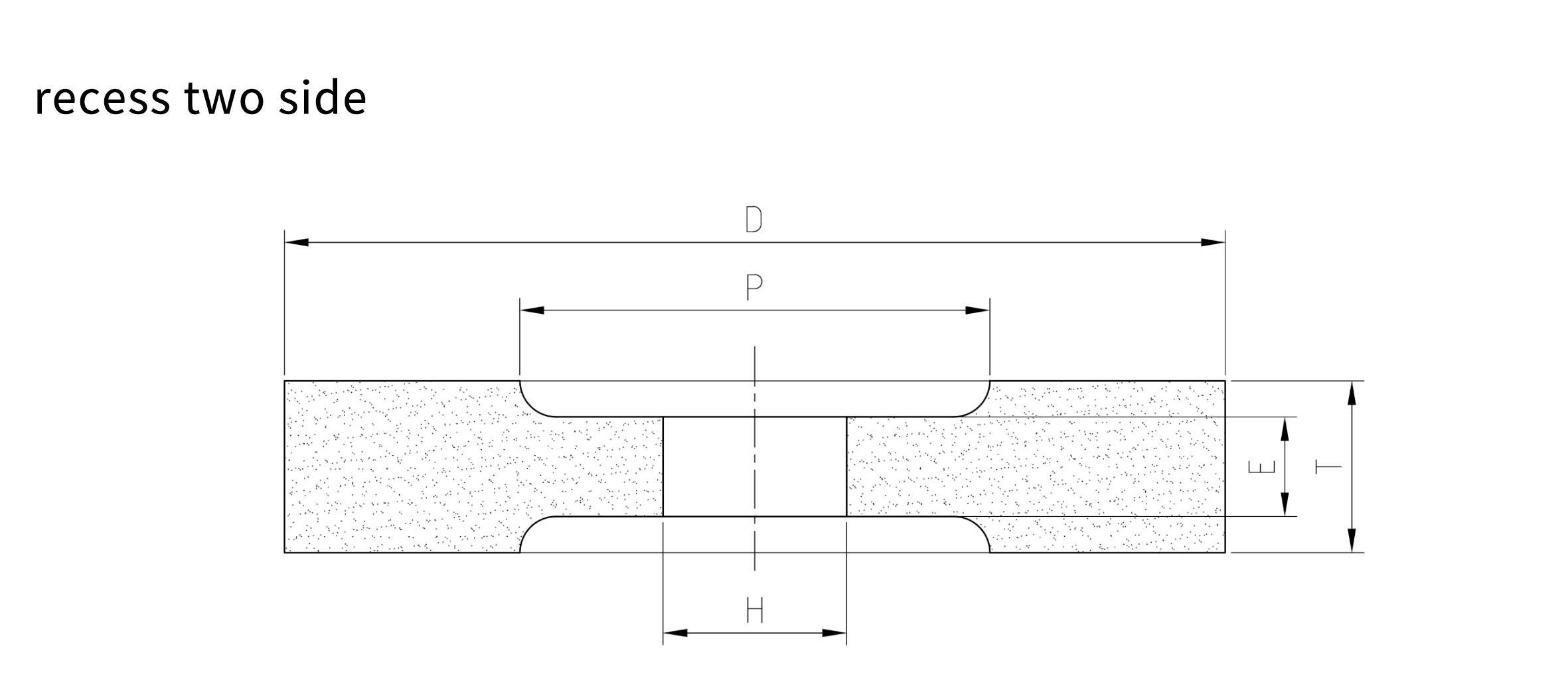

Shape: flat, recess two sides, recess one side
Diameter:300-610mm
Hole:203.4-254-304.8
Thickness: 25, 30, 40, 50, 60, 75, 80, 90, 100
Abrasive: BA,WA
Product Details

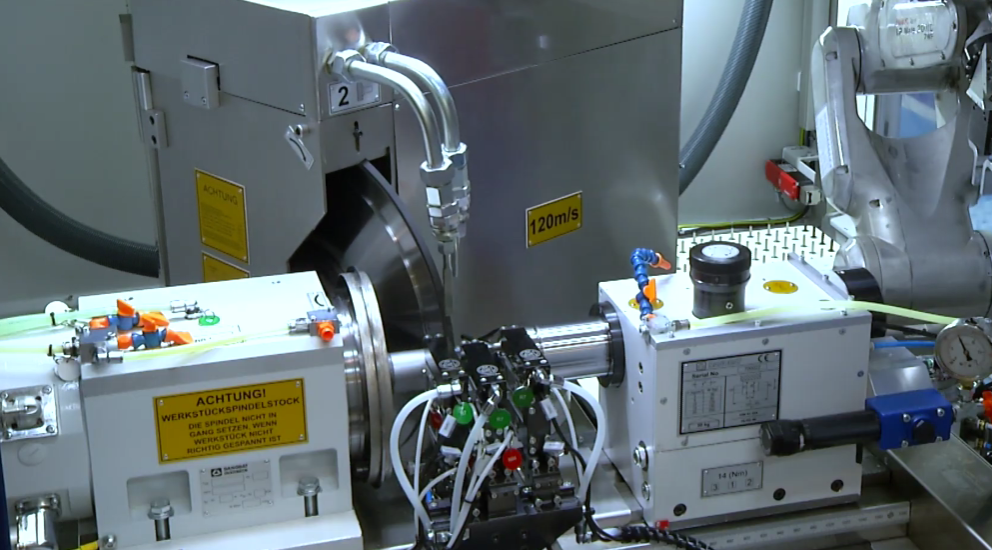

Cylindrical grinding wheels can be used for long hydraulic cylinders, automotive parts, gears, rollers, tool holders, journals, crankshafts, etc.

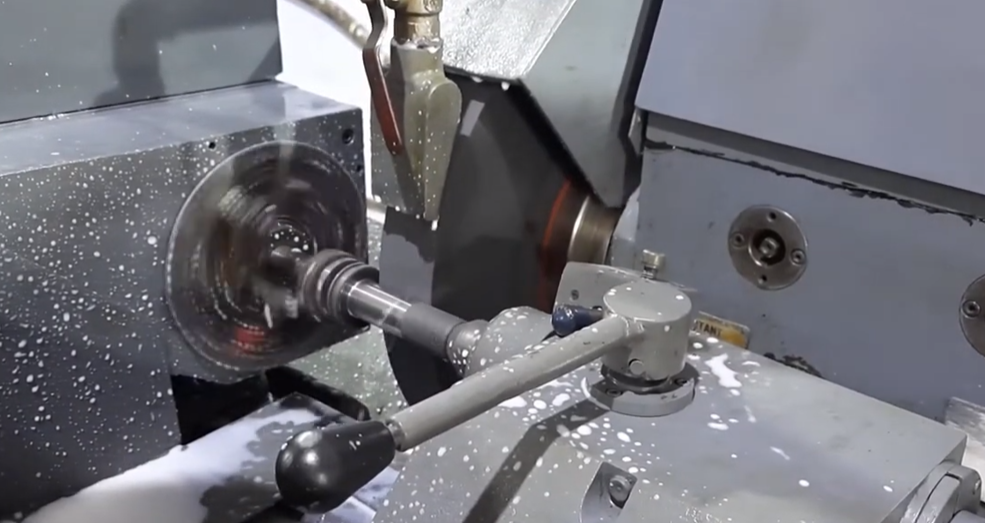

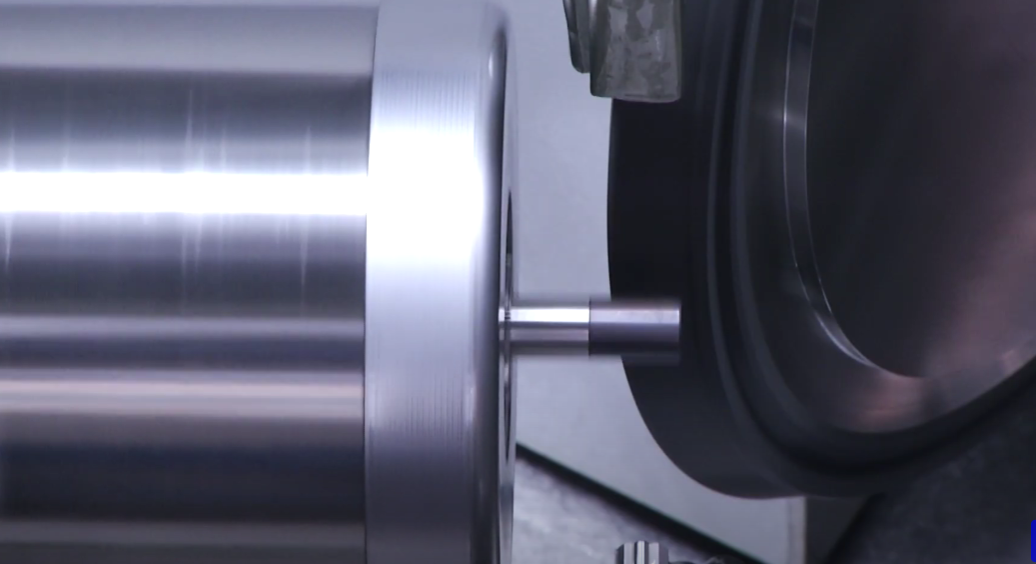

When cylindrical grinding the piston shaft, the workpiece is prone to tool release and elastic deformation, affecting the piston rod’s accuracy. The grinding wheel is generally selected as follows: abrasive white corundum, particle size 60#, medium to soft or medium hardness; in addition, the grinding wheel width should be narrower to reduce the radial grinding force. Pay attention to the selection of grinding amount during processing, especially the grinding depth should be small.

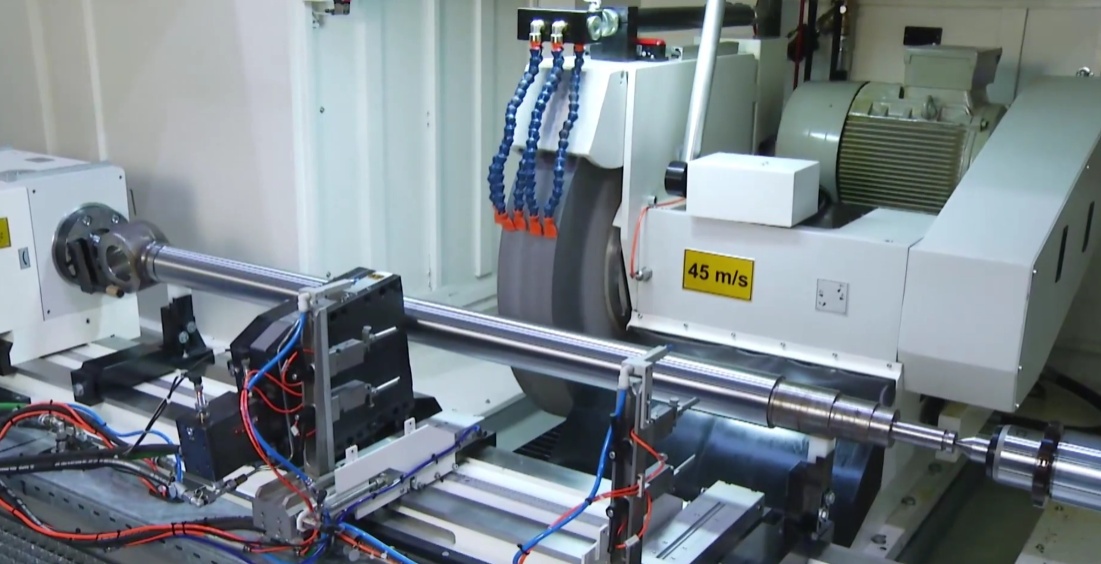

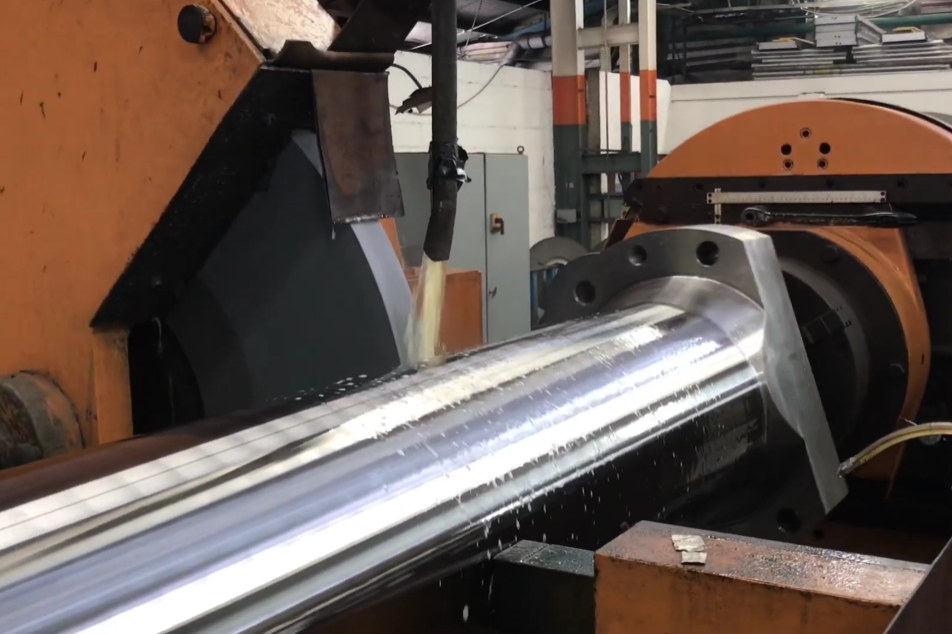

Shape of cylindrical grinding wheel for hydraulic cylinder:

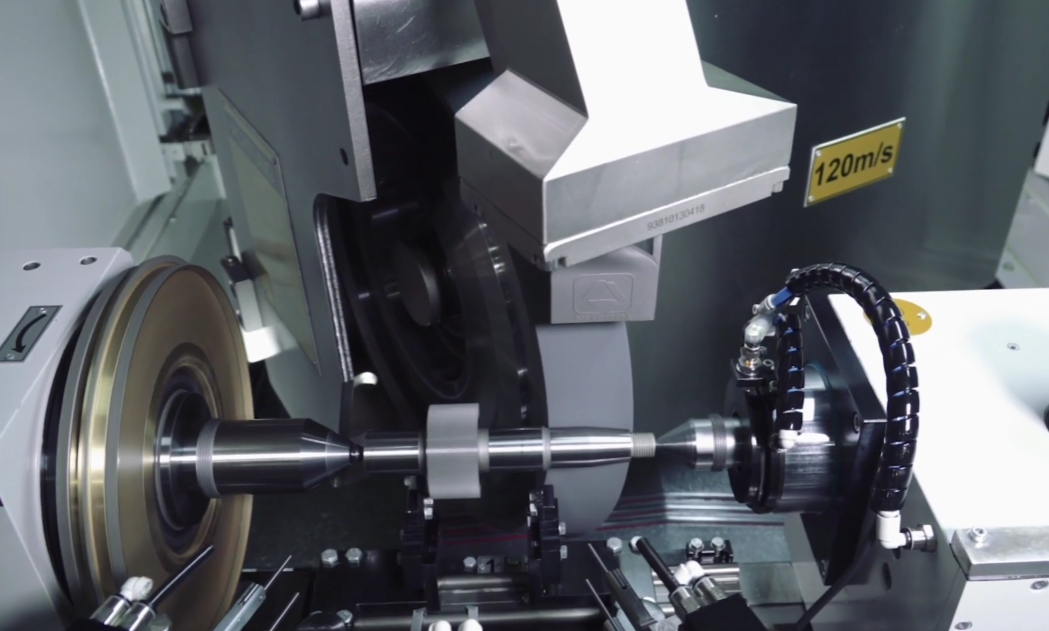

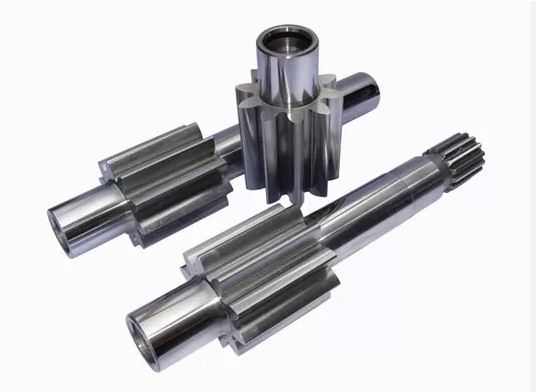

Cylindrical grinding gear pump shaft
Drawing&Specification
|
BA |
||||
| Diameter | Thickness | Hole | Grit | Hard |
| 300-350 | 25-30-40-50-60
75-80-90-100 |
203.4-254-304.8
|
98A463Rough/Medium/Fine
98A543Medium/Fine 98A6001 98A6080 |
J5/K5/L5/N5
|
| 400-450 | ||||
| 508-610 | ||||
| WA | ||||
| Diameter | Thickness | Hole | Grit | Hard |
| 300-350 |
25-30-40-50-60 75-80-90-100 |
203.4-254-304.8 |
98WA4654
98WA5460 98WA6001 98WA6080 98WA8001 98WA1020 |
J5/K5/L5/N5 |
| 400-450 | ||||
| 508-610 | ||||
