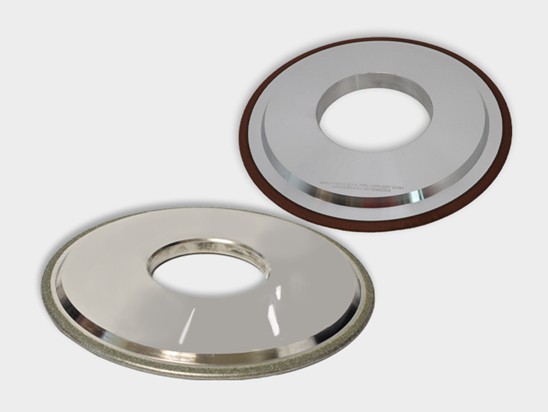

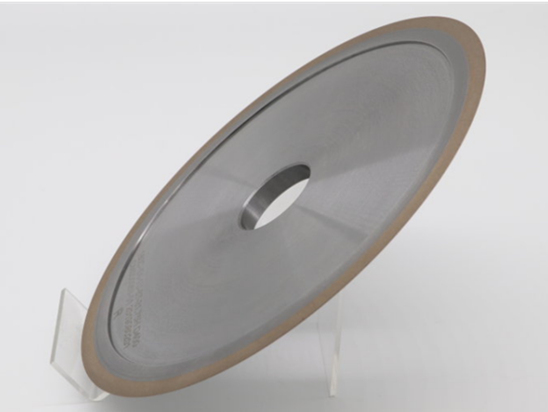

Diamond and CBN grinding wheel for Roll grinding

Electroplated/metal/resin diamond & CBN wheel

Type: 1A1,1F1,4B9,14FE1B

Roll Cylindrical and Groove grinding

Grinding machine: DKD,Herkules, Valmetetc,Wendt,etc

Excellent surface finish after grinding
High profile stability
Long life

Send E-mail Inquiry

Product Details

Control the grinding process of roll is the key to the surface quality control of roll. A good grinding process can not only meet the production needs of high-quality products, but also effectively reduce the roll loss and improve the production efficiency of rolling mill unit.There are many kinds of rollers, commonly used roller varieties are cast steel roller, cast iron roller and forging roller three categories. There are also a small number of carbide rolls on the profile mill.

Moresuperhard can provide completed grinding solution for roll industry, including reisn / metal /electroplated diamond & CBN grinding wheel for cylindrical grinding and groove grinding of roll.

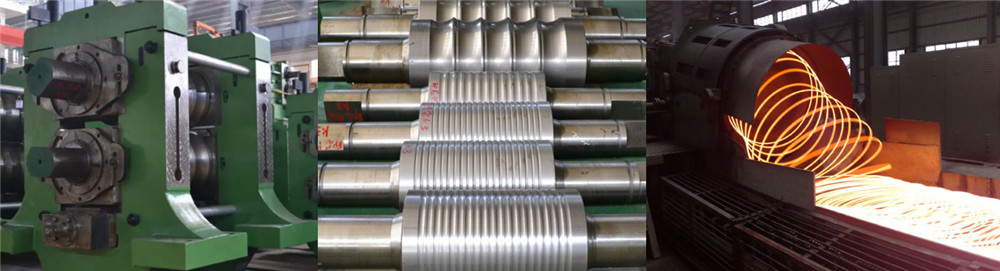

Application of roll:
The roll is the tool that produces plastic deformation of metal, and it is an important consuming part that determines the efficiency of rolling mill and the quality of rolling material. Roll is an important part of rolling mill. It uses a pair or a group of rollers to roll and roll the steel. It mainly bears the influence of dynamic and static load, wear and temperature change during rolling.

Grinding machine:
Moresuperhard diamond grinding wheel for roll can match various brand roll ring cylindrical grinding machine and cylindrical grinder, such as DKD,Herkules, Valmetetc,Wendt,etc.

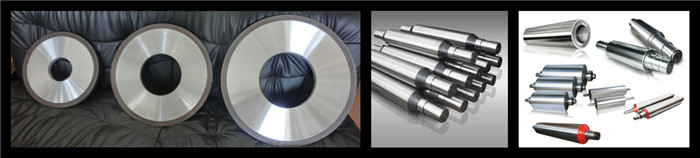

Roll grinding wheel

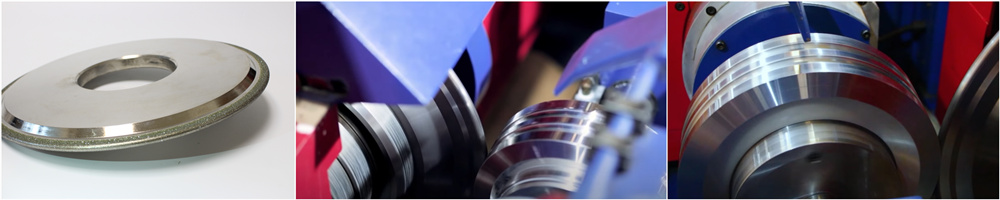

Diamond & CBN grinding wheel for roller process
* Diamond Grinding Wheel used for WC hard alloy roll ring process.
* CBN Grinding Wheel used for HSS Roller process.
* Hole-shape Grinding Wheel: for roll ring notch and finishing.
* Ex-circle grinding Wheel: for ex-circle grinding and cutting of roll ring.
* Inverted-angle Grinding Wheel: for inverted-angle of roll ring. roll grinding wheel

roll grinding wheel

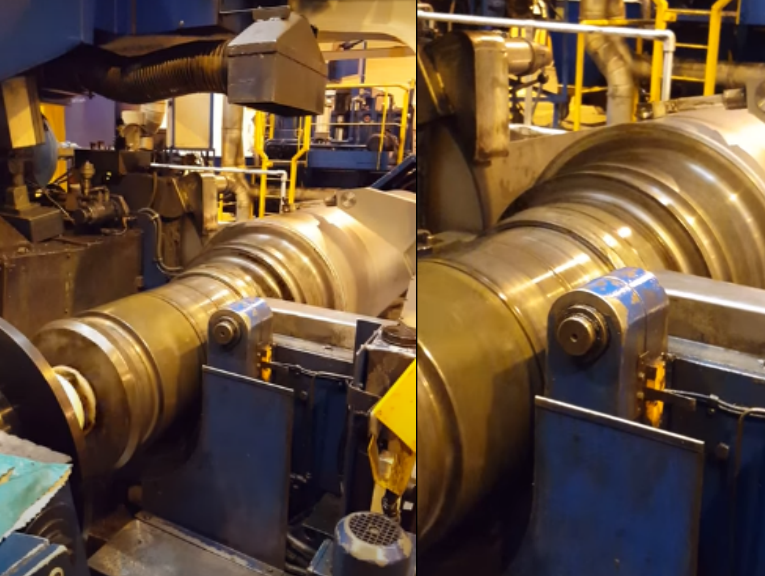

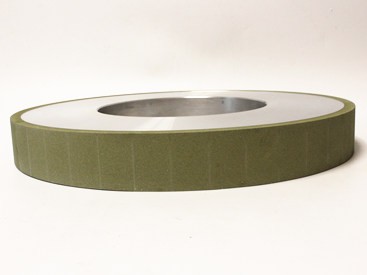

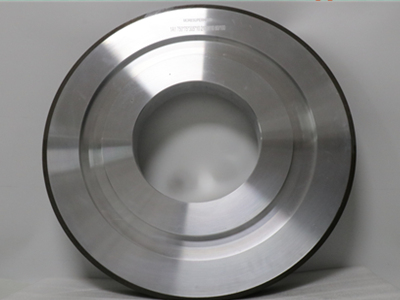

Big- diameter resin roll grinding wheel
More Superhard manufactures a wide variety of standard and custom grinding wheels up-to 36″ .
Big – diameter resin roll grinding wheel are produced by block pressing or segment pressing , aggressive cut, great feed per pass, heavy stock removal provide greatly improved grinding performance ideal for accident rolls and cracked rolls without scratches or chatters.

Application of resin diamond grinding wheel for roll:

Resin diamond grinding wheel can grind tungsten carbide thermal sprayed rolls, chrome oxide thermal sprayed roll, high speed steel rolls , hard alloy rolls and stainless steel rolls.

od big diamond grinding wheel

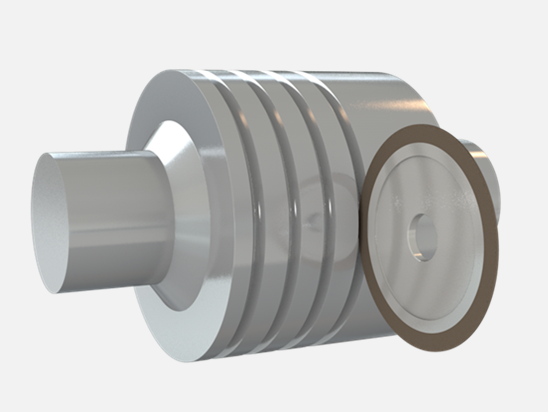

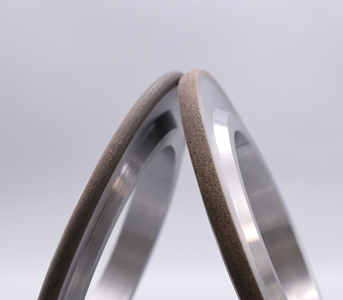

Metal 4B9 diamond& CBN grinding wheel for roll fluting
Roll grooves were traditionally for light or thin-walled pipesus and a wide variety of pipe sizes and wall thicknesses without compromising the performance of the pipe joint or reducing the flow rate.

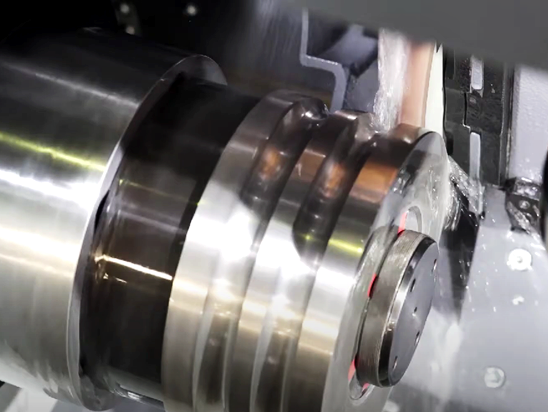

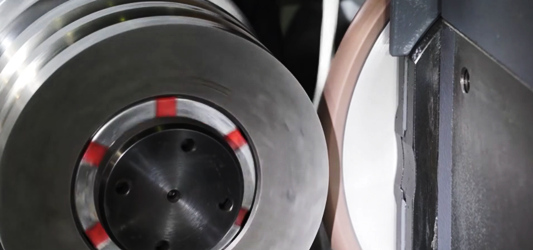

roll grinding

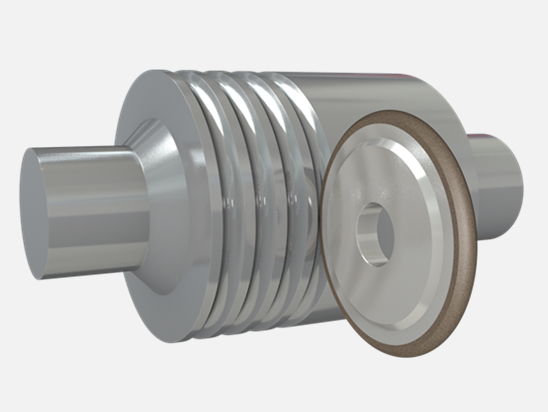

Moresuperhard 4B9 metal diamond grinding wheel for grinding groove of grooved roll, can high efficiency grinding groove and has long life.

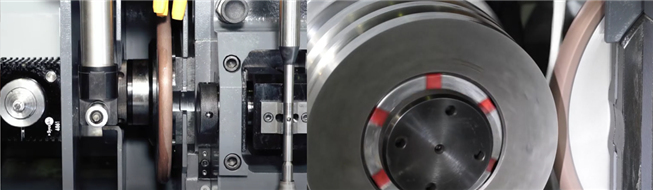

grinding wheel for roll grinding

Points need to be noticed:
1. Guaranteed to be accurate in each size.
2. The abrasive layer never collapse during grinding.
3. The stability of the wheel between batches.

Case of 4B9 metal diamond grinding wheel for grooved roll

Diamond grinding wheel	Metal diamond grinding wheel
Size of grinding wheel	D150xT8xW10xX1
Workpiece	carbide & HSS Rolls
Grit	400# & 800# & 1200# for fine grinding.

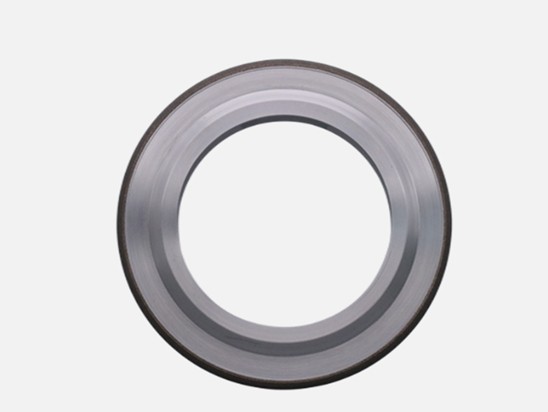

Electroplated diamond grinding wheel for groove grinding of grooved roll :

Diamond grinding wheel Metal diamond grinding wheel Size of grinding wheel D150xT8xW10xX1 Workpiece carbide & HSS Rolls Grit 400# & 800# & 1200# for fine grinding. Electroplated diamond grinding wheel for groove grinding of grooved roll :

Advantages of grinding wheel for roll :
* High grinding speeds for higher productivity
* Excellent surface finish after grinding
* High profile stability
* Long life
* Very low machine load

How to grinding method?

Grinding method	Grinding wheel feed	Roll rotational speed
Rough grinding steel roll	25-35m/s	30-50m/min
Fine grinding chilled roll	20-25m/s	15-30m/min
Ultra-finish/mirror grinding	15-20m/s	10-15m/min

How many kinds of rolls?

According to the shape of roll body：
Rolls are divided into cylindrical and non-cylindrical rolls, the former is mainly used for sheet, strip, profile and wire production, and the non-cylindrical rolls are mainly used for pipe production.

According to the type of rolling mill:
(1) Flat roll
That is, the roll of strip mill is cylindrical. Generally, the roll of hot rolled steel plate mill is made into micro-concave shape. When it is heated and expanded, a better shape can be obtained. The roll of a cold rolling plate mill is made into a slightly convex shape. During rolling, the roll bends to obtain a good shape.

(2) Grooved roll
Grooved roll used for rolling large, medium and small steel, wire and roughing. A groove is carved on the roll surface to shape the rolled piece.

(3) Special roll
Special roll used in steel tube mill, wheel mill, steel ball mill and punch mill. The roll of this mill has a variety of different shapes, such as steel pipe rolling rolling principle of rolling roll conical, drum or disc shape.

According to the product type, the rolling process can be divided into four basic types: strip rolling, pipe rolling, profile rolling, and rod and wire rolling; according to the production process, it can be divided into hot rolling and cold rolling; according to thickness, it can be divided into four basic types. Thin plate (thickness <4mm), medium plate (thickness 4~20mm), thick plate (thickness 20~60mm), extra-thick plate (thickness>60mm, up to 700mm thick). In actual work, medium and thick plates are collectively referred to as “medium and heavy plates”.

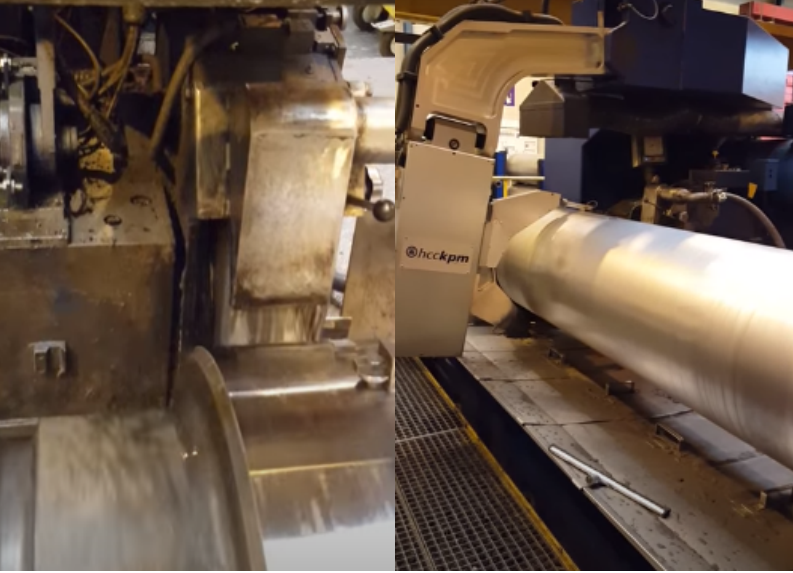

Case of Resin CBN grinding for roller

resin CBN grinding wheel for roll roll grinding

Application	Cylindrical external grinding
Grinding Wheel sizes	1A1 D750-70T-10X-3R-304.8
Machine	HERKULES
Coolant	Emulsion
Wheel speed	40M/S
Work-piece speed	20 40rpm
Work-piece	Cylinder Ø550 x 2500mm
Material	Hardened steel
Hardness	62HRC
Stock removal	0.2mm/Ø
Roughness achieved	Ra0.8
Specification CBN wheel used	CBN 107
Results	Time process reduced about 50% compared with Conventional grinding wheel

Drawing&Specification

The parameters of resin roll grinding wheel

1A1 diamond grinding wheel	D(mm）	H(mm)	T(mm)	X(mm)
	600	203.2	25	25
	600	203.2	50	10
	600	203.2	50	25
	750	305	40	10
	750	305	75	10
	800	305	75	10
	914.4		25/50	10/25
* Other specifications can be produced according to customers’ requirement
