Diamond and CBN Honing Stone

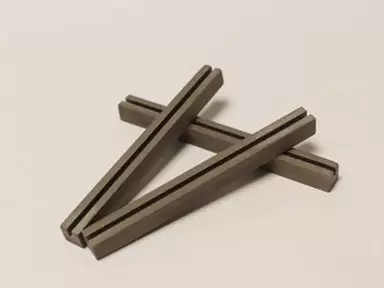

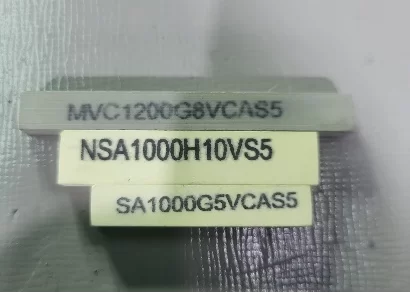

Diamond & CBN honing stone, honing stick

Bonded: metal bond

Honing hole size: Φ1 ~ 1200mm;

Honing hole depth: 1 ~ 20000mm;

Dimensional accuracy: 0.002 ~ 0.01mm;

Surface roughness Ra: 0.025 ~ 1.6um.

Materials of workpiece: carbide,glass and ceramic,cast iron,alloy steel, tool steel, die steel, hardened steel copper, aluminum alloy and other abrasive resistant materials

Applicable area: fine grinding engine pump body, hydraulic cylinder bore, hydraulic pump inner bore, cylinder block, valve,oil cylinder nozzle, the inner surface of the spline bore and cylinder hole and blind hole of other series.

Send E-mail Inquiry

Product Details

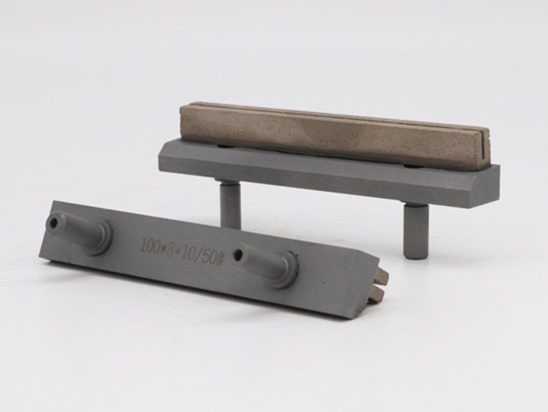

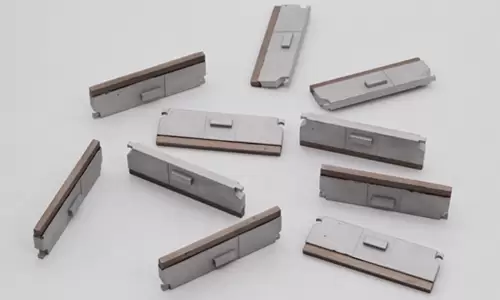

More Superhard provides superabrasive diamond and CBN honing stone , honing sticks for honing machines of almost all renowned honing brands (Sunnen, Nagel, Gehring, Belden, AccuCut, Engis, and other types of high-production honing equipment ). Our diamond and CBN honing stones are available for precisiom bore finishing.

Common models:

K Series: K3, K4, K5, K6, K8, K10, K12, K16, K20, AK20

L Series: L3, L4, L5, L6, L8, L10, L12, L16, L20, AL20, BAL20

P Series: P10, P20, P28, R28, HP28

BL Series: BL3,BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20

Y series: Y8/YY8, Y10/YY10, Y12/YY12, Y16/YY16, Y20/YY20, Y32/YY32, Y44/YY44, Y56, Y72, Y88, Y104

Applications Of Diamond honing stone, CBN honing sticks
Materials of workpiece:

Diamond and CBN honing stick can be suitable for the processing of metal and non-metal materials. Such as cast iron, hardened and unhardened steel, hard aluminum, bronze, brass, hard chromium and carbide, glass, ceramics, crystals and sintered materials.

Applicable area:

Diamond and CBN honing sticks can be used for fine grinding engine pump body, hydraulic cylinder bore, hydraulic pump inner bore, cylinder block, valve,oil cylinder nozzle, the inner surface of the spline bore and cylinder hole and blind hole of other series.

1. Automobile and motorcycle engine cylinder liner, connecting rod, pinion, brake drum, valve rocker arm, steering knuckle, etc

2. Air conditioning, refrigerator, compressor, diesel engine, hydraulic industry, etc

3. Aerospace hydraulic valves and cylinder blocks, piston pumps, fuses, etc

Applicable honing machine:

Sunnen, Delapena, Nagel, Gehring, Kadia, Engis, Pemamo, Degen, Nissin, Fuji, Toyo, Micromatic, General Hone, Mas, Honitech etc.

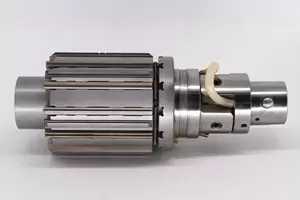

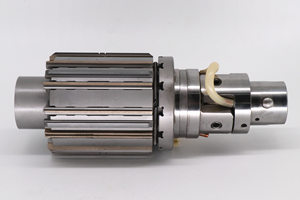

diamond honing tools

Grinding characteristics:

No deformation, not easy to break, efficient grinding, high precision, good product consistency.

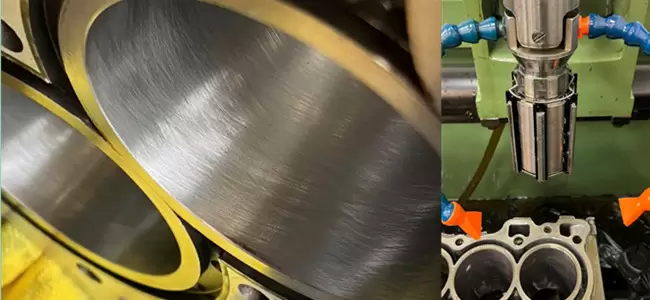

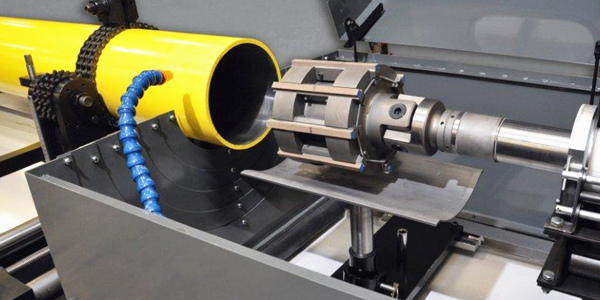

Case of metal bond diamond honing stick for sleeves

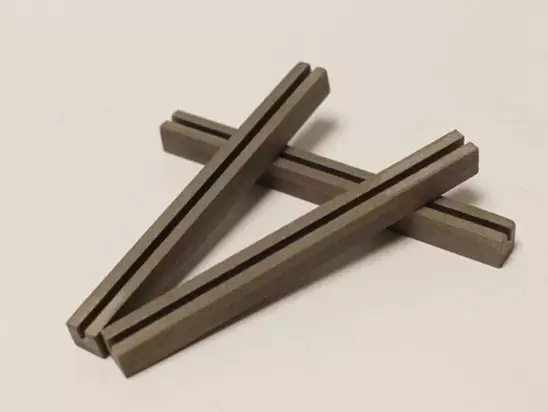

honing sleeve honing stick

Honing stone bond	Metal bond
Material	CBN
Grit size	600#
Application	For sleeves honing
Machine brand	Sunnen
Suitable machine： Sunnen, Gehring, Nagel, Nissin Honing Machines

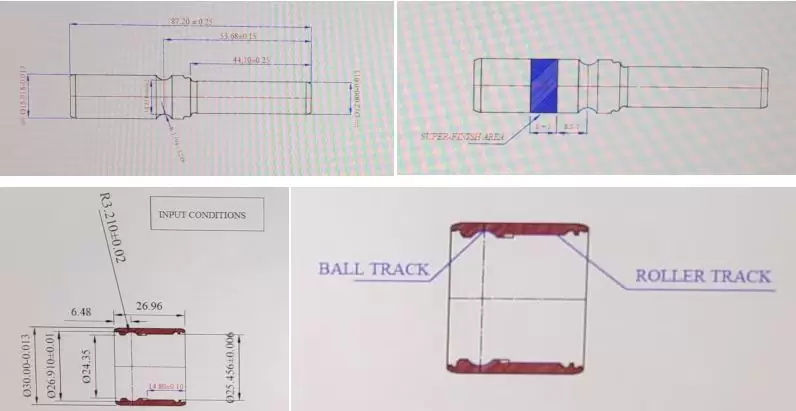

Drawing&Specification

The Specifications Of Cylinder Diamond Honing Stone

Model	Size			Grit
diamond and CBN honing stone honing stick	L (mm)	Width (mm)	Height (mm)	120#～150# 150#～240# 240#~W40 W40~W20 ＜W20
	16-35	2, 3, 4, 6	2, 3, 4
	40, 50	2, 3, 3.5, 4	1, 1.5, 2, 2.5, 3, 3.5, 4
	60, 70	1.5, 2, 3, 3.5, 6, 8	2, 2.5, 3, 3.5, 4, 6.5, 7, 8
	80, 90	3, 4, 5, 6, 8, 9, 9.5	3, 4, 5, 6, 7, 8, 10
	100, 120	2, 3, 5, 6, 8, 9, 12, 15	3, 4, 5, 6, 7, 8, 10, 12, 15
	140, 150	3, 5, 6, 8, 9, 12	4, 5, 6, 7, 8, 10, 12
	200	8, 10, 15, 20, 40	8, 10, 15, 20
Other specifications honing stone can be made according to customers’ requirement. Email: info@moresuperhard.com

The cases of diamond cbn honing stones, honing sticks

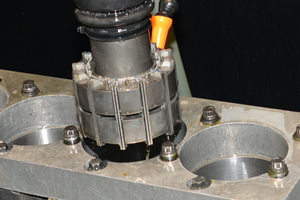

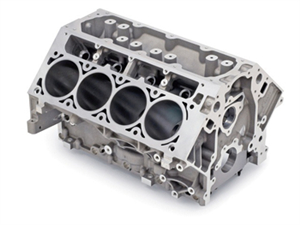

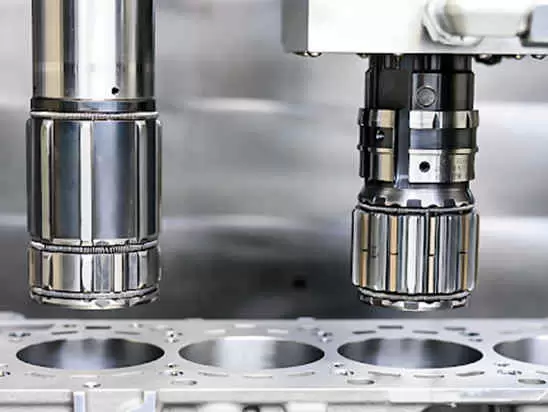

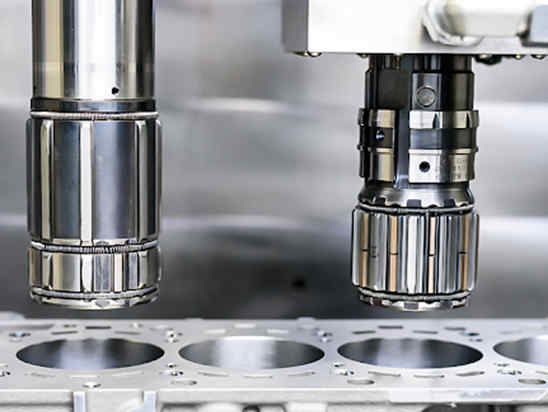

Honing Cylinder Block

Honing Cylinder Block

Workpiece material	Gray iron
Honing Machine	Gehring, Nagel
Grinding Tolerance	<= 80μm
Mesh	Rough D251-D91
	Semi D76~D30
	Fine D25~D8
Surface finish	Ra 0.2 – 1 μm
Liquid	Honing oil
Bore diameter, roundness, surface roughness and waviness meet the requirements

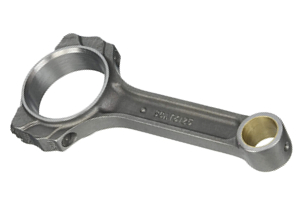

Honing Connecting Rod Mesh: from D151 to D25

Improve roundness and straightness
Satisfy even the most demanding requirements for size and surface finish
Deliver improved performance between mating parts
