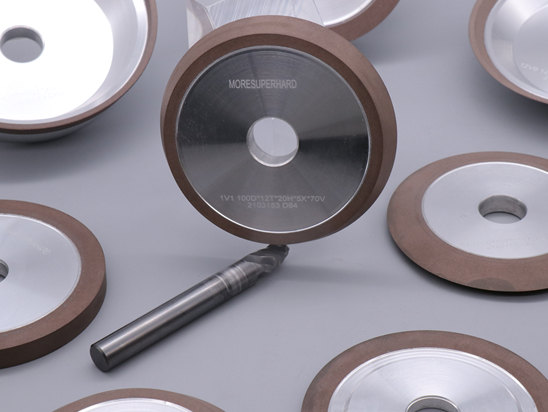

Diamond Gashing Grinding Wheel for Round Tools

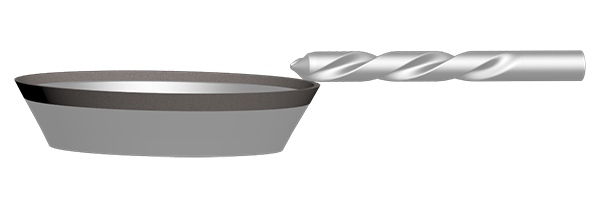

Gashing wheel is widely used for grinding a slot or notch along the cutting face to allow for chip flow
Excellent surface quality
Model: 1V1, 12V9, 14V1
Application: grinding a slot or notch along the cutting face to allow for chip flow on tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.
Product Details

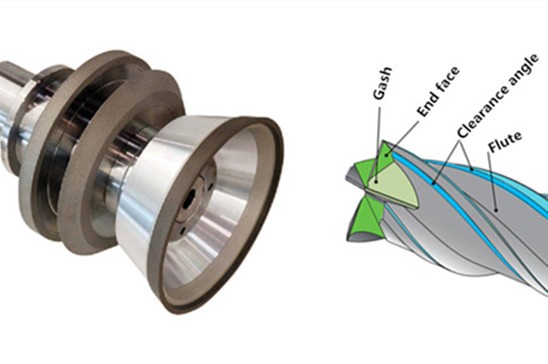

Gashing requires higher profile consistency (of the grinding wheel) in comparison to fluting, due to the high edge quality required of carbide tools.

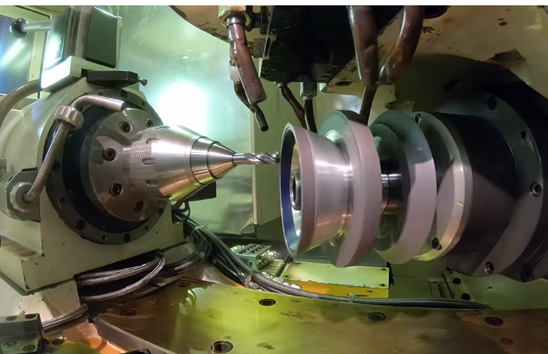

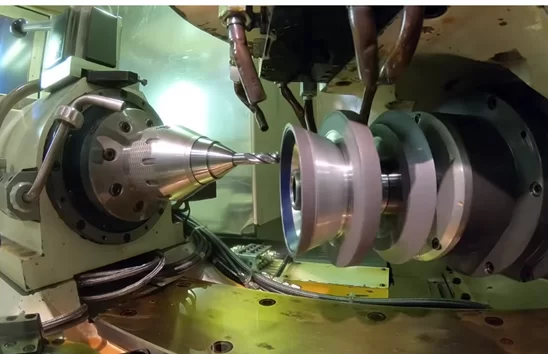

Gashing grinding wheels are widely used for grinding a slot or notch along the cutting face to allow for chip flow on tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.
Advantages of cnc diamond & cbn grinding wheel
1. Excellent surface quality
2. High stock removal
3. Low grinding forces
4. Excellent Form Holding
Drawing&Specification
| Gashing Grinding, superior tool edge quality, High stock removal, Maintaining wheel profile | |||||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V° |
1V1 |
75 | 6,8,10,12,15 | 6,10 | 20 | 45 |
| 100 | 10, 15 | 5, 10 | 20 | 45 | |
| 125 | 4, 10, 15 | 5, 6, 10 | 20 | 45 | |
| 150 | 6,8,10,12,15 | 5,6,10 | 20 | 45 | |
12V9 |
D (mm) | X (mm) | U (mm) | H (mm) | |
| 75 | 3 | 10 | 20 | ||
| 100 | 3 | 10 | 20 | ||
| 125 | 3 | 10 | 20 | ||
| 150 | 3 | 10 | 20 | ||
| Other specification can be made according to customers requirements. | |||||
