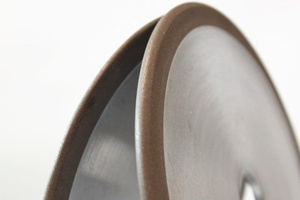

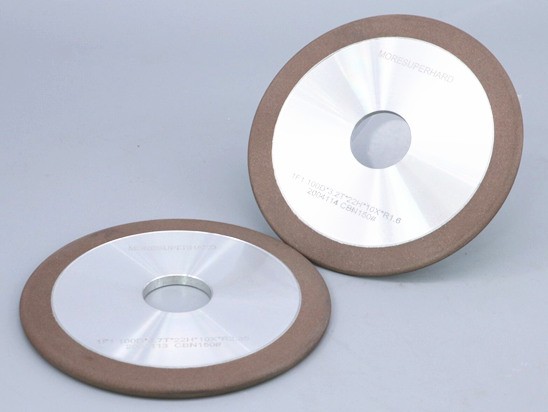

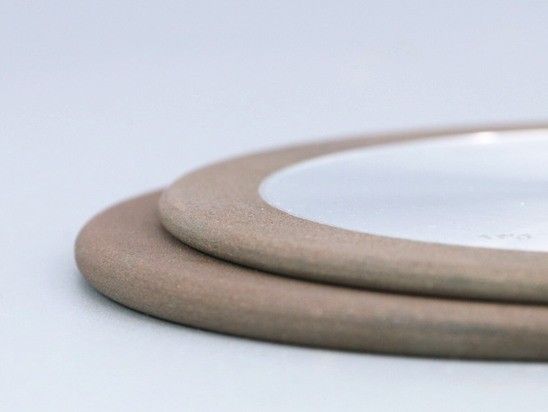

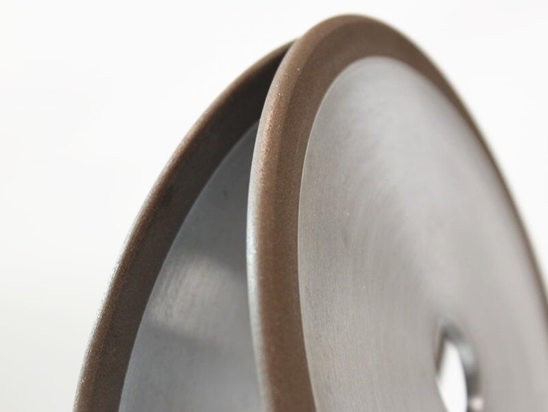

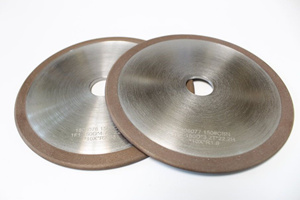

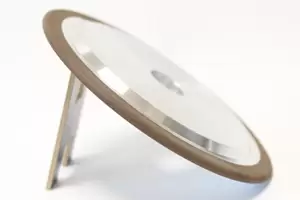

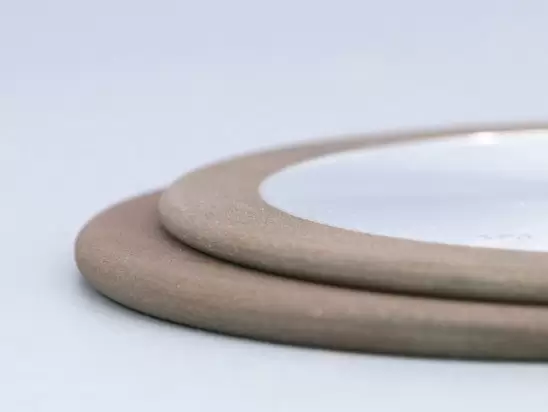

Diamond Grinding Wheel for Chainsaw Sharpening

Diamond Chainsaw Grinding Wheel for carbide carbide tipped chain saw sharpening

CBN grinding wheels for HSS steel chain sharpening

Diameter: 4″ (104 mm), 5 3/4″ (146 mm) and 8″ (203 mm)

Inner Hole: 7/8″ (22,23 mm), but every wheel comes with the reducing spacer which reduces bore size to 12 mm; For 8″ (203 mm) wheels bore diameter is 1″ (25,4 mm)
Pitches used for chainsaw: 1/4 inch, 0.325 inch, 3/8 inch


Product Details

Moresuperhard diamond and CBN chainsaw sharpening wheels have good surface finish, long life. The superabrasive grinding wheels are suitable for chain saw sharpening in woodworking industry.

Suitable machines of chainsaw grinding wheel
Timberline, Oregon, Granberg Bar-Mount, Timber Tuff, Blue Max, Stihl,Sportsman Earth,Husqvarna 653000035,Electric Grinder and others chainsaw sharpener

Applications of chainsaw sharpening wheel
* Diamond wheels for carbide tipped chain sharpening
* CBN wheels for steel chain sharpening

chainsaw sharpening wheels chainsaw sharpening wheels

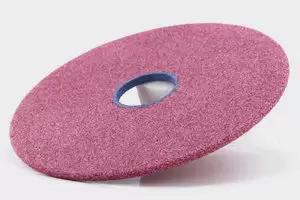

Why use diamond & cbn chainsaw wheel to replace pink grinding wheel
cbn wheel for chainsaw sharpening cbn wheel for chainsaw sharpening
* Long service life compared with the pink aluminum oxide grinding wheel
* Great rough roughness
* Not burn and scratch the profile of the chain saw teeth
* Environmentally friendly and no too much dust

Drawing&Specification

Specifications of chainsaw sharpening wheel

1f1 cbn grinding wheel

Diameter (inch /mm) Inner Hole (inch/mm) Thickness(inch/mm) R(mm)



Pitch saw chain(inch)
1F1 4-1/8″ , 100mm 7/8″, 22mm  1/8″, 3.2mm 1.6 0.325
4-1/8″ , 100mm 7/8″, 22mm 4/25″, 4.0mm 2 0.325
4-1/8″ , 100mm 7/8″, 22mm 4.7mm 2.35 0.404
3F1 6”, 150mm 7/8″, 22mm 4.5mm 2.25 0.404
Special size can be produce according to pitch saw chain.
