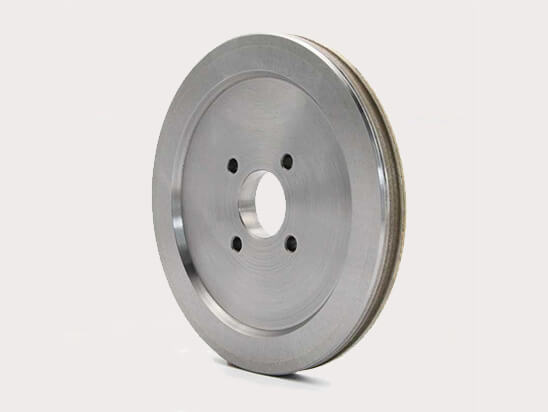

Diamond Pencil Edge Grinding Wheel for Auto Glass
Accurate Aperture
High pass rate
Even smoothness
Long service life
Product Details

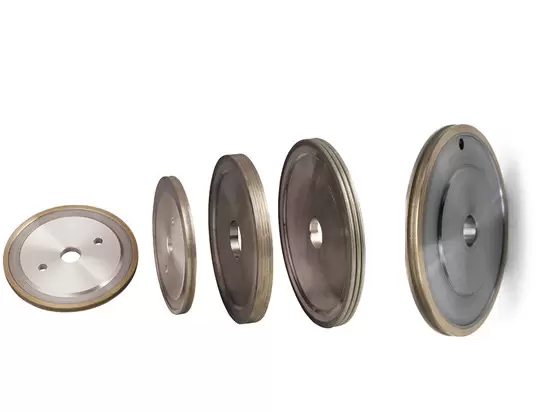

Metal Bond Diamond wheels can be used for processing high quality side windows glass, front and back windshield.
Application of diamond pencil edge grinding wheel

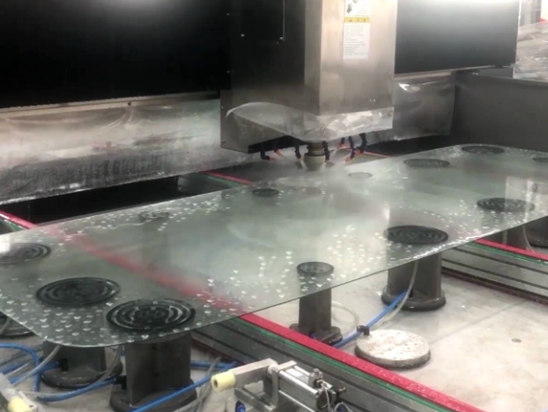

For rough grinding and fine milling of auto glass. Mainly used for shape edging machine, profiling milling machine,CNC equipment etc(such as Bystronic, Bando machine).
Advantages of metal bond diamond glass wheel
1.Accurate Aperture
2.High pass rate
3.Even smoothness
4.Long service life

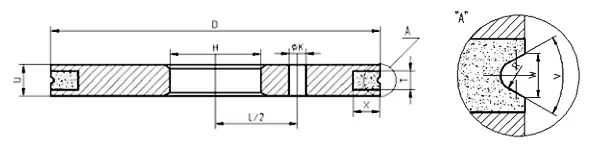

Drawing&Specification
| Type | D(mm) | T(mm) | X(mm) | Bond Agent | Diamond Grit Size |
|
1LL6Y |
150 | 5 | 10 | Metal bond |
D39-D251 |
| 175 | 5 | 10 | Metal bond | ||
| 200 | 5 | 10 | Metal bond | ||
| 250 | 5 | 10 | Metal bond | ||
| H, J, E, K, L – accords the requirements
U min= T+4 mm |
|||||
