Diamond grinding wheel for medical tools

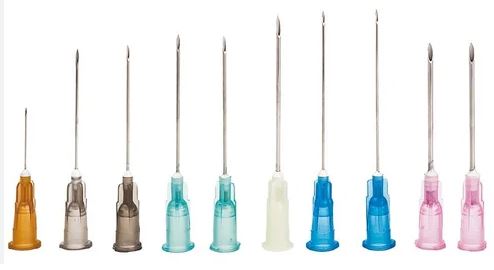

Hypodermic Needle is made from stainless steel of various gauge pipes.Our needle abrasive wheels designed in special grade for Hypodermic Needles, Blood Lancets, Infusion Sets, Dental Needles etc.
Which to remove material and leaving a burr-less finish smooth, refined finish with highly accurate tolerances.The fine grit range ensures a burr free finish to the hypodermic needle point and small bore tubes.

Key Benefits:
1. Excellent backup and technical support
2. Burr free finish
3. Shortest industry lead times
4. No-risk trial policy

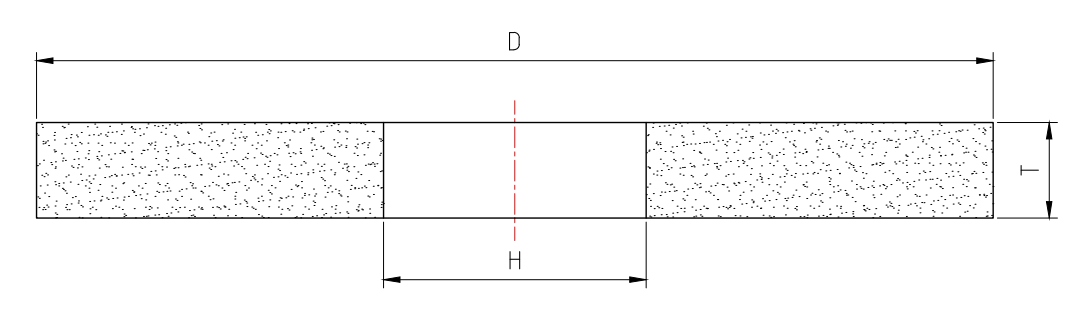

Specification of hypodermic needle grinding wheel:

Abrasive	D	T	H
DA,C, GC 400-600#	450	40	127
	455	76	127
	455	80	127
	455	100	203.2
	457	129	127
	406	127	127
	406	102	203.2
	406	150	203.2
	356	102	203.2
	300	129	127
	508	203	304.8

Grinding recommendation

Machine	Tacchella, Justur, Cincinnati
Peripheral speed(m/s)	Vs = 32 – 50 m/s
Traverse speed(mm/min)	1000-5000
Infeed	One pass/3-4 positions
Dressing	No dressing required
Comment	Coolant necessary
Grinding	Cool grinding



Scissors/Scalpel Grinding Wheel

The ultimate edge is the one in a surgeon’s or technician’s hand as they need to be precision ground and extremely sharp to make a clean cut and minimize the scar after operations. we has years of experience providing complete solutions for grinding, sharpening and polishing scalpel blades. our grinding wheel ensure highest surface quality in the finishing process.

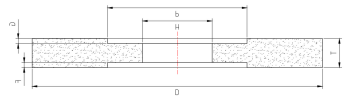

Side Grinding

D	T	H	J	W	E	N
200	90	150	188	4	17	6
200	90	150	188	5	17	6
200	90	150	188	6	17	6
250	90	150	188	8	17	6
200	90	150	188	10	15	6
200	90	150	188	15	15	6
200	90	150	188	20	22	6
200	110	150	188	5	17	6
200	110	150	188	8	17	6
200	110	150	188	20	22	6
200	120	140	190	15	20	6

Application  of  Scissors/Scalpel Grinding Wheel:

workpiece	Grinding medical scissors
Peripheral speed	Vs = 32- 40 m/s
Wet or dry grinding	For wet grinding only
Dressing	No dressing required
Machine types	Berger, Siepmann

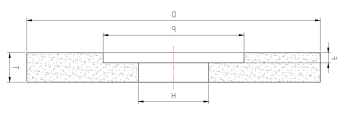

Sharpening wheels for Scissors/Scalpel:

D	T	H	V (m/s)
150	6	16	25-32
200	90	150	188

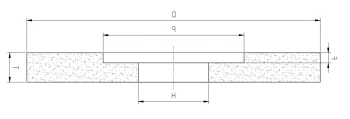

Polishing  wheels for Scissors/Scalpel:

D	T	H	V (m/s)
150	20	20	25
150	20	20	25
200	25	20	25
200	25	32	25
150	20	20	25
150	20	20	25
175	20	32	25
