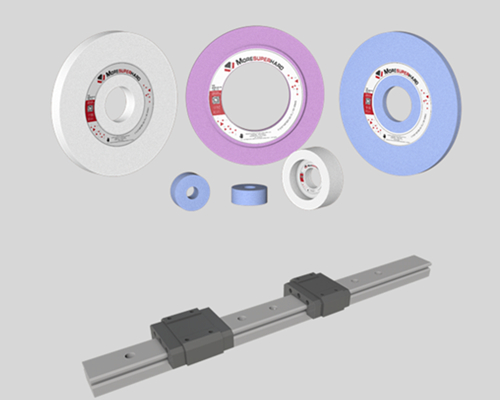

Conventional abrasive grinding wheel for linear guide rail industry

The mechanical reciprocating motion is realized by the linear guide rail, and the motion accuracy of the rolling linear guide rail depends on the manufacturing accuracy of the linear guide. Grinding is an important process in linear rolling guide machining, is of great significance to ensure the manufacturing accuracy of linear rolling guide.

The machining accuracy of the top surface, bottom surface, side and raceway on the side of the linear rolling guide rail is higher, usually after rough machining and then grinding, so that can meet the accuracy requirements.

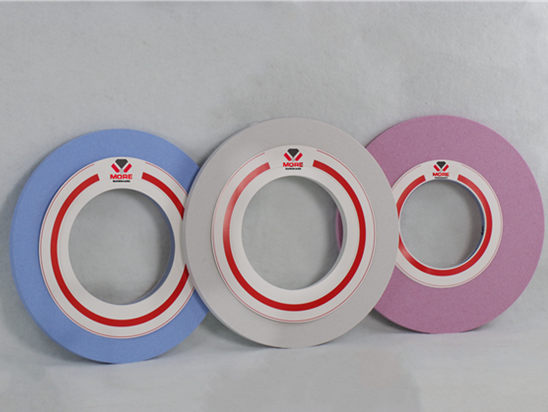

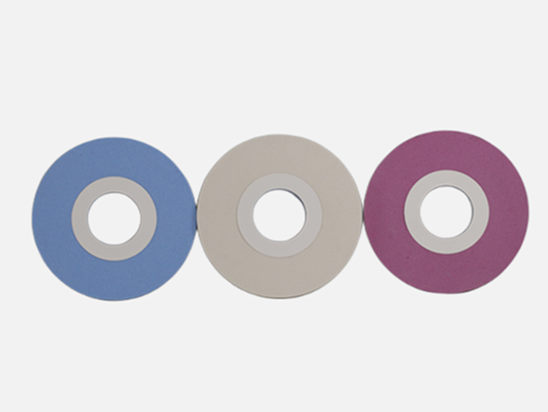

Grinding wheel for linear guide

Linear guide rail slider

Linear guide A part that can slide vertically in die – opening work. Linear rolling guide slide block is generally used for repeated movement can also accept torque, linear rolling guide slide block in the actual use is able to achieve high precision linear running work rolling linear guide slide block is an indispensable part of the linear guide rail.

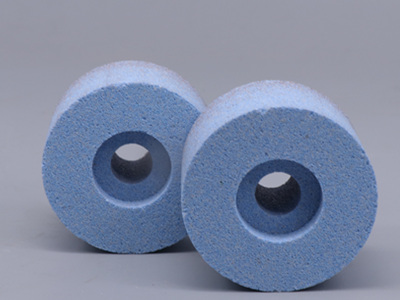

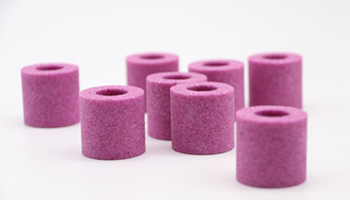

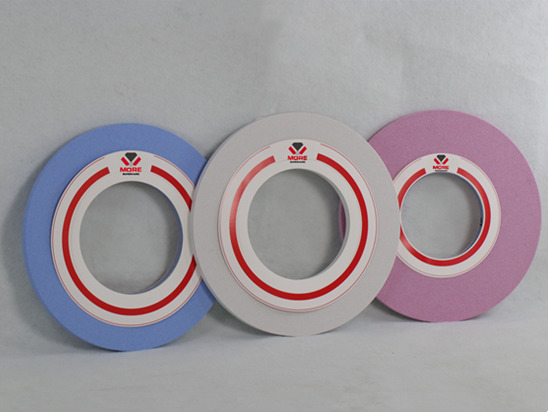

Moresuperhard can provide chrome conventional abrasive grinding wheel for grinding linear guide slider raceway , including chrome corundum abrasive grinding wheel, SG abrasive grinding wheel).

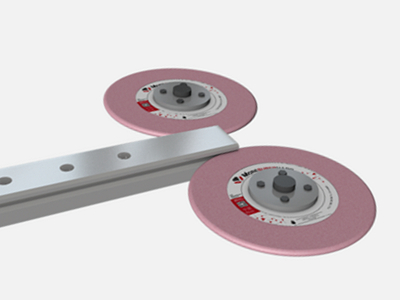

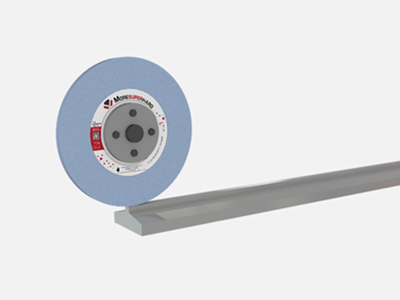

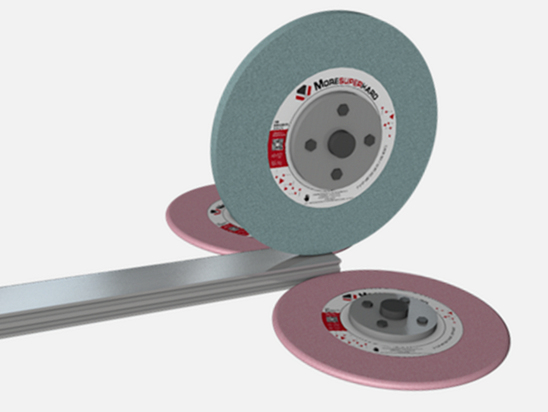

Side grinding wheel for linear guide rail
