Metal bond Diamond Dicing Blades

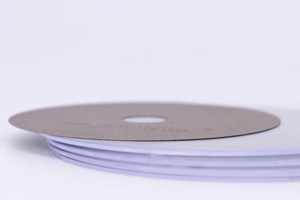

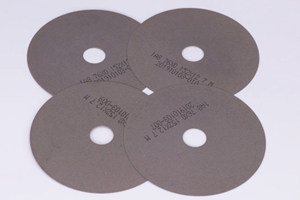

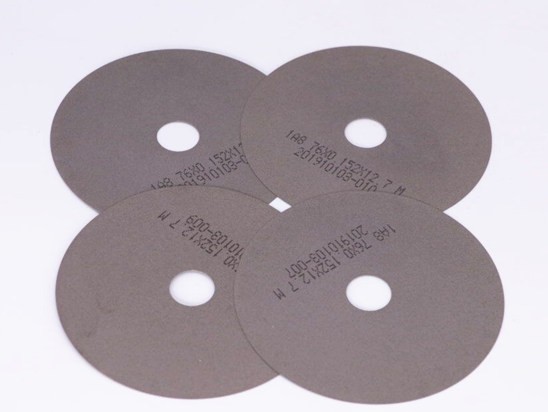

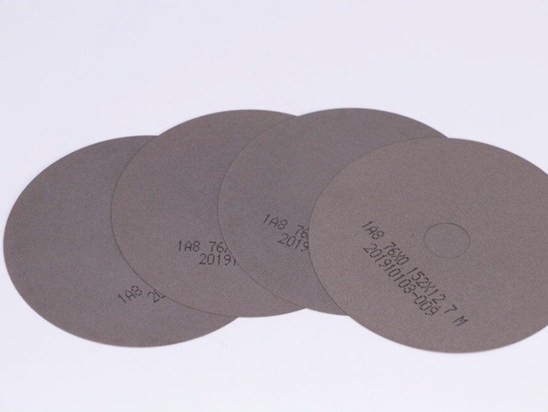

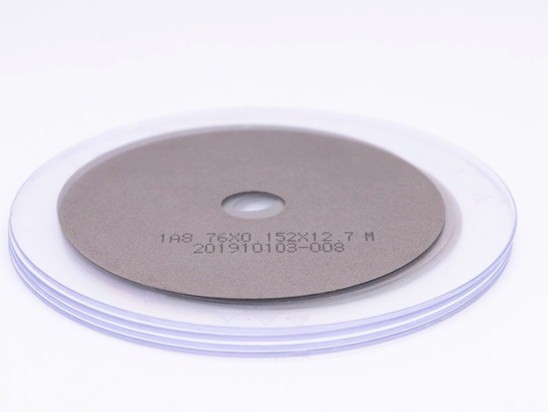

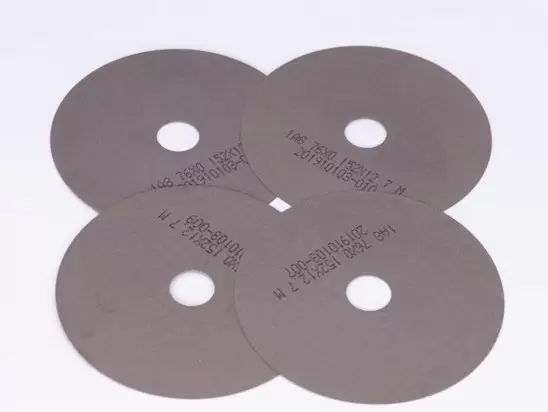

1A8 Ultra- Thin metal diamond dicing blade
Thickness of dicing blade: 0.08mm – 2mm
Application: cutting / scribing electronic parts, optical devices, semiconductor packages, BGA, CSP, ceramic, glass, crystal, etc
Product Details
Metal bond blades are using sintered metal powder as the bonding agent, have the excellent ability to hold its shape for a longer period of time, high rigidity minimized wavy and slant cutting, able to control diamond concentration to achieve cutting quality, excellent rigidity and cut quality.
How to selection of the correct types of dicing blades to cut materials
* Binder of resin bond (soft strength) dicing blade, scribing hard and brittle material
* Binder of metal bond (medium strength) dicing blade
* Binder of electroplated bond (hard bond), scribing softer material
Applications of metal diamond dicing blade
Scribing electronic parts, optical devices, semiconductor packages, BGA, CSP, ceramic, glass, quartz, crystal, etc

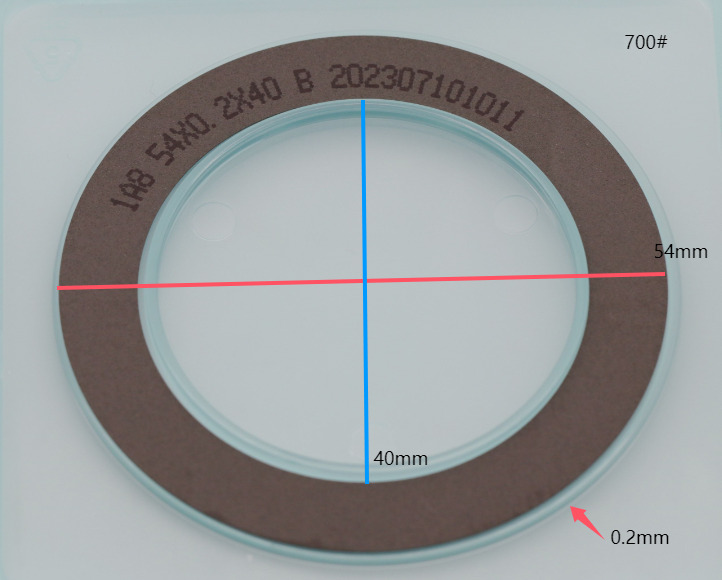

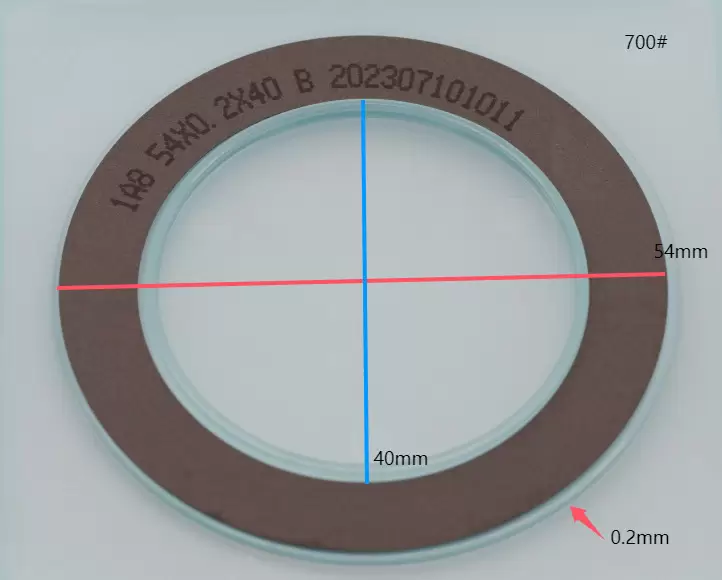

Case of metal bond diamond hubesss dicing blade for dicing quartz
| Bond of dicing blade | Metal bond diamond hubless dicing blade |
| Size | SD700 54×0.2x40mm |
| Material of workpiece | High Purity Quartz |
| Processing requirements | ①The diamond dicing blade thickness is required to be 0.19-0.2, and the final product tolerance is 0.2±0.02 |
| ②The hubless diamond dicing blade is required to be made into an arc R0.08 |
Drawing&Specification
| Grit Type | OD (mm) | ID(mm) | T(mm) | Grit Size |
| 1A8 SD / CBN | 50.8 – 125 | 40/ 55/ 75/ 88.9 | 0.075 – 0.35 | #200 – #3000 |
| Special size can be designed depending on customers’ requirement | ||||
| Workpiece | PCB Material
1.2mm thick resin containing copper layer
|
| Dicing Requirements | Cutting without burrs |
| Incision perpendicularity < 0.005mm | |
| Cutting dimensional error < 0.02mm | |
| Snake cutting is not allowed | |
| Dicing / Scribing Machine | Disco DAD3350 scribing machine |
| Diamond Dicing Blade
|
Metal Diamond Dicing Blade > |
| 58D x 0.15T x 40H (Grit 400# ) | |
| Cutting Parameters | 1. Cutting direction: Straight cutting
2. Spindle speed: 30000rpm 3. Feed speed: 50mm/S 4. Cooling water: pure water |
