metal diamond cup wheel for pcd grinding

metal diamond cup wheel for pcd grinding

Customized PCD & CBN & CVD cutting, grinding, sharpening, brazing, regrind and retipped solution and service

Bonded: vitrified bond, resin bond, metal bond

Model: diamond cup wheel (6A2, 11A2, 1A2)

Width: 3mm - 20mm

Grain Size up to super finish #3000

Cutting-edge chipping <5 μm

Send E-mail Inquiry

Product Details

PCD and CBN cutting tools are widely used in metal cutting and processing nowadays.“More Super Hard Products” devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding.

Diamond grinding wheels are used for grinding PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

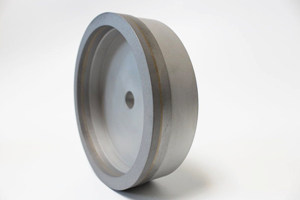

metal diamond cup wheel for pcd grinding pcd tools grinding

Drawing&Specification

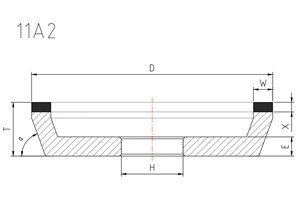

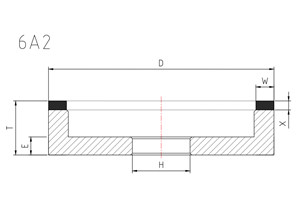

6a2 diamond wheel 11A2 diamond grinding wheel

Model	D(mm)	T (mm)	H (mm)	W (mm)	X (mm)
6A2 / 11A2	150	40	32 40	3 5 10 15 20	10
	125	40	32 40	3 5 10	10
	100	40	32 40	3 5 10 20	10
Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#)

Suitable PCD Grinding Machines: COBORN,EWAG, Anca, FARMAN, MYTECH...

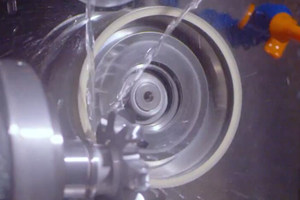

Application Example 1: PCD Inserts Grinding Vitrified Bond Diamond Grinding Wheel

Grinding machine	EWAG EasyGrind
Coolant	Emulsion
Workpiece	PCD insert (brazed, include carbide )
Grinding Parameters
Feed Rate	Vf = 2mm/min
Stock	0.3mm
Cutting Speed	Vc=15m/s
Advantage
1, 35%-time savings 2, 20% working life time increase 3, Chipping < 10μm
