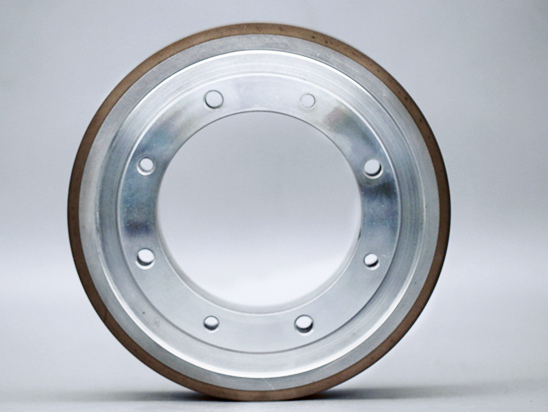

Solar Photovoltaic Glass Diamond Grinding Wheel

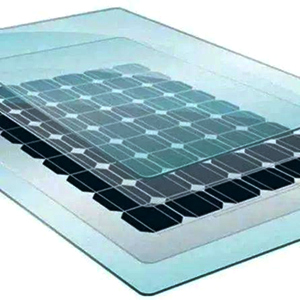

Photovoltaic glass has high light transmittance up to 92%, and its thickness is generally 3.2mm.

It is located on the outermost layer of the front of the module and receives direct sunlight in an outdoor environment. which is to use its high transmittance to provide light energy to the cell, also use its good physical properties to provide good mechanical properties for solar cell components, and protect the components from water vapor erosion, block oxygen to prevent oxidation, high and low temperature resistance, Good insulation and aging resistance, corrosion resistance.

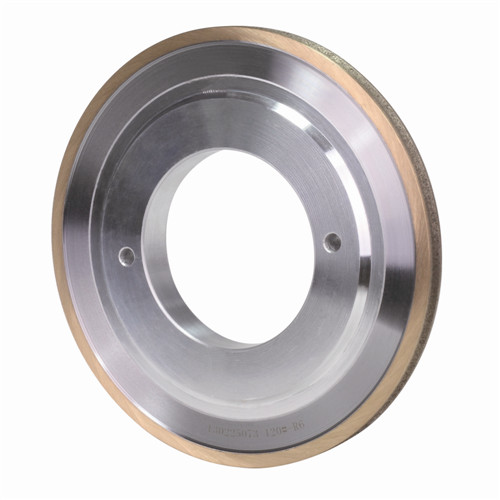

Metal Diamond Wheel mainly used for processing the four edges of rectangular glass, which is suitable for photovoltaic panel glass and home appliances glass. The thickness of the processed glass is generally 2-12mm.

Match Machine:

Solar Photovoltaic Glass Diamond Grinding Wheel can be used on high-speed double round edging machines with good results.

The current mainstream edging method is to grind the short side first and then the long side (long side with chamfering device). The edging machine is composed has short-side edging unit, steering table, long-side edging unit, and chamfering device.

The whole production has the functions of rough grinding, fine grinding, and safety corner chamfering. Currently the fastest edging machine on the market can achieve a speed of 18~22s/piece.

Advantages of  solar photovoltaic glass diamond grinding wheel:

1. High efficiency, deeper cutting depth for fast removal of uneven glass edges.

2. Good sharpness, no edge chipping while grinding.

3. Smooth glass edge after processing.

4.High groove consistency
