4A2 Diamond wheels for the cutting face and the back side of circular saw blades
4A2 Diamond wheel for sharpening saw blades
Excellent performance ratio
High material removal rates
Long lifespan
Product Details
Description of 4a2 diamond wheel for carbide saw sharpening
Moresuperhard provides Diamond and CBN grinding wheels to the saw blade industry. Widely used for for linear reciprocating motion grinding of the cutting face and of the back side of the circular saw blades.
Advantages of 4a2 diamond wheel for carbide sharpening
1. Excellent performance ratio
2. High material removal rates
3. Long lifespan

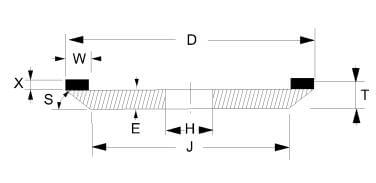

Drawing&Specification
| Shape | D (mm) | W (mm) | X
(mm) |
H
(mm) |
T
(mm) |
S |
 4A2 |
125 | 4 | 2 | 20 | 9 | 15° |
| 125 | 4 | 3 | 20 | 10 | 15° | |
| 125 | 4 | 4 | 20 | 11 | 15° | |
| 125 | 5 | 2 | 20 | 9 | 15° | |
| 125 | 5 | 3 | 20 | 10 | 15° | |
| 125 | 5 | 4 | 20 | 11 | 15° | |
| 150 | 4 | 2 | 20 | 11 | 15° | |
| 150 | 4 | 3 | 20 | 12 | 15° | |
| 150 | 4 | 4 | 20 | 13 | 15° | |
| 150 | 5 | 2 | 20 | 11 | 15° | |
| 150 | 5 | 3 | 20 | 12 | 15° | |
| 150 | 5 | 4 | 20 | 13 | 15° | |
| 200 | 4 | 1.5 | 20 | 15 | 15° | |
| 200 | 4 | 3 | 20 | 15 | 15° | |
| * other size can be customized | ||||||
