Resin Bonded Abrasives Cut Off Wheel

used on 4” to 9” angle grinder

100mm to 230mm diameter

well-received in Southeast Asia, Europe, South America&Africa, Middle East and other areas.

Send E-mail Inquiry

Product Details

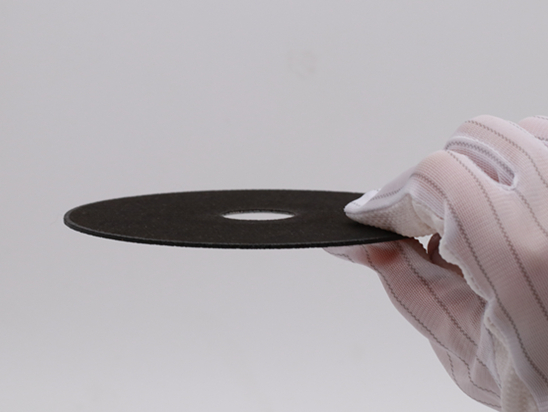

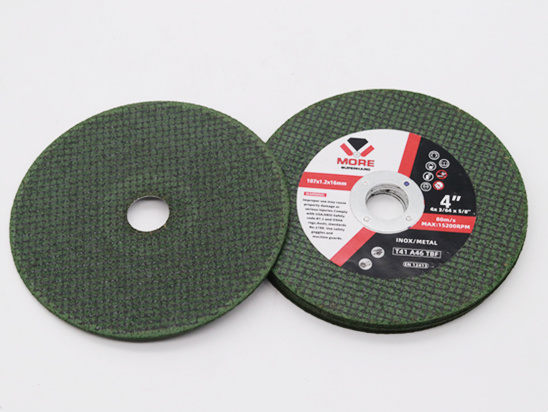

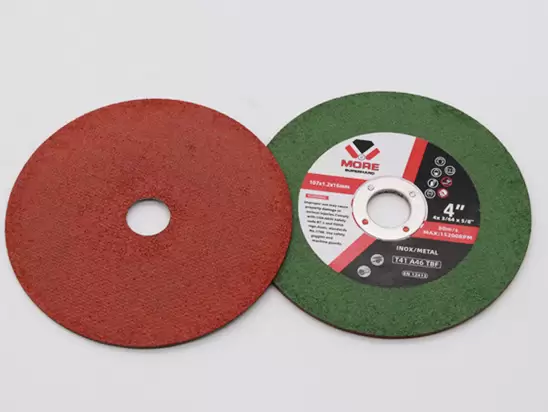

Resin abrasives cut off wheel are used on 4” to 9” angle grinder, more durable, cost-effective and well-received in Southeast Asia, Europe, South America&Africa, Middle East and other areas.

Increase side strength to ensure safer application.

2.5-3.0mm thickness is widely used for various cutting application. Have the excellent abrasive performance and extra working life for metal and stainless steel.

Advantages of resin abrasives cut off wheel：

* Low vibration and comfortable cutting

* High stability

* Fast cutting

Case of DC grinding/cutting wheel for cast iron

Moreusperhard meet one customer, who want to grinding the weld or nozzle of the cast iron,lets see the requirements together:

Workpiece	Cast iron
Size of DC wheel	4” 2000pcs
	7” 5000pcs
	9” 1500pcs
Size of Gr wheel	*40050152 500pcs*
Requirements of customer	Need OEM service, Moresuperhard can provide OEM service

Drawing&Specification

SIZE	MAX RPM(m/s)	SPEED M/S	PCS/BOX	PCS/CTN
100×2.5x16mm	15200	80	25	200
115×2.5×22.2mm	13300	80	25	200
115×3.0x22.2mm	13300	80	25	200
125×2.5×22.2mm	12200	80	25	200
150×2.5×22.2mm	10200	80	25	200
150×3.0x22.2mm	10220	80	25	200
180×2.5×22.2mm	8600	80	25	200
180×3.0x22.2mm	8600	80	25	100
230×2.5×22.2mm	6600	80	25	100
230×3.0x22.2mm	6600	80	25	100
