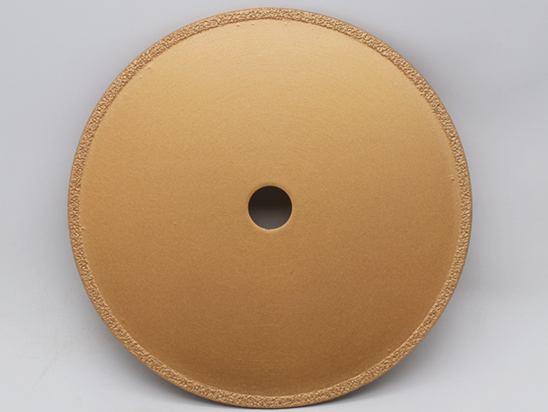

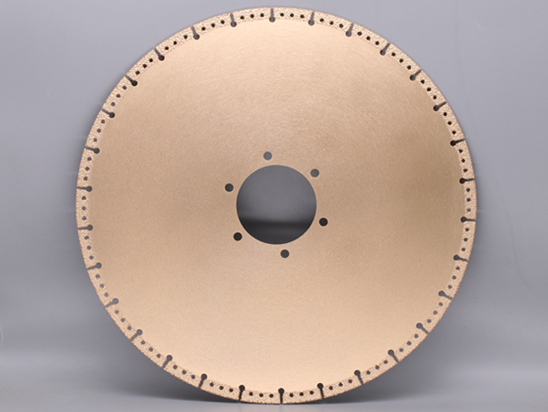

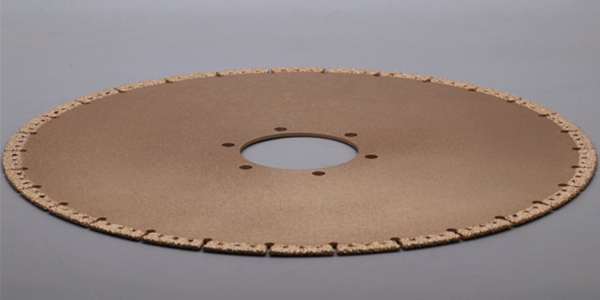

Vacuum Brazed Diamond cutting disc
Fast cutting cast iron, ductile iron pipe, grey iron,steel bar, rubber, stainless steel,ferrous, non-ferrous, etc
High efficiency, sharp cutting, environment friendly
Fast cutting with nice edge finishing
Diameter: 100mm-500mm, support customize
Dry or wet cutting
Product Details
Moresuperhard vacuum brazed dianmond blades adopt vacuum brazing technique, the toughness of diamond can be exloited fully, every diamond grit receives reasonable strength, making the diamond blades sharp and durable.
Application of Vacuum Brazed Diamond cutting blade
Vacuum brazed blades are suitable for cutting cast iron, grey iron, granite, aluminum, stainless steel, copper pipe, ductile cast pipes, steel rails,etc…
Advantages of vacuum brazed diamond blades
* High efficiency, sharp cutting, environment friendly
* Fast cutting with nice edge finishing

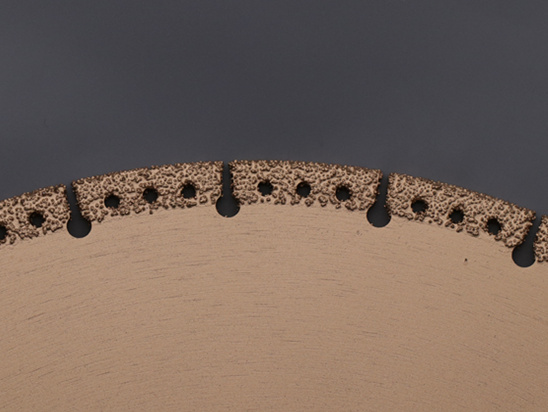

* The saw blade has a hole design, which can effectively dissipate heat, reduce noise and work efficiently
Drawing&Specification
Specification of vacuum brazed diamond cutting blades
| Specification | Application | Applied Machine |
| Φ100*16*1.2 | Cutting steel bar, thin wall pipe, color steel tile | Φ100 hand-held grinder |
| Φ125*22.23*1.5 | Φ125 hand-held grinder | |
| Φ150*22.23*2.5 | Cutting and grinding casting risers and burrs of grey iron and ductile iron | Φ150 hand-held grinder |
| Φ180*22.23*2.5 | Φ180 hand-held grinder | |
| Φ230*22.23*2.5 | Φ230 hand held grinder | |
| Φ350*32*2.5 | Cutting casting risers of grey iron and ductile iron, building profiles, ductile cast pipes, steel rails, etc | profile cutting machine |
| Φ400*32*2.5 | ||
| Φ500*32*2.9 | ||
| Φ400*32*2.9 | 304 stainless steel and etc. precision casting steel castings | semi-auto cutting machine and auto cutting machine |
