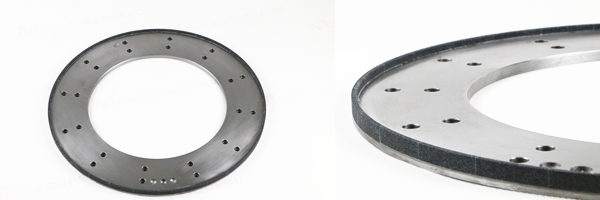

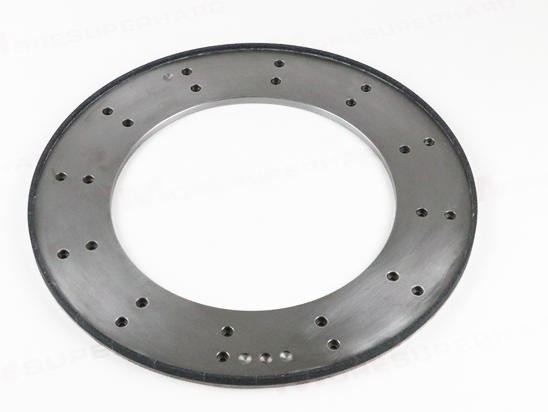

Vit CBN Grinding Wheel for Cleaning Up the End of Shaft
Model: 1A9 Vitrified CBN Wheel
Size: 396mm * 13mm *254mm * 3mm *5mm 120 / 140
Application: used to clean up the end of shaft in Automotive
Product Details

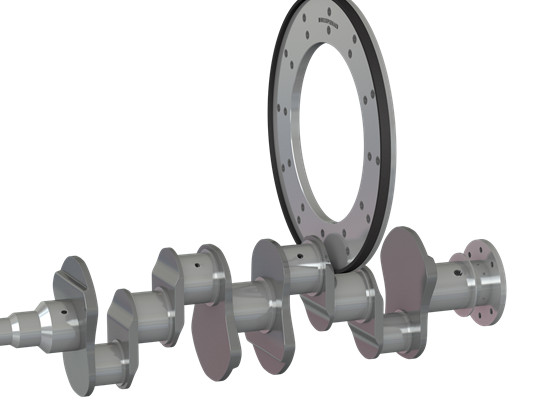

Vitrified CBN grinding wheel is used to clean up the end of a shaft in Automotive
Advantages of Vit CBN Grinding Wheel
* Special bolt holes design.
* Perfect dimension and look good.
* High quality and low price. The fast delivery time

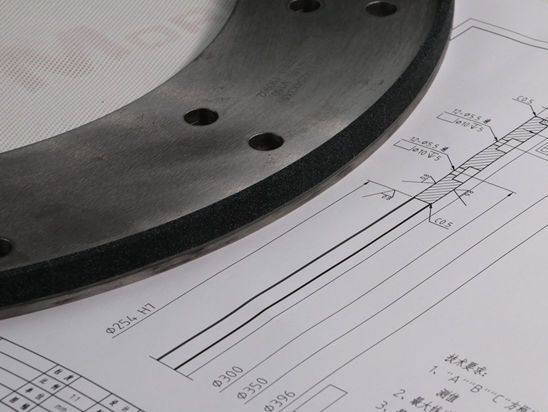

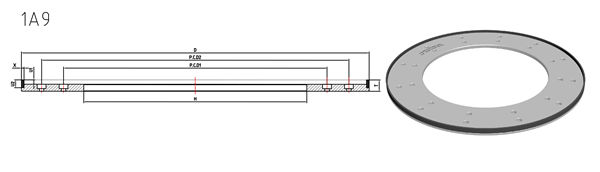

Drawing&Specification
| Model | 1A9 396mm * 13mm *254mm * 3mm *5mm |
| Stock Removal | max 0.2mm |
| Surface Finish | 0.2 Ra. |
| The Surface Hardness of the Body | 700 to 800 Hv |
| Cutting Speed | 55M/sec |
| Feed Rate | 1mm/min |
| Cutting Depth | 0.070mm |
| The heat treatment is low pressure carborising and the material is M12-022A | |
