Vitrified diamond and CBN grinding wheel

The vitrified bond diamond grinding wheel has high strength, good heat resistance, sharp cutting, high grinding efficiency, not easy to heat and block during grinding, small thermal expansion, and easy to control the machining accuracy.

Application of vitrified / ceramic diamond grinding wheel
Ceramic diamond grinding wheels for brittle and hard materials. such as grinding PCD/PCBN, diamond and diamond-like materials, carbides, cermets, engineering ceramics, optical glass, crystals, gemstones, composite materials

Vitrified CBN grinding wheel
Grinding High Speed ​​Tool Steel, Tool or Die Steel, Hardened Carbon Steel, Hardened Stainless Steel, Alloy Steel, Aerospace Alloys, Chilled Cast Iron, Powder Metal, Zirconia/Alumina.

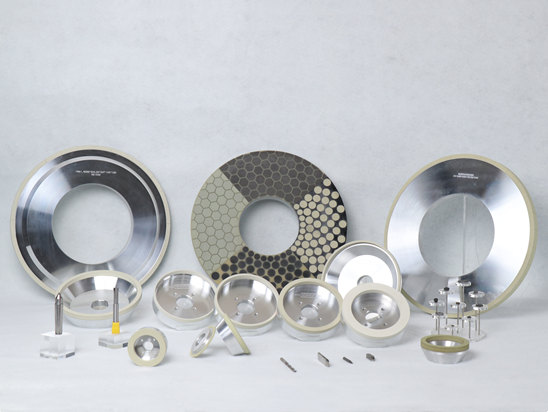

Moresuperhard produce various type vitrified diamond and CBN grinding wheel for different industries parts grinding, including cutting tool industry , oil and gas imdustry, diamond and jewelery industry, semicomductor industry, lapping industry , thermal spray industry, etc.

Cutting tools industry
Morsuperhard provide 6A2, 6A2M, 6A2BT, 11A2, 2A2T vitrified peripheral diamond grinding wheel for grinding PCD indexable inserts, can match WENDT, WAIDA, AGATHON, EWAG, COBORN, etc grinding machine.

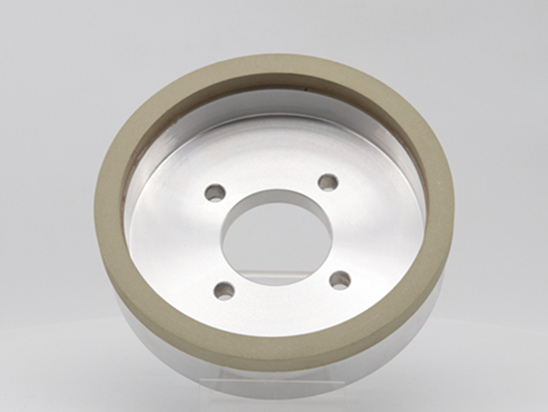

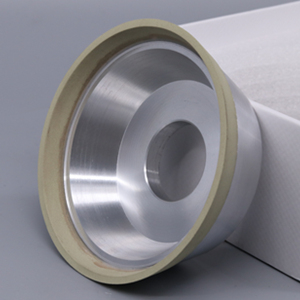

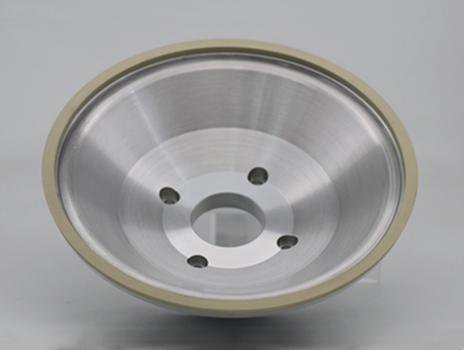

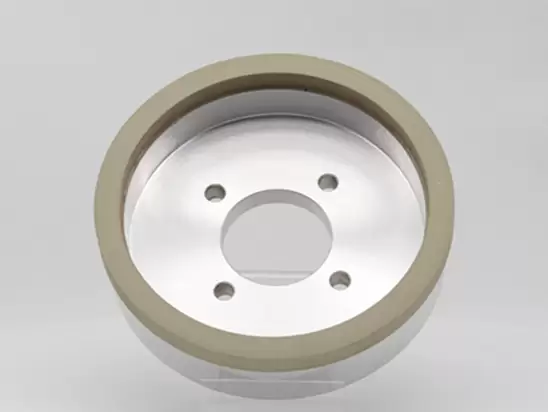

Diamond cup wheel for PCD/CBN cutting tools

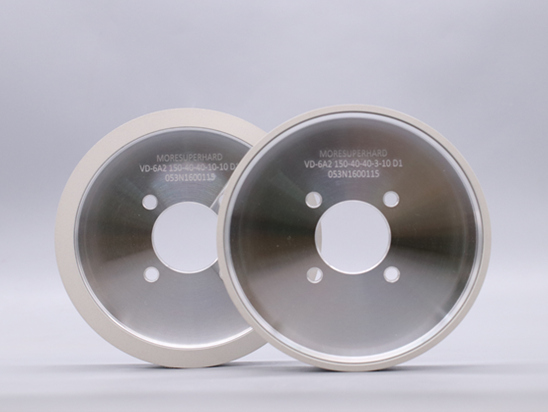

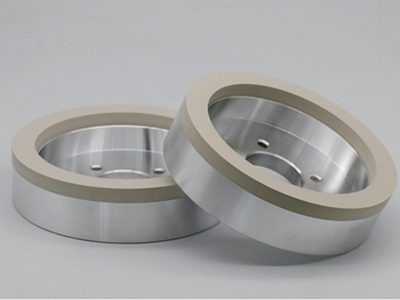

Moresuperhard provide 6A2, 11A2 vitrified diamond grinding wheel, especially for PCD/PCBN tools’ rough, medium, semi-finish and finish grinding.

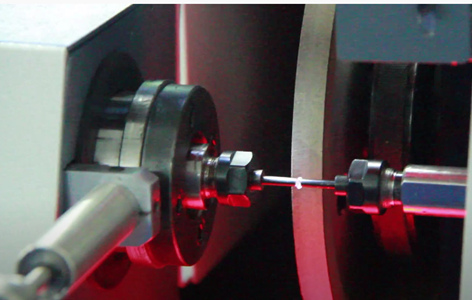

14A1 Cylindrical vitrified diamond grinding wheel is used for PCD tools(PCD profile cutters, PCD reamers and PCD milling cutters) grinding with large cylindrical grinding machines.

MCD cutting tools grinding wheel

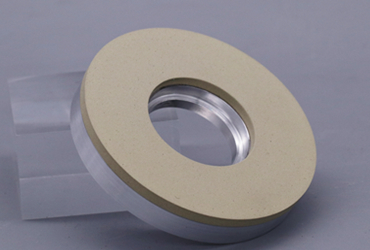

Moresuperhard provide 1A2, 6A2 vitrified diamond grinding wheel for precision grinding single crystal diamond, with Ultra-high precision.
Moresuperhard rough grinding wheel has successfully matched Coborn RG5 and RG9A, EWAG-RS15,FC-200D, MT-188，MT198NC, and other domestic brands diamond PCD tool grinder.

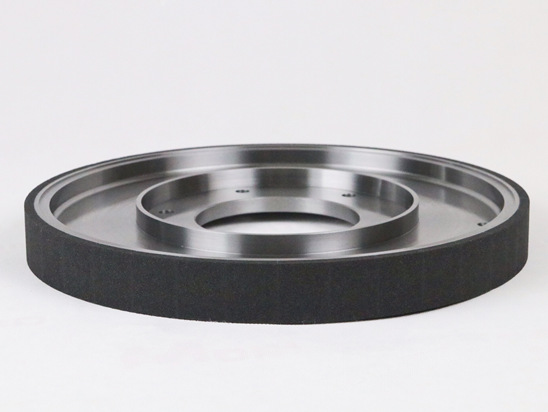

Vitrified diamond grinding wheel for thermal spraying coating

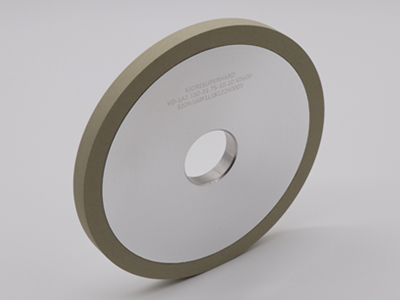

1A1 vitrified diamond grinding wheel for HVOF coating grinding,used for cylindrical grinding of tungsten carbide coating in thermal spraying industry.

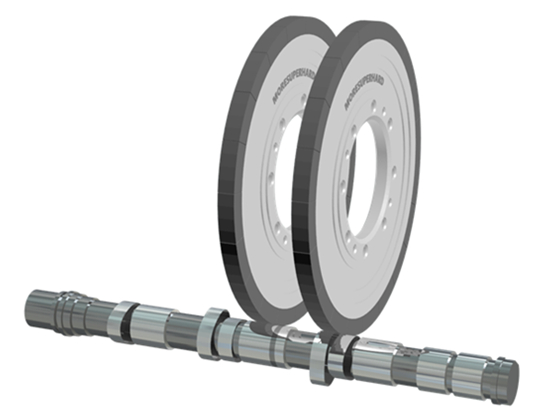

Vit CBN Grinding Wheel for automobile industry

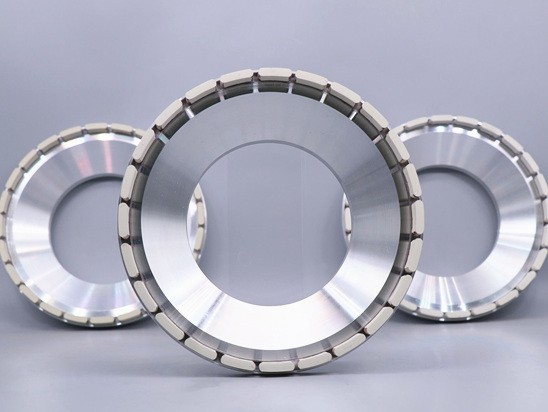

1A1, 1A9 Vitrified bond CBN Grinding Wheel is suitable for precise and high-speed grinding the camshaft, crankshatf, gear shaft and crankpin, main journal, flange neck, thrust face and end face.

Oil and gas industry

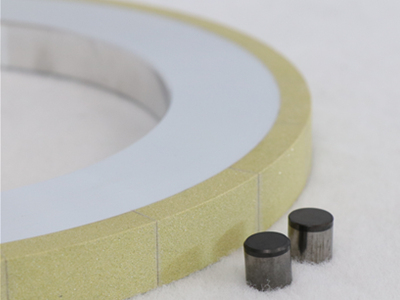

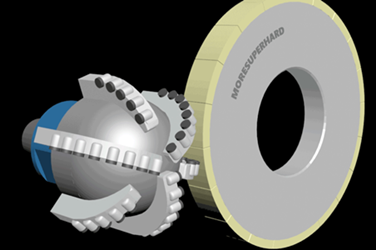

1A1 vitrified Diamond cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved.

Diamond Jewelry Industry
Moresuperhard 1A1 vitrified diamond bruting wheel for polishing and bruting natural diamonds, gemstone, jewel, agate.
Can match Bruting Machine: EOS Bruting Machine, Adri Machines And Discron Machine, Etc.

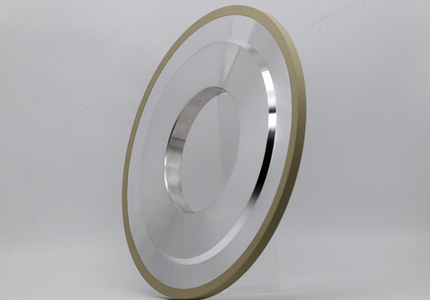

PCB PCD v-cutter
Moresuperhard 6A2 vitrified diamond grinding wheel can  high efficiency grinding PCD v-cut cutter, the  good surface finish and high precision of PCB can be achieved after grinding.

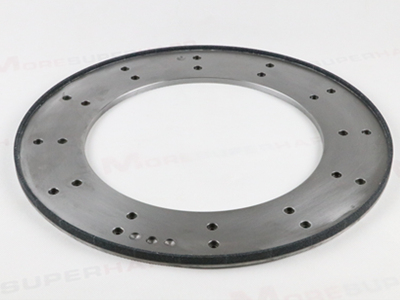

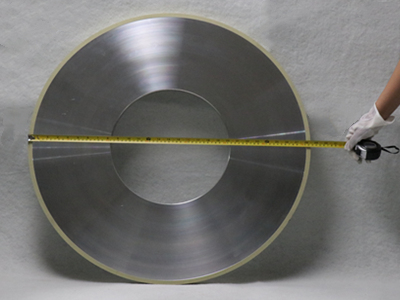

Dimond /CBN Double disc  grinding wheel

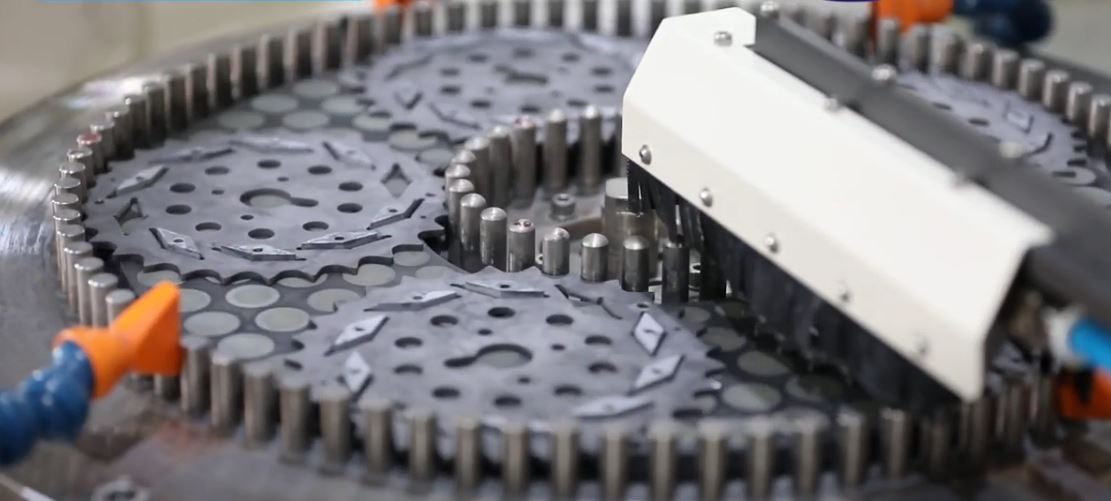

1A2T,6A2B Vitrified diamond/ CBN Double disc grinidng wheel with high grinding efficiency, high wear resistance and abrasive consumption, good surface quality and flatness of the workpiece.

Semiconductor Industry

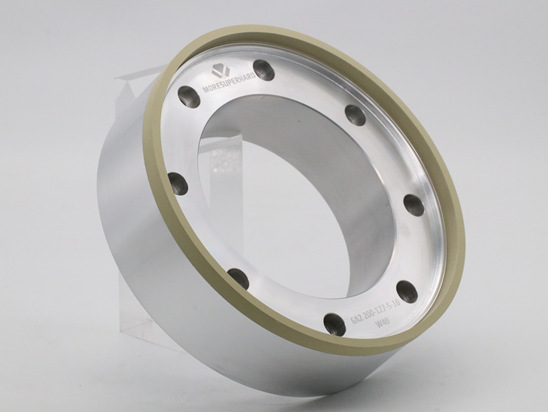

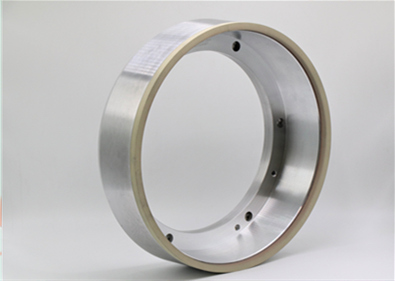

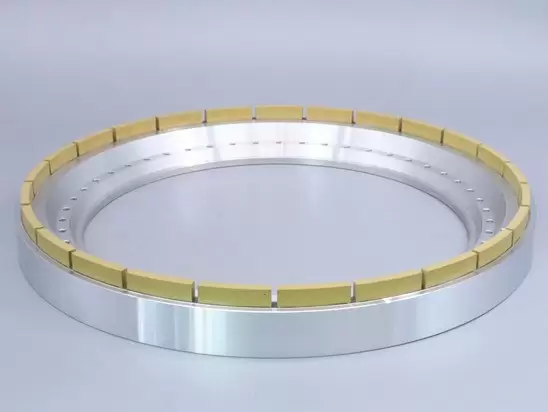

6A2, 6A2H,6A2T vitrified diamond back grinding wheel for back thinning, front grinding and fine grinding of discrete devices, integrated circuit substrate silicon wafers, sapphire epitaxial wafers, silicon wafers, arsenide, GaN wafers, silicon-based chips, etc

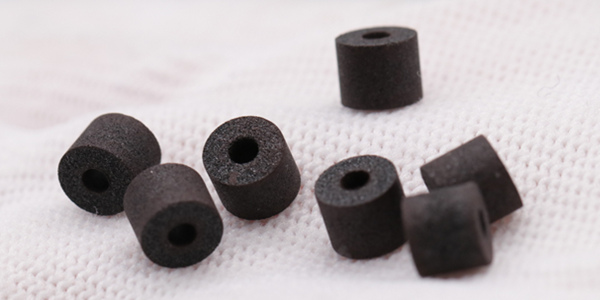

Internal grinding wheel

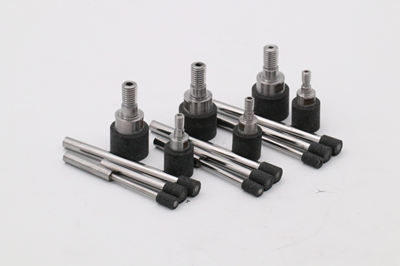

Moresuperhard have two types intenral grinding pins:  with shank and without shank.
Type of CBN intenral mounted pins : 1A8, 1A1W, 1A1
