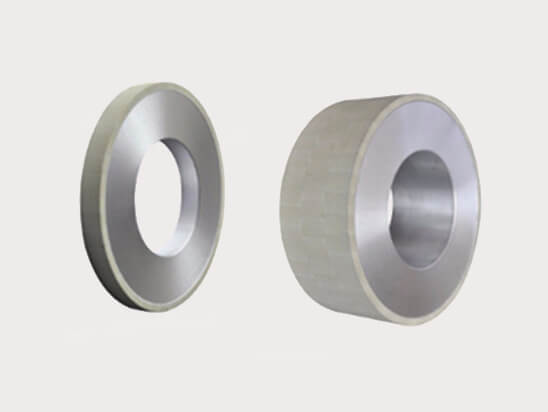

Vitrified diamond grinding wheels for rough, precision grinding of PDC Cutter
High grinding efficiency
Good surface finish
Long lifespan
Vitrified diamond wheels are used for rough and precision grinding the Cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, vitrified bond wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved (from ±0.03mm to ±0.01mm).
Application of diamond centerless grinding wheel
For rough and precision grinding the Cylinder of PDC cutter.
Advantages of diamond grinding wheel for pdc cutter
1.High grinding efficiency
2.Good surface finish
3.Long lifespan
Rough grinding of PDC cutter

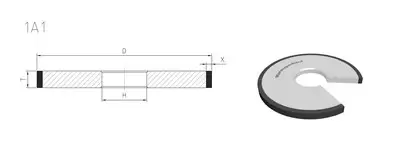

Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 |
200 | 50 | 75 | 10 |
250 | 50 | 75 | 10 | |
300 | 50 | 127 | 10 | |
350 | 50 | 127 | 10 | |
400 | 50 | 203 | 10 | |
450 | 50 | 228.6 | 10 | |
500 | 50 | 305 | 10 | |
Other sizes can be customized. |
Precision grinding of PDC cutter
Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1
6A1 9A1 |
200 | 50 | 75 | 10 |
250 | 100 | 75 | 10 | |
300 | 100,150 | 127 | 10 | |
350 | 125,150 | 127 | 10 | |
400 | 150,300 | 203 | 10 | |
450 | 150,200,300 | 228.6 | 10 | |
500 | 150,200 | 305 | 10 | |
Other sizes can be customized. |
