12A2 Diamond Grinding Wheel
Application of 12A2 Diamond grinding wheel :sharpening and finishing of front surface of reamer teeth,hobbing cutters,circular saws,drawing dies and tools made of hard alloys. Many customers from foreign countries (such as USA,,UK,Thailand,India) purchase our 12A2 wheels to grind tungsten carbide tools ,they achieve good working performance.

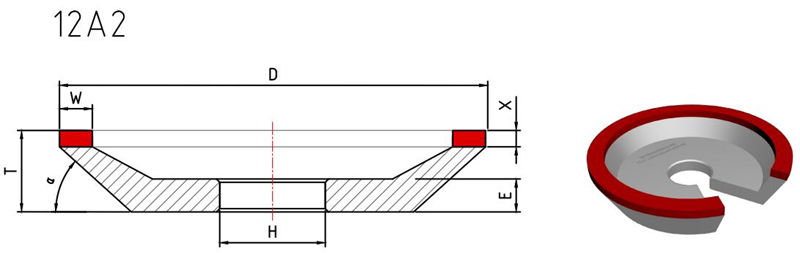

| Model | D (mm) | W (mm) | T (mm) | E (mm) | K (mm) | J (mm) | X (mm) |
| 12A2 | 50 | 3, 4 | 6 | 4 | 27 | 17 | metal bond diamond wheel: 1-3
resin bond diamond wheel: 2-4
vitrified bond diamond wheel: 3-10 |
| 5, 6 | 23 | ||||||
| 75 | 3, 4 | 8 | 5 | 52 | 37 | ||
| 5, 6 | 48 | ||||||
| 10 | 40 | ||||||
| 100 | 3, 4 | 10 | 6 | 70 | 51 | ||
| 5, 6 | 66 | ||||||
| 8, 10 | 58 | ||||||
| 125 | 3, 5 | 14 | 8 | 78 | 54 | ||
| 6, 8 | 72 | ||||||
| 10, 12 | 64 | ||||||
| 150 | 5, 6 | 16 | 9 | 93 | 68 | ||
| 8, 10 | 86 | ||||||
| 12, 15 | 80 | ||||||
| 175 | 5, 6 | 18 | 10 | 111 | 82 | ||
| 10, 15 | 93 | ||||||
| 200 | 5, 6 | 20 | 11 | 128 | 96 | ||
| 10, 15 | 110 | ||||||
| 250 | 3, 5 | 23 | 13 | 173 | 129 | ||
| 6, 10 | 163 | ||||||
| 15 | 143 | ||||||
| Other size can be made according to customers requirement. | |||||||
