14EE1 diamond grinding wheel
14ee1 grinding wheels For glass,crystal,outside threading and grinding.Grinding of profiled details made of hard alloyes and other hard to process materials.
Application of 14EE1 diamond and CBN grinding wheel:
14EE1 diamond grinding wheel for cutting and grinding external and internal threads, profile grinding of shaped surfaces made of hard alloy, high-speed alloyed high-strength steels and other hard-to-machine materials, processing of industrial and decorative glass, crystal.

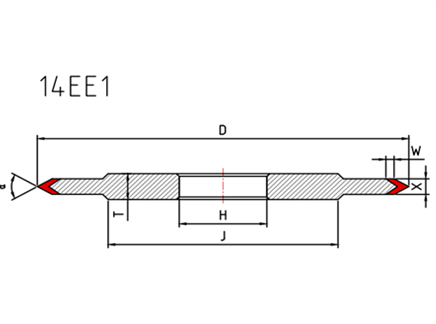

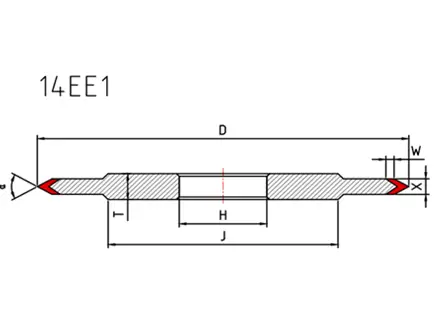

Specification of 14EE1 diamond grinding wheel:
| D-Outer diameter(mm) | T-Overall thickness(mm) | H-hole diameter(mm) | U-Abrasive thickness(mm) | V-Wheel angle | X-Abrasive width(mm) |
| 75 |
6-20
|
20/25.4/31.75/32 |
1-5 |
20°， 30° 40°， 45° 50° ，60°
|
6-10 |
| 80 | 19.05/20/25.4 | ||||
| 100 | 20/25.4/31.75/32 | ||||
| 125 | 31.75/32 | ||||
| 150 | 25.4/31.75/32 | ||||
| 180 | 31.75/32 | ||||
| 200 | 31.75/32 | ||||
| Other specifications can be customized according to your requirements | |||||
