14F1 diamond grinding wheel
14F1 Diamond grinding wheel used for machining of conical,cylindrical and flat surface,cylindrical and conical aperatures and sharpening and finishing of hard alloyed tools.

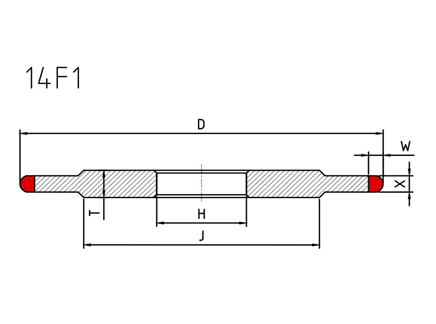

| Model | D (mm) | U (mm) | T (mm) | J (mm) | X (mm) |
| 14F1 | 50 | 2, 3, 4 | 6 | 30 | 2.5, 3, 4, 5 |
| 75 | 2, 3, 4 | 6 | 50 | ||
| 100 | 2, 3, 4 | 6 | 50 | ||
| 125 | 2, 3, 4 | 6 | 70 | ||
| 150 | 2, 3 | 6 | 100 | ||
| 4, 5 | 6, 8 | 120 | |||
| Other size can be made according to customers requirement. | |||||
