4BT9 grinding wheels
4BT9 shape grinding wheel is used for tools face grinding. Diamond wheel is used for grinding tungsten carbide tipped tools and saws. CBN grinding wheel is used for grinding the circular saws and band saws made for HSS, tool steel, and other materials.

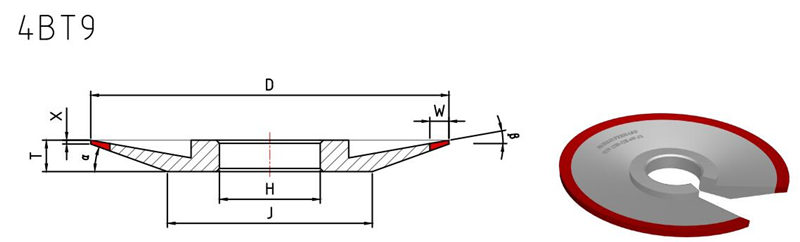

| Model | D (mm) | T (mm) | X (mm) | W (mm) | H (mm) | J (mm) |
| 4BT9 | 75 | 8 | 1， 2 | 10 | 20 – 32 | 36 |
| 100 | 8， 10 | 1， 2 | 6， 10 | 20 – 40 | 50 | |
| 125 | 10，12 | 1， 2 | 10 | 20 – 40 | 65 | |
| Other size can be made according to customer requirements. Email: info@moresuperhard.com | ||||||
