4A2 diamond grinding wheel
Diamond and CBN grinding wheels for woodworking industry.
Application: used for top, face and side grinding the circular saw blades and band saws (made of tungsten carbide, cermet and pcd) , woodwork drills and mills.

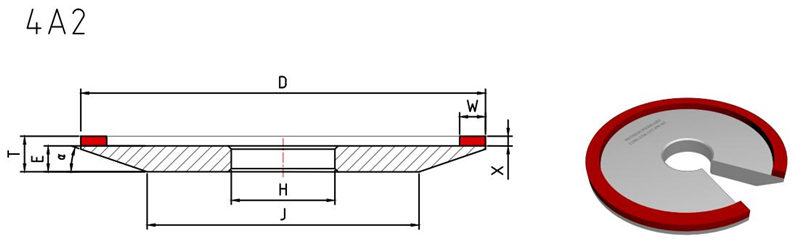

| Model | D (mm) | W (mm) | X (mm) | E (°) | J (mm) |
| 4A2 | 50 | 3, 4 | 1, 2, 3, 4 | 6 | 20 |
| 5, 6 | 6 | 20 | |||
| 75 | 3, 4 | 6 | 45 | ||
| 5, 6 | 6 | 70 | |||
| 100 | 3, 4 | 6 | 70 | ||
| 5, 6 | 6 | 70 | |||
| 125 | 3, 5 | 7 | 70 | ||
| 6, 7 | 7 | 88 | |||
| 8, 10 | 7 | 88 | |||
| 150 | 3, 4 | 9 | 98 | ||
| 5, 6 | 9 | 98 | |||
| 8, 10 | 9 | 98 | |||
| 175 | 5, 10 | 11 | 107 | ||
| Other size can be made according to customer requirement . Email: info@moresuperhard.com | |||||
