9A3 Diamond Grinding Wheel
9A3 Diamond grinding wheel used for sharpening and finishing of hard alloyed tools,maching of glass, ceramic,quarts,semi-conductors，tungsten carbide cuttingtools，etc…
Resin bond diamond grinding wheel has high strength, high elasticity and low porosity, suitable forhigh-speed grinding of v>50m/s, and can be made into thin-film grinding wheel for groove grinding, cutting, etc. 9A3 resin diamond grinding wheel can grind grooves and axles, and also greatly improves the grinding efficiency.

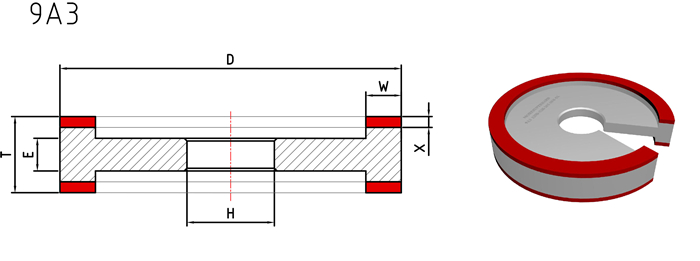

| Model | D (mm) | W (mm) | T (mm) | X (mm) | |
| 9A3 | 100 | 4, 5 | 22 | metal diamond wheel | resin diamond wheel |
| 6, 8 | 1.5, 2, 3 | 2, 3 | |||
| 10 | |||||
| 125 | 4, 6 | 22 | |||
| 8, 10 | |||||
| 150 | 4, 6 | 25, 35 | |||
| 8, 10 | |||||
| 12, 15 | |||||
| 175 | 4, 6 | 25, 35 | |||
| 8, 10 | |||||
| 12, 15 | |||||
| 200 | 8, 10 | 30, 35 | |||
| 12, 15 | |||||
| Other size can be made according to customers’ requirement. | |||||
